Hydraulic pipe bending machine with CE certification

Product Details:

Payment & Shipping Terms:

Contact Now

Detailed Product Description

High Light:

pipe bending machine

Servo Motor:MITSUBISHI
Electric:Schneider
CNC System:IPC MITSUBISHI
Hydraulic Parts:Yuken Japan
CNC Pipe Bending Machine

CNC Automatic Pipe Bending Machine.

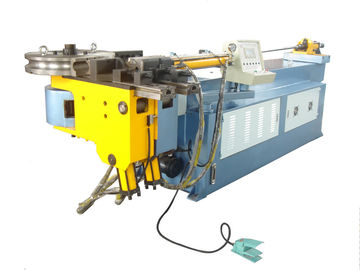

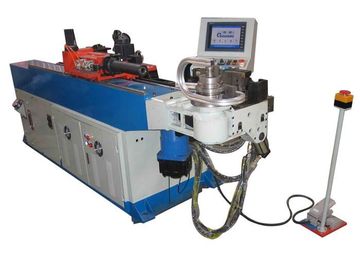

SB-38CNC Tube Bending Machine

Descriptions:
- Fully automatic and high precision&cost effective CNC pipe bender
- Equipped with 3 programmable axis
- Feeding: Servo Motor
- Rotation: Servo Motor
- Bending: Servo Motor
Standard with:
- Pressure die assist for every bending stack
- Mandrel lubricating system
- Wiper, clamping and pressure die seats
- Centralized greasing system for moving areas
- The machine head could up-down and left-right moving
- Electric cabinet cooling fan
- IPC control system
- CNC 3 servo controlled tube bender
- Fully automatic, high precision and cost effective

Specification:

Items	Unit	Data
Max. Capacity OD x WT (Mild Steel)	mm	φ38.1x2
Min. Bending Radius	mm	15
Max. Bending Radius	mm	180
Max. Bending Angle	°	190
Bending Speed (Max.)	°/Sec	120
Feeding Speed (Max.)	mm/Sec	1000
Rotation Speed (Max.)	°/Sec	200
Bending accuracy	°	±0.1
Feeding accuracy	mm	±0.1
Rotation accuracy	°	±0.1
Standard Length Over Mandrel	mm	2000
Main Control System	--	CNC/IPC
Hydraulic Control System	--	Solenoid Valve
Bending Servo Motor	KW	5
Motor Power	KW	5.5
Hydraulic Pressure Power	Mpa	12
Size	mm	3850x1100x1350
Weight	KG	2500

PS:OD:Outside Diameter,WT: Wall Thickness.

Tooling accessory: Former Die,Pressure Die,Clamp Die,Wiper Die(Optional),Ball Mandrel(Optional).

We design and manufacturing the tooling according the tube's specification,so the customer should send us the following tube's specification details:Tube's material and Outside Diameter,Wall Thickness,Bending Radius.-THIS IS VERY IMPORTANT!
The Min./Max. bending radius could be made to order according the customer's special requirement.
The length over mandrel could be made to order according the customer's special requirement.
