Place of Origin: | China |
Brand Name: | GHKAIL |
Size: | 250mm -- 425mm |
---|
Payment Terms: | L/C,T/T,Paypal |
---|
Highlight: | cermet saw blades |
---|

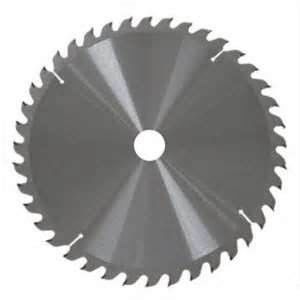

Cermet-Tipped for Cold Circular Saw Automats
Cermet is a composite material composed of ceramic and metallic materials. A cermet is ideally designed to have the optimal properties of both a ceramic, such as high temperature resistance and hardness, and those of a metal, such as the ability to undergo plastic deformation. Cermets are being used instead of tungsten carbide in saws and other brazed tools due to their superior wear and corrosion properties.
• This series is used on automatic cold saw machine, for cutting iron and mild steel solid bars.
• Notched type teeth with breaker enable truly cold cutting, no heat transferred to the saw body or the metal material.
Size available as follows:
Code | D(mm) | B/b(mm) | H(mm) | Pin Hole | Z |
SW3011 | 250 | 2.0/1.75 | 32 | 4/9/50 + 4/11/63 | 60 |
SW3012 | 250 | 2.0/1.75 | 32 | 4/9/50 + 4/11/63 | 80 |
SW3021 | 285 | 2.0/1.75 | 32 | 4/9/50 + 4/11/63 | 60 |
SW3031 | 315 | 2.25/2.0 | 32 | 4/11/50 + 4/11/63 | 80 |
SW3032 | 315 | 2.25/2.0 | 40 | 2/12/65 + 2/15/80 | 80 |
SW3041 | 360 | 2.6/2.25 | 40 | 2/12/65 + 2/15/80 +4/11/90 | 80 |
SW3042 | 360 | 2.6/2.25 | 50 | 4/16/80 | 60 |
SW3043 | 360 | 2.6/2.25 | 50 | 4/16/80 | 80 |
SW3051 | 420 | 2.6/2.25 | 40 | 2/12/65 + 2/15/80 | 80 |
SW3061 | 425 | 2.6/2.25 | 50 | 4/16/80 | 80 |
