High Performance 45mm 2" H25 Cross Bits Steel CNC Drill Bits

Product Details:

Place of Origin:	China
Brand Name:	MIROC
Model Number:	4148300314-4148300323

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	negotiation
Packaging Details:	Carton Box or Wooden Box
Delivery Time:	25 days
Payment Terms:	T/T or L/C
Supply Ability:	20000 pieces per month

Contact Now

Detailed Product Description

Highlight:	metal drill bit

High Performance 45mm 2" H25 Cross Bits Steel CNC Drill Bits

Description

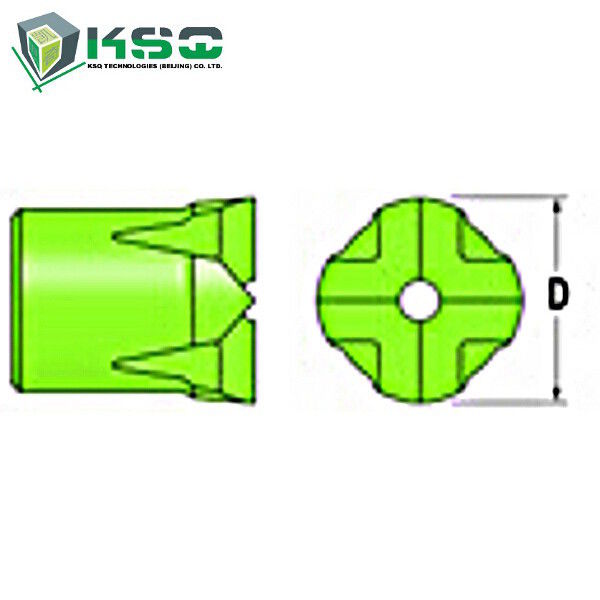

Cross type bit with steel inserts using H25 thread system. It has a slow penetration rate but it produces a very straight drill hole.

• Steel inserts
• Widely used in dimensional stone industry, drifting and tunneling

Color: Green,Blue or Based on Customer requirements

Material: Tungsten carbide and high strength alloy steel

Processing: CNC milling and proprietary heat treatment process

Type: H25 H-thread Steel Cross Type Bit

Applications

• Dimensional Stone Industry
• Underground Mining
• Tunneling

Competitive Advantage

• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment

specification

Part Number	Product Code and Brief Description	Bit Diameter (mm)	Bit Diameter (inch)	Tip Size (W x H, mm)	Front Flushing drill holes	Side Flushing drill holes	Weight (kg)
4148300314	CRS45-H25, H25 H-thread Steel Cross Type Bit	45	1 7/9	-	1	4	0.3
4148300315	CRS48-H25, H25 H-thread Steel Cross Type Bit	48	1 8/9	-	1	4	0.4
4148300316	CRS51-H25, H25 H-thread Steel Cross Type Bit	51	2	-	1	4	0.42
4148300317	CRS57-H25, H25 H-thread Steel Cross Type Bit	57	2 1/4	-	1	4	0.51
4148300318	CRS64-H25, H25 H-thread Steel Cross Type Bit	64	2 1/2	-	1	4	0.58
4148300319	CRS70-H25, H25 H-thread Steel Cross Type Bit	70	2 3/4	-	1	4	0.63
4148300320	CRS76-H25, H25 H-thread Steel Cross Type Bit	76	3	-	1	4	0.69
4148300321	CRS83-H25, H25 H-thread Steel Cross Type Bit	83	3 1/4	-	1	4	1.08
4148300322	CRS89-H25, H25 H-thread Steel Cross Type Bit	89	3 1/2	-	1	4	1.18
4148300323	CRS102-H25, H25 H-thread Steel Cross Type Bit	102	4	-	1	4	1.39
