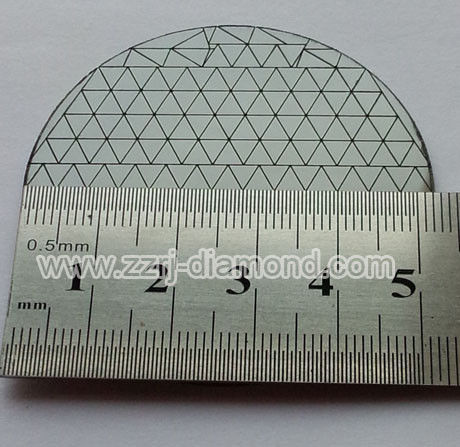

PCD Cutting Tool Blanks

Grades

Characters

Applications

Advantages

W5 fine grain size

1.Average grain size：5μm
2.High diamond content over90%
3.Laser cutting or wire EDM cutting

Aluminum, Brass/ Copper, Precious metals, Wood composites, Plastic

Excellent surface finish

W10 medium grain size

1.Average grain size：10μm
2.High diamond content over90%
3.Laser cutting or wire EDM cutting

＜14% Si/Al alloys, Copper alloys, Graphite and graphite composites, Green ceramics and carbides

Excellent resistance, good surface finish

W25 coarse grain size

1.Average grain size：25μm
2.High diamond contentover90%
3.Laser cutting or wire EDM cutting

＞14% Si/Al alloys, metal matrix composites, Bi-metals(aluminum/ cast iron), sintered ceramics and carbides

Long life, extremely high wear resistance

Shape

Product Code

Angle(°)

Diameter(mm)

Thickness(mm)

SCT11

360

11

1.6/2.0/3.2

SCT13

360

13.2

1.6/2.0/3.2

SCT16

360

16.2

1.6/2.0/3.2

SCT19

360

19.1

1.6/2.0/3.2

SCT5

360

30

1.6/2.0/3.2

SCT42

360

42

1.6/2.0/3.2

SCT51

360

51

1.6/2.0/3.2

Note: The products can be manufactured per customer’s request as non-standard shapes such as rectangular, square, triangle, rhombus, sector and so on.
