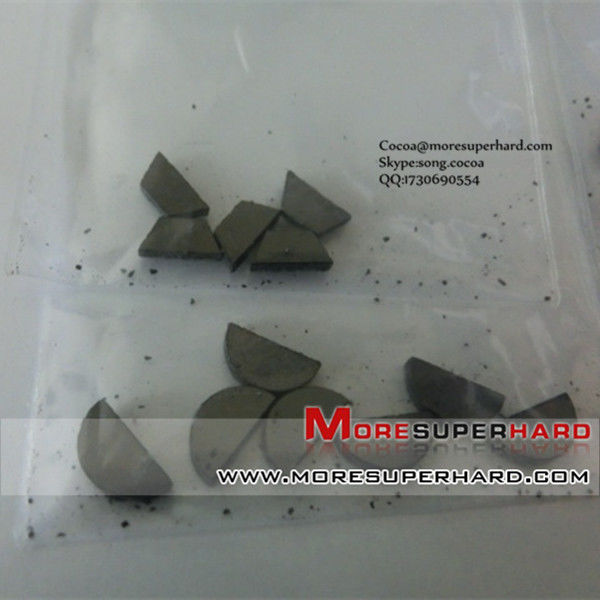

PCD cutting tool blank Cocoa@moresuperhard.com

Shape

Product No

Angle(A)

Diameter(D)

Thickness(T)

T11

360

11

1.6/2.0/3.2

T13

360

13.2

1.6/2.0/3.2

T16

360

16.2

1.6/2.0/3.2

T19

360

19.1

1.6/2.0/3.2

T30

360

30

1.6/2.0/3.2

T42

360

42

1.6/2.0/3.2

Note: The products can be manufactured per customer's request as non-standard shapes such as rectangular, square, triangle, rhombus, sector and so on.

Grades

Characters

Applications

Advantages

W5 fine grain size

1. Average grain size: 5μm
2. High diamond content over90%
3. Laser cutting or wire EDM cutting

Aluminum,Brass/Copper,Precious metals,Wood composites,Plastic

Excellent surface finish

W10 medium grain size

1. Average grain size: 10μm
2. High diamond content over90%
3. Laser cutting or wire EDM cutting

<14% Si/Al alloys,Copper alloys,Graphite and graphite composites,Green ceramics and carbides

Excellent resistance,good surface finish

W25 coarse grain size

1. Average grain size: 25μm
2. High diamond contentover90%
3. Laser cutting or wire EDM cutting

>14% Si/Al alloys,metal matrix composites,Bi-metals(aluminum/castiron),sintered ceramics and carbides

Long life,extremely high wear resistance
