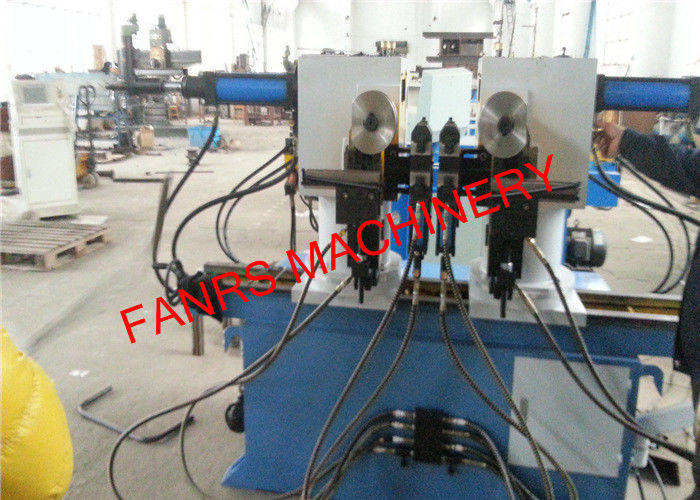

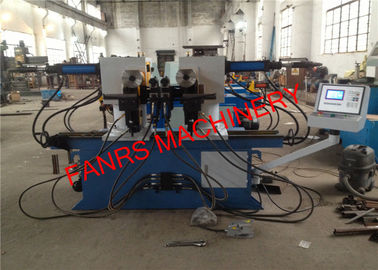

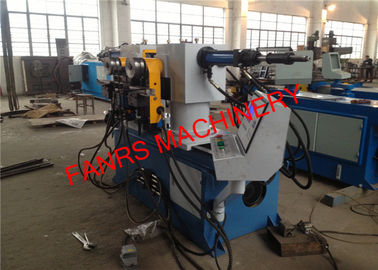

Hydraulic Pipe Bending Machine PLC Control System With Two Heads Molds

Hydraulic Pipe Bending Machine PLC Control System With Two Heads Molds

    • Hydraulic Pipe Bending Machine PLC Control System With Two Heads Molds
    • Hydraulic Pipe Bending Machine PLC Control System With Two Heads Molds
    • Hydraulic Pipe Bending Machine PLC Control System With Two Heads Molds
    • Hydraulic Pipe Bending Machine PLC Control System With Two Heads Molds
  • Hydraulic Pipe Bending Machine PLC Control System With Two Heads Molds

    Product Details:

    Place of Origin: Jiangsu,China
    Brand Name: FANRS MACHINERY
    Certification: CE,ISO,SGS
    Model Number: FS 38

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiation
    Packaging Details: Wooden Case
    Delivery Time: 15-30 working Days
    Payment Terms: T/T(30%,70%)
    Supply Ability: 50 Sets/Year
    Contact Now
    Detailed Product Description
    Max. Feeding Length(mm): 2300 Voltage: 380V/50Hz(can Be Customerized)
    Machine Dimension: 4250*1200*1350mm Delivery Time: 15-30 Working Days
    Payment Term: T/T Feeding Way: By Hand

    Hydraulic Pipe Bending Machine PLC Control System With Two Heads Molds







    Introduction of the machine features:



          Our FS38 Hydraulic Pipe Bending Machine is used to produce a series of bending tube, furniture tube, sports equipments tube, air material tube, automobile tube and all other bending tube etc.



    A. Our FS38 Hydraulic Pipe Bending Machine is with automatic alarm system and automatic counting system



    B. Perfect material surface treatment, electroplate, black coating, quenching, carburize electrostatic spraying to meeting respective usage and function.



    C. Our Machine frame body adopts tower structure, welded by square steel pipe and steel plate, high strength and steady.



    D. Bending molds material is high quality steel, hardness high and long life use, the hardness not below HRC50;mould include bending mould, clamp mould ,guided mould etc.

    Clamp die designed with parallelogram, diagonal clamping, fix tight; guided die adopt three (four) disc type chuck structure, clamp high.

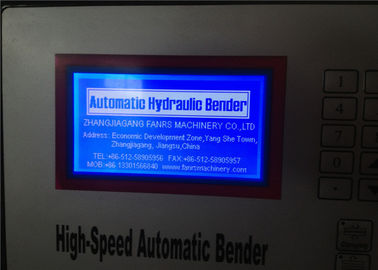

    E. With imported PLC logic control system and three-phase electricity control box, the speed of mainframe is adjusted by transducer.





    Technical Data:

    MODEL

    FS 38

    Max.Bending Dia×Thickness(mm)

    φ38×3

    Max.Bending Radius(mm)

    50-260

    Bending Angle

    0-190

    Max. Feeding Length(mm)

    2500

    Feeding Axis

    Speed

    (mm/sec)

    0--1000

    Accuracy(mm)

    ±0.1

    Rotate Axis

    Speed(°/s)

    0--150

    Accuracy(°)

    ±0.1

    Bending Axis

    Speed(°/s)

    0--60

    Accuracy(°)

    ±0.1

                  Voltage

    380V/50Hz

    Power

    4Kw

    Machine Size(L*W*H) (mm)

    4250*1200*1350

    Weight(kg)

    2000

    Air Pressure

    0.5--0.7MPa





    Hydraulic Pipe Bending Machine PLC Control System With Two Heads Molds





    Hydraulic Pipe Bending Machine PLC Control System With Two Heads Molds





    FAQ:

    1.  Q: Are you a manufacturer or trading company?



        A:  Yes, we are a manufacturer.



    2.  Q: What certificate do you have?



        A:  We have ISO ,SGS and CE certificate.



    3.  Q: How does your factory do regarding quality control?



        A:  We have a special QC department in charge of products’ quality.



    4.  Q: How long is the warranty period?



        A:  All of our products have one year warranty.



    5.  Q: How much production capacity of your company one year?



        A:  This depends on your needs.



    6.  Q: What’s the main market of your company?



        A:  We have customers all over the world.



    7.  Q: Where is your factory located?



        A: Our factory is located in Zhangjiagang City, Jiangsu Province, China,

    about 2 hours to Shanghai by car.



    8.  Q: Can we visit your machine operating in your factory?



        A:  We have own workshop, and we are enthusiastically looking forward to

    your visit guidance and business negotiations!



    9.  Q: How can we visit there?



        A:  We offer transportation service when you arrive in Shanghai or Jiangsu

    Province, China.
