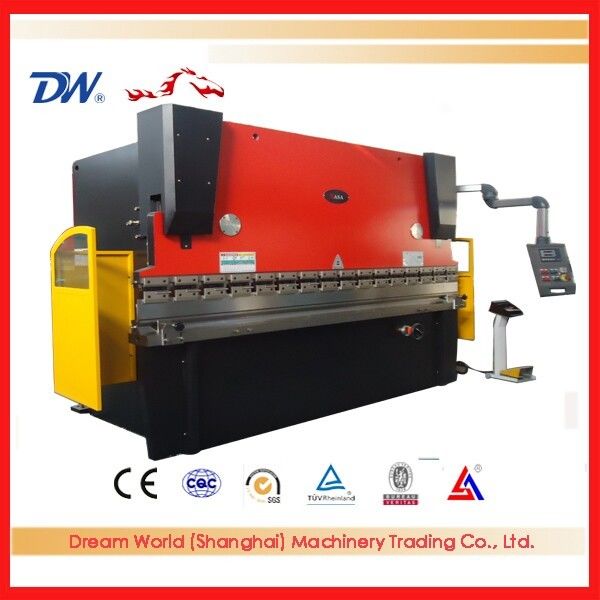

CNC hydraulic bending machine , metal plate bending machine

CNC hydraulic bending machine , metal plate bending machine

  • CNC hydraulic bending machine , metal plate bending machine
CNC hydraulic bending machine , metal plate bending machine
Product Details:
Place of Origin: Anhui
Brand Name: SLMT
Certification: CE, ISO9001:2000 certificate
Model Number: WC67Y-40T/2200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 4000- USD 15000
Packaging Details: Standard export package
Delivery Time: within 25 days
Payment Terms: T/T
Supply Ability: 500sets/month
Contact Now
Detailed Product Description
High Light:

bending machine

,

cnc hydraulic bending machine

,

metal plate bending machine

"Dream World" plate bending machine , cnc bending machine , steel bending machine


1) INT “SLMT” Brand Machine Structural Feature:

1.Totally European and design , streamlined design

2.Taking off inner-stress of welded parts by tempering, good stability

3.Remove rust with sand-blast and coated with anti-rust paint

4.Adopt Germanypentahedron machine center, once clamping can finish all working surfaces which will guarantee dimension precision and position precision.

5.The design of the machine frame is a critical part of any machine with relation to its ability to produce accurate parts for a long period of time.

6.Frames, assembly surfaces and connection holes are machined after the welding process, up to 80' in a single pass.

7.Supplying three front sheet supports

8.The machine adopts steel plate welded structure, with sufficient strength and rigidity.


2) INT “SLMT” Brand cnc Bending machine Features:

1.SLMT Machine Equipped with the Delem user-friendly user interface,the DA-52S provides all main press brake functionality.

2. Automatic tonnage and stroke adjustment for bending angles with easy angle input and operation of machine.

3. The press adopts hexahedral rectangle lengthen gib, which has high guiding precision and steady precision.

4. The sheet metal bending process for near silent working (63dB). Full conformity with EC Machinery Directive for safety and NR-12, NR-13.

5. CNC control of standard 3 + 1 axis with Y1, Y2 + Z + R-axis Crowning.

7. All pipes, flange and joint with vibrations proof and leakage proof design and setting .

8. Machining is carried out on modern Pentahedron machining center and CNC boring & milling machine to guarantee maximum precision.


3) INT “SLMT” Brand Hydraulic system:

1.Close loop electro-hydraulic synchronized servo-control system,the most advanced

2.Hydraulic system is from Bosch ,Germany,a full loop electric-hydraulic proportional servo control by Bosch –Rexroth Form Germany .

3.Imported linear optical reader,guiding system,positioning system and hydraulic balancing system with high precision,which all can permit the processing work piece of full length or with eccentric.

4.An outfit with "C" is at throat, as deformation compensation on throat,directly measuring the distance between upper tool and low die,assuring the precision of work piece.

5.All seals in cylinder is imported,the most famous brand,good quality and high performance

6.Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read or seen directly

7. Being able to work under rated load continuously, stable working and high precision.


4) INT “SLMT” Brand CNC Bending machine Back Gauge (Y1 + Y2 + X + R ):

1.Close loop electro-hydraulic synchronized servo-control system,the most advanced

2.Good for work piece needing multiple steps of bending with high precision requirement.

3.X is moved with ball screw, guided by linear guide, and driven by digital AC servo-motor.

4.Back gauge has well enough mechanical strength and rigidity with tank-type gauge structure.

5.Two fingers are moving alone swallow guide, operate easily with high precision


5) INT “SLMT” Brand Electrical system:

1.Electrical components are imported or from Sino-foreign joint Venture,in accordance with international standards,reliable safety,long life,good anti-interference ability,a radiation unit is fitted in electrical cabinet.

2.Having a movable single-hand pedal switch with emergency stop,easy to operate.


6): INT “SLMT” Brand DELEM DA-52S Features:

1. The compact DA-52S is complete CNC solution for conventional as well as synchronized press brakes.

2. The unique ‘hotkey’ navigation gives direct access to the programs in memory and enables quick and easy programming of a product.

3. Angle programming of the Y-axis, crowning function and pressure control are standard on board.

4. USB interfacing enables the use of memory sticks as a fast product and tool backup medium.

5. Advanced Y-axis control algorithms for closed loop as well as open loop valves.


Technical parameter of Bending Machine:

TypeNominal Force(KN)Worktable Length(mm)Poles Distance(mm)Throat Depth(mm)Slider Travel(mm)Max. Open(mm)Power(KW)Dimension(L*W*H)(mm)
40T/2200400220018502301003205.52200*1200*1910
40T/2500400250020302301003205.52500*1200*1910
50T/2500500250019702301003205.52500*1210*2000
63T/2500630250019702501003205.52500*1300*2210
63T/3200630320025002501003205.53200*1300*2210
80T/2500800250019702501003407.52500*1450*2300
80T/3200800320025002501003407.53200*1450*2300
80T/4000800400031002501003407.54000*1450*2400
100T/25001000250020003201203207.52500*1550*2500
100T/32001000320026003201203707.53200*1550*2500
100T/40001000400031003201203707.54000*1550*2500
125T/32001250320026003201203707.53200*1550*2500
125T/40001250400031003201203707.54000*1550*2500
160T/3200160032002510320200450113200*1700*2800
160T/4000160040003040320200450114000*1700*2800
160T/5000160050003800320200450115000*1900*3100
160T/6000160060004600320200450116300*1900*3100
200T/3200200032002510320200450113200*1950*2800
200T/4000200040003040320200450114000*1950*2800
200T/5000200050003800320200450115000*1950*3000
200T/6000200060005000320200450118000*1950*3300
250T/320025003200251040025056018.53250*2000*3200
250T/400025004000304040025056018.54000*2000*3400
250T/500025005000380040025056018.55000*2000*3400
250T/600025006000500040025056018.56000*2000*3400
300T/3200300032002500400250560223200*2000*3450
