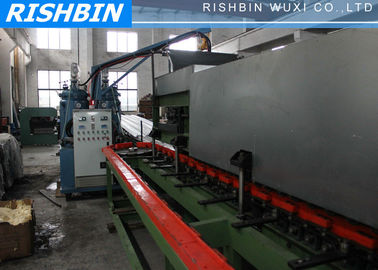

Prefabricated House Foam Insulated EPS Sandwich Panel Machine with Fly Saw Cutting

Prefabricated House Foam Insulated EPS Sandwich Panel Machine with Fly Saw Cutting

    • Prefabricated House Foam Insulated EPS Sandwich Panel Machine with Fly Saw Cutting
    • Prefabricated House Foam Insulated EPS Sandwich Panel Machine with Fly Saw Cutting
  • Prefabricated House Foam Insulated EPS Sandwich Panel Machine with Fly Saw Cutting

    Product Details:

    Place of Origin: China
    Brand Name: RISHBIN
    Certification: CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Contact Us
    Packaging Details: Standard packing
    Delivery Time: 100 working days
    Payment Terms: T/T, , L/C
    Supply Ability: 10 Sets Per Year
    Contact Now
    Detailed Product Description



    Prefabricated House Foam Insulated EPS Sandwich Panel Machine with Fly Saw Cutting





    Description:



    Composition of machine

    1. Decoiler

    2. Upper and lower forming machine

    3. Pre-heating table

    4. Reaction injection machine

    5.Side chemical sealing installation

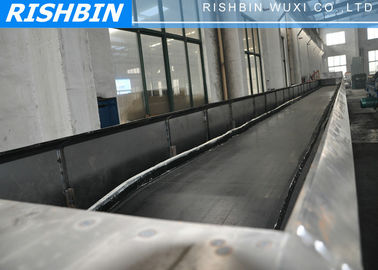

    6. Double-belt laminator

    7. Hot-air circulator

    8. Non –stop cutter

    9. Run out table





    Quick Detail:



    The line is a kind of specialized equipment used for producing color-steel-sided sandwich panels with

    the middle layer of anti-combustion polyurethane.

    The thickness of the produced sandwich panel ranges from 30 to 150 mm, the width between 700 and 1000 mm and the length on request. The production line is mainly applied to make wall and roof panels of steel

    structure buildings, which can also make various other insulation panels if replacing facing sheet. Its

    operation principle is as follows: Rigid poly foam raw materials, according to a certain blending ratio, are

    delivered into mixing head to agitate through metering pump unit on the injection machine and then

    uniformly injected onto the bottom facing sheet of sandwich panel. After the injection, the bottom facing

    sheet shall move toward the double-belt conveyors together with panel’s top facing sheet.

    Between the two conveyors, injected raw material is foamed and hardened into shape. At the end of the line, the formed sandwich panel is cut into preset length by an automatic tracking cutter.





    Specifications:



    Coil Material

    Thickness

    0.3-0.8mm

    Coil width

    Depend on customer’s requires

    Yield Strength

    250-550Mpa

    Material

    Color steel, galvanized steel

    Decoiler / Uncoiler

    Coil Width

    Max. 1250mm

    I.D

    510-610mm

    O.D

    Max. 1300mm

    Capability

    Max. 8Tons

    Decoiler type

    Manual / Hydraulic/Automatic

    Feeding & guiding

    Pinch feeding

    1 Units ( 2 Rollers )

    guiding

    2 Rollers

    Cutting device

    Cutting motion

    Cutting adopts tracking cutting

    and saw (or fly saw) of the cutting machine can

     move transversely 1500mm, Cutting machine

    moves longitudinally and transversely along

    the slide way

    Cutting machine adopts one-side blade band

    saw manner,cutting and revolving after cutting.

    The cutting saw can revolve, so cutting in two

     directions is realizable

    Length Measuring

     BY encoder

    Cutting Tolerance

    +/-1.5mm(per 3m)

    PU sandwich panel

    thickness

    25-100mm

    Standard Sandwich Panel Size

    max1100mm x 4000mm(Width x Length)

    Linear Speed of production

    2-5 m/min

    Reciprocating times of

    injection head per minute

    <60

    Control system

    Production type: totally continuous production

    with PLC controlling

    Roll Forming Machine

    Forming Stations

    ABOUT 18-24steps

    Roller material

    45# steel, heat treatment

    Diameter of shaft

    75mm

    Shaft material

    High grade 45# steel

    Drive type

    By chains

    Forming speed

    0-15m/min

    Main power

    7.5kw

    Electrical control

    PLC

    PANASONIC Brand or Custom-made

    Inverter

    YASKAWA Brand or Custom-made

    Touch screen

    MCGS Brand or Custom-made

    Operation type

    Touch screen & Button

    Runout Table

    Table type

    Simple non-power type

    Function

    To support the finished panels

    TOTAL WEIGHT



    APRRO 20TONS





    Applications:



    These sandwich panels are mostly used for industrial purpose, these are very light weight but can bear

    very heavy load. It also reduces the heat inside the building.



    With a wide range of different colors, available in cut-to-length supply and ready-to-install,

    this modern building product takes a good share in a highly economic, weather-independent and fast,

    modular building process.

    Beside the extremely high thermal-insulation values of the polyurethane-core,the panels create

    a high overall stiffness with their "composite" function and therefore support very good statically values.





    Advantages


    •    Light weight: 10~ 14 kg/m2and hence reduced steel frameworks and system can become economical.
    •    Good thermal insulation, with average coefficient of thermal conductivity is 0.018 ~ 0.020 W/mk.
    •    Available in customized length. And in wide range of colors.
    •    Cold and heat resistance: Perfect temperature resistance deformation from -110º C to 120º C.
    •    Great energy saver and hence indispensable in air-conditioned, cooled and heated buildings.
    •    Virtually zero maintenance throughout life.
    •    Installation is convenient and Flexible; not requiring large-       scale lifting   devices, and thus lowering building costs.
    •    High intensity and large rigidity ensures suitability for weight-bearing structures and for supporting and protective structures.
    •    Non-water absorbent.
    •    Environmentally friendly. And bring down life cycle cost for any built environment.
