Place of Origin: | China |
Brand Name: | GHKAIL |
Type: | Panel Saw |
---|---|
Material: | Steel |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | Negotiable |
Delivery Time: | 5-15 days |
Payment Terms: | L/C,T/T,Paypal |
Supply Ability: | 100pcs |
Highlight: | plastic cutting blade |
---|

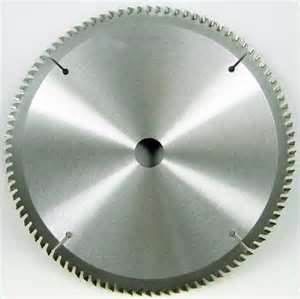

Saw blade for cutting aluminum,more information as below
1 .Material
1) Body material: SKS-51,which is imported from Janpan.The body is treated in special heat treatment.So it has high precision and good balance.
2)Alloy tips: imported from Luxemburg .and hard enough to bear high pressure.
2.Advantage
1) Saw blade for cutting aluminum with the ladder saw tooth,suitable for cutting aluminum with excellent mooth and edge.
2)The design of saw blade assembly enable cutting surface to be smooth and noise to be reduced
3)it is applicable to the computer controlled tandem slitter
4)Less chipping .help you save material.
3.Teeth configuration
Saw blade for aluminum cutting with flat-trapezoidal tooth.This tooth configuration excels at cutting hardd materials like laminates.MDF,and plastics.Teeth alternate between a flat raking tooth and a higher "trapeze"tooth. The tooth configuration is also used for non-ferrous metal cutting blades
4.Cutting material
used for cutting aluminum tubes,aluminum board,ect.
5.sizes
outer diameter(D)mm | Tooth width(B)mm | Tooth Thickness(b)mm | Inner diameter(d)mm | Teeth number(Z) | Tooth type(C) | Use(U) |
205 | 2.0 | 1.4 | 25.4 | 80 | ||
205 | 2.0 | 1.4 | 25.4 | 100 | ||
250 | 3.0 | 2.4 | 25.4 | 100 | ladder saw tooth | used for cutting aluminum |
250 | 3.0 | 2.4 | 25.4 | 120 | ||
300 | 3.0 | 2.4 | 25.4 | 100 | ||
350 | 3.6 | 3.0 | 25.4 | 100 |
