cnc pipe bending machines prices,stainless steel tube bender

Product Details:

Place of Origin:	china
Brand Name:	NFL
Certification:	ISO CE
Model Number:	W27YPC

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD8500
Packaging Details:	waterproof film
Delivery Time:	15 days
Payment Terms:	T/T L/C etc.
Supply Ability:	100 sets/ month

Contact Now

Detailed Product Description

High Light:

tube bender

stainless steel tube bender

pipe bending machine

Pipe bending machine

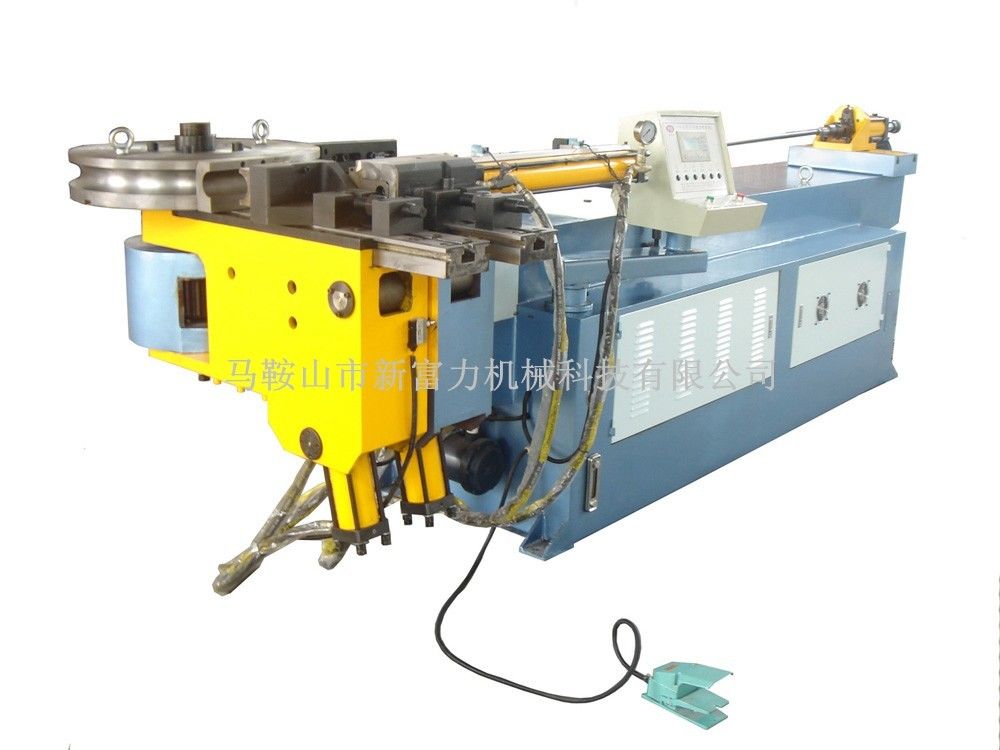

The series was adapted in particular to professional world market requirements. All the parts, structure and

characters are similar to the standard of mechanical engineering from Europe.Our professional experience and

drawings plans for Electric, Electronic, Hydraulic and mechanical from known companies bring to upgrading of the

machines' systems to accurate and attractive performance.CNC Series numerical control singlehead pipe bending

machine is the product from the combination with our technology and advanced Italian technology, integrated with

machine, hydraulic, and electricity. This series adopt VDU touch screen operating panel, which can input, store, and

display various bending data and order. Y, B, C three coordinates of motion under precision control by industrial

computer can realize fullauto mandrel on or mandrel off rapid bending, CNC machine also with advanced functions,

such as components bending spring back compensation, errors self diagnose alarm, memory store after power off,

automatic lubrication and safety protection. Pipe bending(C axis), pipe rotati(Y axis) are all drove by closed ring servomotor. Advanced technology, high automation reliability, integrated design

all make CNC pipe bending machine the first class pipe processing machine in the world.

Main Technical Parameter

Name	Unit	Parameter
Mild steel round tube	mm	38*2
Stainless Steel	mm	31.75*1.5
Light alloy annealed round tube	mm	40*3
Mild steel square tube	mm	30301.5
Mild steel rectangular tube	mm	35201.5
Mild steel round solid bar	mm	25
Mild steel square solid bar	mm	20*20
Calendering tube max Ø (mild steel)	mm	25*3
Min. bending radius	mm	20
Max. Bending radius(Standard)	mm	200
Max. Bending radius(Extended)	mm	400
Head overhang (on bending centre)	mm	500
Head height (on bending centre)	mm	360
Bending centre height (from floor)	mm	945
Max. bar passage inside the P.O.B. positionner	mm	50
Clamping adjustable stroke	mm	0-90
Shouldering adjustable stroke	mm	0-256
Mandrel retraction adjustable stroke	mm	0-76
Max. Bending Angle	°	190°
Though Effective Distance	mm	2200
Bending Speed(Max.)	°/sec	60
Max. rotation speed (axis Z)	°/sec	200
Max. shifting speed (axis X.)	mm/sec	1000
Bending angle Precision	°	±0.10
Rotation angle Precision - axis Z	°	±0.10
Shifting Precision - axis X	mm	±0.10
Max. productivity (90° bends)	Bend/h	720
Max. Input Power	KW	6
Hydraulic oil tank capacity	L	250
Max. Pressure	Mpa	16
LWH (Packaging Dimension)	mm	35007001300
Machine Weight	T	2.0
Noise (leq. A)	dB	65

QUALITY MEASURE

1). Quality assurance system

Company organizes the production as per ISO9001:2008 standard. From design control, process control, inspection control to delivery, installed and service, the whole process control. The running of quality system performs quality manual, procedure files, work instruction and related technical and management standard together with standard and regulation layout by company strictly. Quality system realizes whole screw and whole procedure control completely.

2). Quality assurance procedure for important out-source parts.

a. Mainly out-sourced parts: control system, cylinder, hydraulic components, motor, pump etc.

b. After evaluation, select qualified suppliers as business partners.

c. Purchasing according to plan, purchase contract, quality requirement, technical standard and inspection standard.

d. Receiving inspection on site either in supplier or our company with related technicians.

TECHNICAL SERVICE &. OPERATOR TRAINNING

1). Design examine

When designing and manufacturing the machines, manufacturer should be as per ISO9001 standard strictly to assure the system be performed effectively. According to contract requirement, to supply quality eligible, meet the professional design standard.

2). Operator training

During the installing and commissioning period, supplier arrange time to training buyer’s operator including operation, maintenance etc. supplier should solve the buyer technical questions about operation, maintenance and technics etc. Operator trained by supplier should do his commitment independently.

MACHINE QUALITY

Machine design and manufacture performsoccupation standardand comply with the requirement of quality, specification and characters herein this technical regulation.

Guarantee period start from the day the machine acceptance report signing. Period would be one year.

Technical documents which supplier in charge of furnish and handed to use should be consist with technical regulation, and throughout technical, technics, produce, installation and setting.
