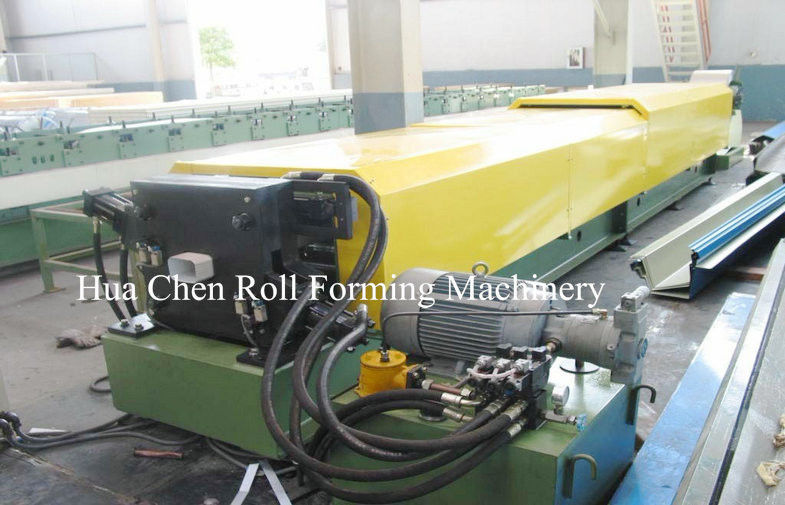

CNC Color Steel Sheet Downpipe Roll Forming Machine With No.45 Steel Roller

CNC Color Steel Sheet Downpipe Roll Forming Machine With No.45 Steel Roller

  • CNC Color Steel Sheet Downpipe Roll Forming Machine With No.45 Steel Roller
  • CNC Color Steel Sheet Downpipe Roll Forming Machine With No.45 Steel Roller
  • CNC Color Steel Sheet Downpipe Roll Forming Machine With No.45 Steel Roller
  • CNC Color Steel Sheet Downpipe Roll Forming Machine With No.45 Steel Roller
CNC Color Steel Sheet Downpipe Roll Forming Machine With No.45 Steel Roller
Product Details:
Place of Origin: Botou Hebei China
Brand Name: HC
Certification: ISO
Model Number: HC330
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Contact Now
Detailed Product Description
High Light:

Down pipe roll forming machine

,

pipe roll forming machine

CNC Color Steel Sheet Downpipe Roll Forming Machine With No45 Steel Roller



Quick Detail:

1. Suitable to process: Color steel plate

2. Width of the plate: 330mm

3. Rollers: 15 rows

4. Dimensions: 7.4*1.15*1.51m

5. Power: 5.5+4kw

6. Rolling material: high grade 45# steel(plated chrome on surface)

7. Thickness of the plate:0.3-0.6 mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control



Description:

Downspout Roll Forming Machine  Main parameter

No.

   Main parameter of Downspout Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

330mm

3

Rollers

15rows

4

Dimensions

7400*1150*1510mm

5

Power

5.5+4kw

6

Rolling material

high grade 45# steel(plated chrome on surface)

6

Thickness of the plate

0.3-0.6mm

7

Productivity

8-10m/min

8

Diameter of the roller

Φ66mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

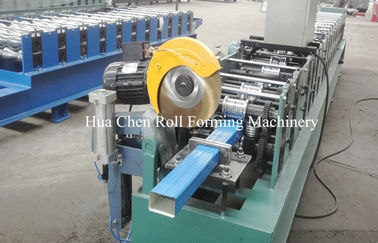

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting



Application

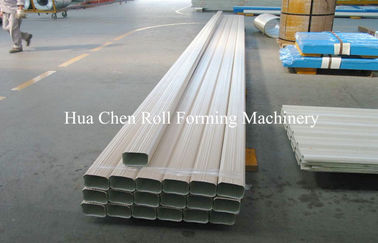

The roll formed product is mor durable than the tranditional ppc pipe, and not easy to aging.

It will make the project more integrate, and help enhancing the image of all project.

Drainpipe bending machine used for bend the roll formed pipe, to connect the drainpipe and the elbowed pipe.



Competitive Advantage

1. Pretty appearance

2. Various special model

3. mature foreign trade team

4. professional designing team

5. Lifetime maintenance
