Name: 380v / 50Hz CNC Automatic Pipe Bending Machine With auto-sensor and indicator
Brand: Shanghai Feng Yuan Saw Blades Products Co. ltd
SKU: A38 NCB
Availability: InStock

Home Products CNC Pipe Bending Machine

380v / 50Hz CNC Automatic Pipe Bending Machine With auto-sensor and indicator

Product Details:

Place of Origin:	Jiangsu,China
Brand Name:	FANRS MACHINERY
Certification:	CE,ISO
Model Number:	A38 NCB

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiation
Packaging Details:	Wooden Case
Delivery Time:	35-45 working days
Payment Terms:	T/T
Supply Ability:	50 Sets/Year
After-Service:	Engineers available to oversea

Contact Now

Detailed Product Description

Highlight:	steel pipe bending machine

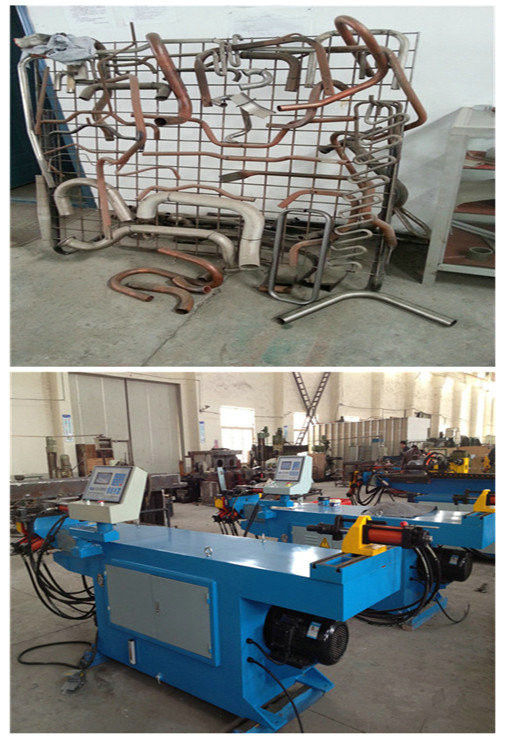

380v / 50Hz Automatic Pipe Bending Machine With auto-sensor and indicator

Brief Introduction:

This Large automatic pipe bending machine is used among Ship Building, Petrochemical Industry, Boiler, and Automotive Industry.

It Specialized in working big size and thickness pipes or tubes.

Features:

- Se-automatic and automatic function;

- With auto-sensor and indicator, avoid operation mistake and break machine;

- Completed with limited protection system;

- Built with urgency stop switch of the mobile foot pedal;

- Completed with cooling system;

- With fast change mould device, operation easy and prompt;

- Adapt operation control panel, bending angle and quantity could display.

Main Technical Data:

Model	A38NCB
Max.Bending Dia×Thickness(mm)	38mm*2mm
Max.Bending Radius(mm)	30mm-170mm
Bending Angle	0-190
Max. Feeding Length(mm)	1700mm
Working Table Height	935mm
Mould Height	35mm
Clamp Pipe Stroke	52mm
Max.Length Stroke	70mm
Bending Speed	74mm/min
Hydraulic System Motor	4kw
Total Power	4kw
Oil Tank Capacity	120kg
Max.Pressure	150kg
Voltage	380v/50Hz
Machine Dimension(LxWxH)	420012001300mm
Machine Weight	1400kg

380v / 50Hz CNC Automatic Pipe Bending Machine With auto-sensor and indicator 0
