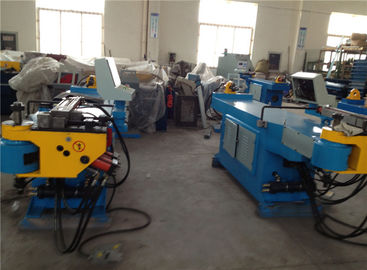

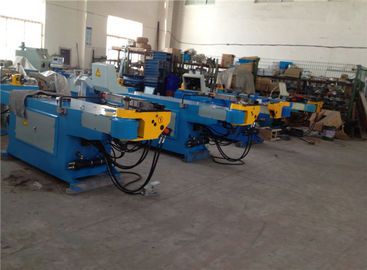

Automatic Pipe Bender Machine With Automatic Memory / Reserve And Alarm

Product Details:

Place of Origin:	Jiangsu,China
Brand Name:	FANRS MACHINERY
Certification:	CE,ISO,SGS
Model Number:	CNC 50TSR

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiation
Packaging Details:	Wooden Case
Delivery Time:	30 Days
Payment Terms:	T/T(30%,70%)
Supply Ability:	50 Sets/Year

Contact Now

Detailed Product Description

Max.Bending Dia×Thickness(mm):	φ50×3	Max.Bending Radius(mm):	50-260
Bending Angle:	0-190	Max. Feeding Length(mm):	2500
Voltage:	380V/50Hz	Power:	4Kw
Machine Size(LWH) (mm):	425012001350	Weight(kg):	2000
Air Pressure:	0.5--0.7MPa
Highlight:	hydraulic pipe bending machine

Automatic Pipe Bender Machine With Automatic Memory / Reserve And Alarm

Main Technical Data:

MODEL		CNC 50 TSR
Max.Bending Dia×Thickness(mm)		φ50×3
Max.Bending Radius(mm)		50-260
Bending Angle		0-190
Max. Feeding Length(mm)		2500
Feeding Axis	Speed (mm/sec)	0--1000
	Accuracy(mm)	±0.1
Rotate Axis	Speed(°/s)	0--150
	Accuracy(°)	±0.1
Bending Axis	Speed(°/s)	0--60
	Accuracy(°)	±0.1
Voltage		380V/50Hz
Power		4Kw
Machine Size(LWH) (mm)		425012001350
Weight(kg)		2000
Air Pressure		0.5--0.7MPa

Automatic Pipe Bender Machine With Automatic Memory / Reserve And Alarm 0

Main Electric Parts and Brand:

Item	Brand
Touch Screen	color touch-screen 10.4” of TAIWAN
PLC	Mitsubishi, Japan
Feeding Motor and Drivers	Mitsubishi, Japan
Rotate Axis Motor and Drivers	Mitsubishi, Japan
Button	Tend, Taiwan
Oil Pump	Yuken,Japan
Hydraulic Valve	Biostone, American
Oil Pump Motor	Wuxi Lake, China
Switch	Mingwei,Taiwan
Intermediate Relay	Omron, Japan
Contactor	Schneider, German/ SHIHLIN,Taiwan
Proximity Sensor	Kaifang,Taiwan/Yingming,Taiwan/Shihlin,Taiwan
Cylinder (Vascular Clamp/Carrier)	AIRTAC,Taiwan
Encoder	NEMICON,Japan

Introduction:

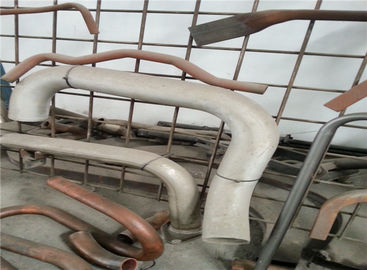

It is used to produce a series of bending tube, furniture tube, sports equipments tube, air material tube, automobile tube and all other bending tube etc.
