Metal Tube CNC Bending Machine Hydraulic Transmission System For Table / Chair Pipe Frame Bending

Metal Tube CNC Bending Machine Hydraulic Transmission System For Table / Chair Pipe Frame Bending

  • Metal Tube CNC Bending Machine Hydraulic Transmission System For Table / Chair Pipe Frame Bending
  • Metal Tube CNC Bending Machine Hydraulic Transmission System For Table / Chair Pipe Frame Bending
  • Metal Tube CNC Bending Machine Hydraulic Transmission System For Table / Chair Pipe Frame Bending
Metal Tube CNC Bending Machine Hydraulic Transmission System For Table / Chair Pipe Frame Bending
Product Details:
Place of Origin: Jiangsu,China
Brand Name: FANRS MACHINERY
Certification: CE,ISO,SGS
Model Number: CNC 50TSR
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 30 Days
Payment Terms: T/T(30%,70%)
Supply Ability: 50 Sets/Year
Contact Now
Detailed Product Description
Max.Bending Dia×Thickness(mm): φ50×3 Max.Bending Radius(mm): 50-260
Bending Angle: 0-190 Max. Feeding Length(mm): 2500
Voltage: 380V/50Hz Power: 4Kw
Machine Size(L*W*H) (mm): 4250*1200*1350 Weight(kg): 2000
Air Pressure: 0.5--0.7MPa
High Light:

hydraulic pipe bending machine

,

stainless steel pipe bender machine

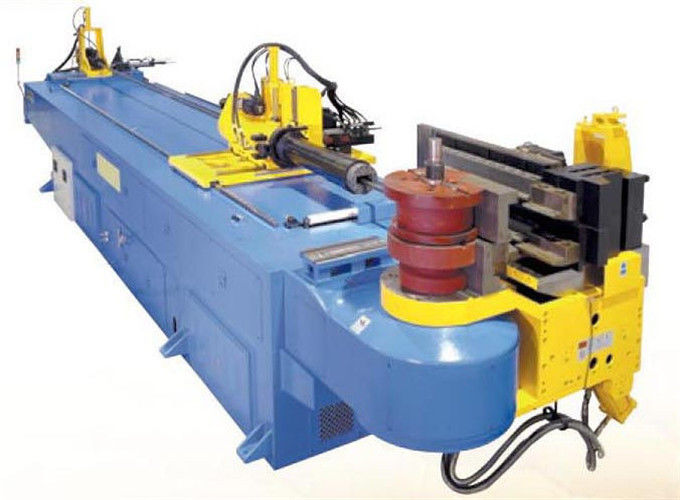

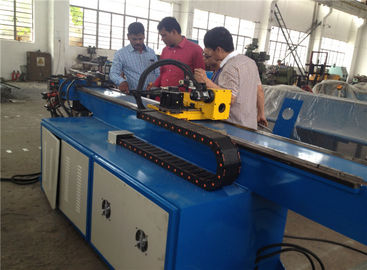

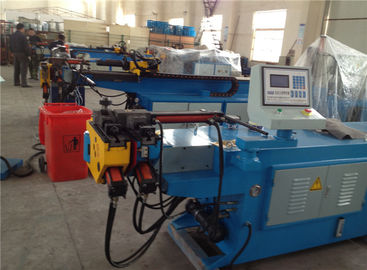

Metal Tube CNC Bending Machine Hydraulic Transmission System For Table / Chair Pipe Frame Bending







Introduction:



It is used to produce a series of bending tube, furniture tube, sports equipments tube, air material tube, automobile tube and all other bending tube etc.



A.    Application and with imported PLC logic control system and three-phase electricity control box, the speed of mainframe is adjusted by transducer.

B.    Application imported color touch-screen 10.4” of TAIWAN, graph operating system, leading interface designs and several kinds of functions tentacles controllable, so as to easy to operate, automatic to memory and reserve, automatic to alarm and so on.

C.    This machine is equipped with the most advance CNC computer digital control system and SMS synchronized follow bending system.

D.    Complete with automatic counting system, finished products display on panel.

E.    Complete with precision worm gear and worm drive system, which controlled by separated servo system to finish feeding, rotating and bending.

F.    Machine frame body adopts tower structure, welded by square steel pipe and steel plate, high strength and steady.

G.    Ideal and perfect material surface treatment, electroplate, black coating, quenching, carburize electrostatic spraying to meeting respective usage and function.

H.    Mould material use high quality steel, hardness high and long life use, the hardness not below HRC50;mould include bending mould, clamp mould ,guided mould etc.

Clamp die designed with parallelogram, diagonal clamping, fix tight; guided die adopt three (four) disc type chuck structure, clamp high.

I.    Feeding axis complete with imported high speed linear motion components;

Rotary Axis complete with precision worm gear and worm drive system, which controlled by separated electrical servo motor to meeting each function, feeding, rotating and bending; Bending Arm built with hydraulic transmission system;



J.  Adopt imported international well-known brand; switch and button from Schneider of France; intermediate relay from OMRON; servo motor and controller from Mitsubishi of Japan.

K.  With automatic alarm system and automatic counting system.









Main Technical Data:



MODEL

CNC 50 TSR

Max.Bending Dia×Thickness(mm)

φ50×3

Max.Bending Radius(mm)

50-260

Bending Angle

0-190

Max. Feeding Length(mm)

2500

Feeding Axis

Speed

(mm/sec)

0--1000

Accuracy(mm)

±0.1

Rotate Axis

Speed(°/s)

0--150

Accuracy(°)

±0.1

Bending Axis

Speed(°/s)

0--60

Accuracy(°)

±0.1

              Voltage

380V/50Hz

Power

4Kw

Machine Size(L*W*H) (mm)

4250*1200*1350

Weight(kg)

2000

Air Pressure

0.5--0.7MPa



Main Electric Parts and Brand:

Item

Brand

Touch Screen

color touch-screen 10.4” of TAIWAN

PLC

Mitsubishi, Japan

Feeding Motor and Drivers

Mitsubishi, Japan

Rotate Axis Motor and Drivers

Mitsubishi, Japan

Button

Tend, Taiwan

Oil Pump

Yuken,Japan

Hydraulic Valve

Biostone, American

Oil Pump Motor

Wuxi Lake, China

Switch

Mingwei,Taiwan

Intermediate Relay

Omron, Japan

Contactor

Schneider, German/ SHIHLIN,Taiwan

Proximity Sensor

Kaifang,Taiwan/Yingming,Taiwan/Shihlin,Taiwan

Cylinder (Vascular Clamp/Carrier)

AIRTAC,Taiwan

Encoder

NEMICON,Japan




FAQ:

1.  Q: Are you a manufacturer or trading company?



A:  Yes, we are a manufacturer.



2.  Q: What certificate do you have?



A:  We have ISO ,SGS and CE certificate.



3.  Q: How does your factory do regarding quality control?



A:  We have a special QC department in charge of products’ quality.



4.  Q: How long is the warranty period?



A:  All of our products have one year warranty.



5.  Q: How much production capacity of your company one year?



A:  This depends on your needs.



6. Q: What’s the main market of your company?



A:  We have customers all over the world.



7.  Q: Where is your factory located?



A: Our factory is located in Zhangjiagang City, Jiangsu Province, China,

about 2 hours to Shanghai by car.



8.  Q: Can we visit your machine operating in your factory?



A:  We have own workshop, and we are enthusiastically looking forward to

your visit guidance and

 business negotiations!



9.  Q: How can we visit there?



A:  We offer transportation service when you arrive in Shanghai or Jiangsu

Province, China.
