CNC Tube Pipe Bending Machine For Wheel Barrow Trolley Frame Bending

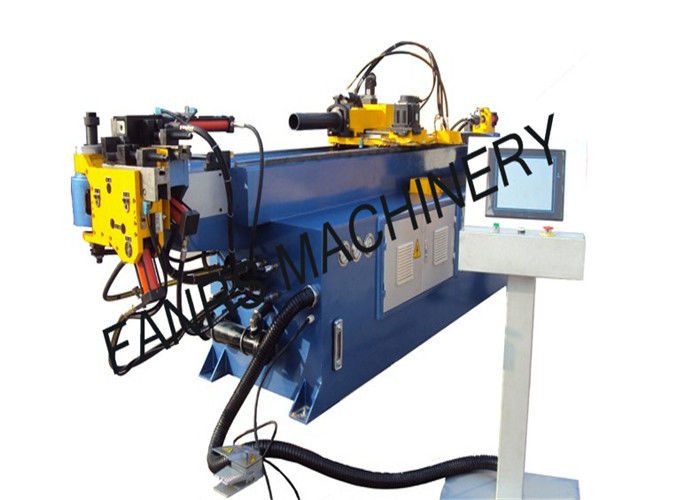

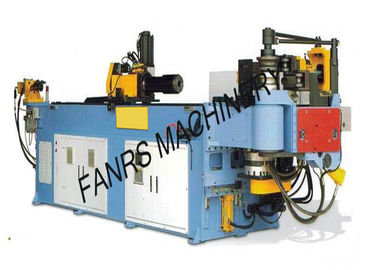

Bending Machine Introduction:

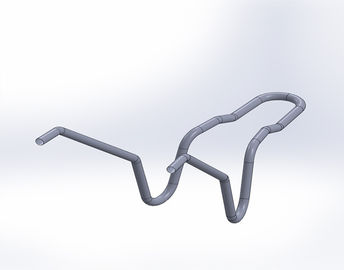

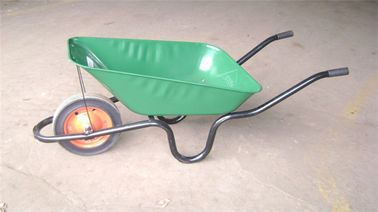

Our Machine can produce a series of bending tube, furniture tube, sports equipments tube, air material tube, automobile tube and all other bending tube etc;
1. PLC logic control system and three-phase electricity control box, the speed of mainframe is adjusted by transducer;
2. Application imported color touch-screen 10.4” of TAIWAN, graph operating system, leading interface designs and several kinds of functions tentacles controllable, so as to easy to operate, automatic to memory and reserve, automatic to alarm and so on;
3. With the most advance CNC computer digital control system and SMS synchronized follow bending system;
4. Automatic counting system, finished products display on panel.
5. Precision worm gear and worm drive system, which controlled by separated servo system to finish feeding, rotating and bending;
6. Ideal and perfect material surface treatment, electroplate, black coating, quenching, carburize electrostatic spraying to meeting respective usage and function;
7. Feeding axis complete with imported high speed linear motion components;
8. Rotary Axis complete with precision worm gear and worm drive system, which controlled by separated electrical servo motor to meeting each function, feeding, rotating and bending; Bending Arm built with hydraulic transmission system;
9. Switch and button from Schneider of France; intermediate relay from OMRON;
10.Servo motor and controller from Mitsubishi of Japan;
11.Automatic alarm system and automatic counting system;
Main Technical Data:
|
MODEL
|
CNC 38 TSR
|
|
Max.Bending Dia×Thickness(mm)
|
φ38×3
|
|
Max.Bending Radius(mm)
|
50-220
|
|
Bending Angle
|
0-190
|
|
Max. Feeding Length(mm)
|
2500
|
|
Feeding Axis
|
Speed
(mm/sec)
|
0--1000
|
|
Accuracy(mm)
|
±0.1
|
|
Rotate Axis
|
Speed(°/s)
|
0--150
|
|
Accuracy(°)
|
±0.1
|
|
Bending Axis
|
Speed(°/s)
|
0--60
|
|
Accuracy(°)
|
±0.1
|
|
Voltage
|
380V/50Hz
|
|
Power
|
4Kw
|
|
Machine Size(L*W*H) (mm)
|
4200*1100*1300
|
|
Weight(kg)
|
1600
|
|
Air Pressure
|
0.5--0.7MPa
|
Main Electric Parts and Brand:
|
Item
|
Brand
|
|
Touch Screen
|
color touch-screen 10.4” of TAIWAN
|
|
PLC
|
Mitsubishi, Japan
|
|
Feeding Motor and Drivers
|
Mitsubishi, Japan
|
|
Rotate Axis Motor and Drivers
|
Mitsubishi, Japan
|
|
Button
|
Tend, Taiwan
|
|
Oil Pump
|
Yuken,Japan
|
|
Hydraulic Valve
|
Biostone, American
|
|
Oil Pump Motor
|
Wuxi Lake, China
|
|
Switch
|
Mingwei,Taiwan
|
|
Intermediate Relay
|
Omron, Japan
|
|
Contactor
|
Schneider, German/ SHIHLIN,Taiwan
|
|
Proximity Sensor
|
Kaifang,Taiwan/Yingming,Taiwan/Shihlin,Taiwan
|
|
Cylinder (Vascular Clamp/Carrier)
|
AIRTAC,Taiwan
|
|
Encoder
|
NEMICON,Japan
|
