| Place of Origin: | Jiangsu,China |
| Brand Name: | FANRS MACHINERY |
| Certification: | CE,ISO,SGS |
| Model Number: | CNC 50TSR |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | 30 Days |
| Payment Terms: | T/T(30%,70%) |
| Supply Ability: | 50 Sets/Year |
| Max.Bending Dia×Thickness(mm): | φ50×3 | Max.Bending Radius(mm): | 50-260 |
|---|---|---|---|
| Bending Angle: | 0-190 | Max. Feeding Length(mm): | 2500 |
| Voltage: | 380V/50Hz | Xxx: | Xxx |
| Machine Size(L*W*H) (mm): | 4250*1200*1350 | Weight(kg): | 2000 |
| High Light: | hydraulic pipe bending machine,stainless steel pipe bender machine |
||

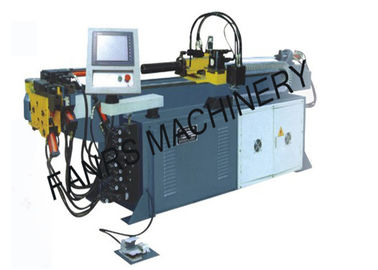

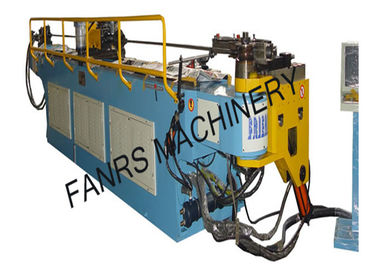

Automatic Punching Hole System CNC Pipe Bending Machine For Furniture Frame Bending
Introduction:

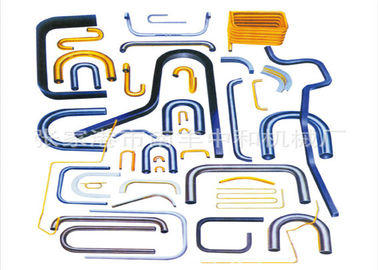

For bending tube, furniture tube, sports equipments tube, air material tube, automobile tube and all other bending tube etc.
A.With PLC logic control system and three-phase electricity control box, the speed of mainframe is adjusted by transducer.
B.Colorful touch-screen 10.4” of TAIWAN, graph operating system, leading interface designs and several kinds of functions tentacles controllable, so as to easy to operate, automatic to memory and reserve, automatic to alarm and so on.
C.with the most advance CNC computer digital control system and SMS synchronized follow bending system.
D.With automatic counting system, finished products display on panel.
E.With precision worm gear and worm drive system, which controlled by separated servo system to finish feeding, rotating and bending.
E.Ideal and perfect material surface treatment, electroplate, black coating, quenching, carburize electrostatic spraying to meeting respective usage and function.
F.Feeding axis complete with imported high speed linear motion components;
Rotary Axis complete with precision worm gear and worm drive system, which controlled by separated electrical servo motor to meeting each function, feeding, rotating and bending; Bending Arm built with hydraulic transmission system;
G.Adopt imported international well-known brand; switch and button from Schneider of France; intermediate relay from OMRON; servo motor and controller from Mitsubishi of Japan.
Main Data:
|
MODEL |
CNC 50 TSR |
|
|
Max.Bending Dia×Thickness(mm) |
φ50×3 |
|
|
Max.Bending Radius(mm) |
50-260 |
|
|
Bending Angle |
0-190 |
|
|
Max. Feeding Length(mm) |
2500 |
|
|
Feeding Axis |
Speed (mm/sec) |
0--1000 |
|
Accuracy(mm) |
±0.1 |
|
|
Rotate Axis |
Speed(°/s) |
0--150 |
|
Accuracy(°) |
±0.1 |
|
|
Bending Axis |
Speed(°/s) |
0--60 |
|
Accuracy(°) |
±0.1 |
|
|
Voltage |
380V/50Hz |
|
|
Power |
4Kw |
|
|
Machine Size(L*W*H) (mm) |
4250*1200*1350 |
|
|
Weight(kg) |
2000 |
|
|
Air Pressure |
0.5--0.7MPa |
|
Main Electric Parts and Brand:
|
Item |
Brand |
|
Touch Screen |
color touch-screen 10.4” of TAIWAN |
|
PLC |
Mitsubishi, Japan |
|
Feeding Motor and Drivers |
Mitsubishi, Japan |
|
Rotate Axis Motor and Drivers |
Mitsubishi, Japan |
|
Button |
Tend, Taiwan |
|
Oil Pump |
Yuken,Japan |
|
Hydraulic Valve |
Biostone, American |
|
Oil Pump Motor |
Wuxi Lake, China |
|
Switch |
Mingwei,Taiwan |
|
Intermediate Relay |
Omron, Japan |
|
Contactor |
Schneider, German/ SHIHLIN,Taiwan |
|
Proximity Sensor |
Kaifang,Taiwan/Yingming,Taiwan/Shihlin,Taiwan |
|
Cylinder (Vascular Clamp/Carrier) |
AIRTAC,Taiwan |
|
Encoder |
NEMICON,Japan |
FAQ:
1. Q: Are you a manufacturer or trading company?
A: Yes, we are a manufacturer.
2. Q: What certificate do you have?
A: We have ISO ,SGS and CE certificate.
3. Q: How does your factory do regarding quality control?
A: We have a special QC department in charge of products’ quality.
4. Q: How long is the warranty period?
A: All of our products have one year warranty.
5. Q: How much production capacity of your company one year?
A: This depends on your needs.
6. Q: What’s the main market of your company?
A: We have customers all over the world.
7. Q: Where is your factory located?
A: Our factory is located in Zhangjiagang City, Jiangsu Province, China,
about 2 hours to Shanghai by car.
8. Q: Can we visit your machine operating in your factory?
A: We have own workshop, and we are enthusiastically looking forward to
your visit guidance and business negotiations!
9. Q: How can we visit there?
A: We offer transportation service when you arrive in Shanghai or Jiangsu
Province, China.
