Shanghai Feng Yuan Saw Blades Products Co. ltd
High quality, Best service,Reasonable price.
 |
| Place of Origin: | Jiangsu,China |
| Brand Name: | FANRS MACHINERY |
| Certification: | CE,ISO,SGS |
| Model Number: | CNC 75TSR |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | 30 Days |
| Payment Terms: | T/T(30%,70%) |
| Supply Ability: | 50 Sets/Year |
| Max.Bending Dia×Thickness(mm): | φ75×3 | Max.Bending Radius(mm): | 35-250 |
|---|---|---|---|
| Max.Bending Angle: | 190 | Max. Feeding Length(mm): | 2500 |
| Xxxx: | Xxxx | Power: | 11Kw |
| Machine Size(L*W*H) (mm): | 4800*1400*1500 | Weight(kg): | 3200 |
| High Light: | hydraulic pipe bending machine,stainless steel pipe bender machine |
||

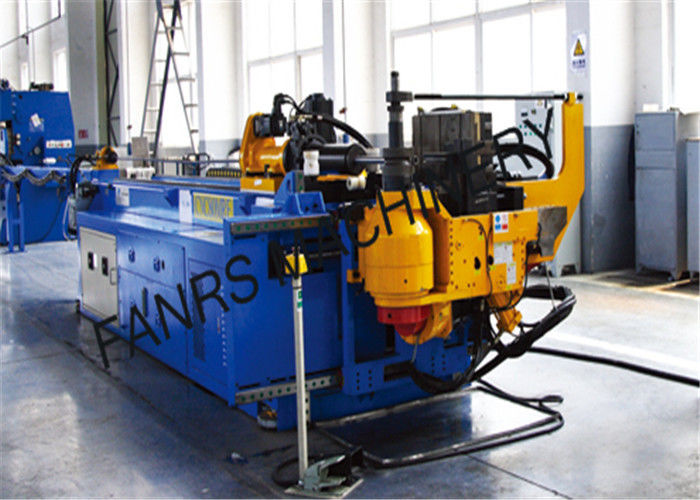

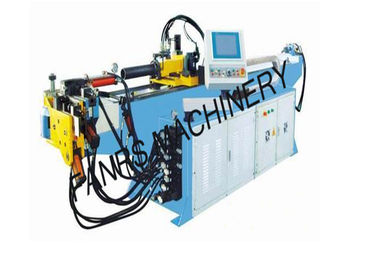

Taiwan CNC Pipe Bending Machine With Touch Screen PLC Controller For Metal Steel Pipe
Short Technical Data:
|
MODEL |
CNC 75 TSR |
|
|
Max.Bending Dia×Thickness(mm) |
φ75×3 |
|
|
Max.Bending Radius(mm) |
35-250 |
|
|
Bending Angle |
0-190 |
|
|
Max. Feeding Length(mm) |
2500 |
|
|
Feeding Axis |
Speed (mm/sec) |
0--1000 |
|
Accuracy(mm) |
±0.1 |
|
|
Rotate Axis |
Speed(°/s) |
0--150 |
|
Accuracy(°) |
±0.1 |
|
|
Bending Axis |
Speed(°/s) |
0--60 |
|
Accuracy(°) |
±0.1 |
|
|
Voltage |
380V/50Hz |
|
|
Power |
11Kw |
|
|
Machine Size(L*W*H) (mm) |
4800*1400*1500 |
|
|
Weight(kg) |
3200 |
|
|
Air Pressure |
0.5--0.7MPa |
|
Main Electric Parts and Brand:
|
Item |
Brand |
|
Touch Screen |
color touch-screen 10.4” of TAIWAN |
|
PLC |
Mitsubishi, Japan |
|
Feeding Motor and Drivers |
Mitsubishi, Japan |
|
Rotate Axis Motor and Drivers |
Mitsubishi, Japan |
|
Button |
Tend, Taiwan |
|
Oil Pump |
Yuken,Japan |
|
Hydraulic Valve |
Biostone, American |
|
Oil Pump Motor |
Wuxi Lake, China |
|
Switch |
Mingwei,Taiwan |
|
Intermediate Relay |
Omron, Japan |
|
Contactor |
Schneider, German/ SHIHLIN,Taiwan |
|
Proximity Sensor |
Kaifang,Taiwan/Yingming,Taiwan/Shihlin,Taiwan |
|
Cylinder (Vascular Clamp/Carrier) |
AIRTAC,Taiwan |
|
Encoder |
NEMICON,Japan |
Simple Introduction:

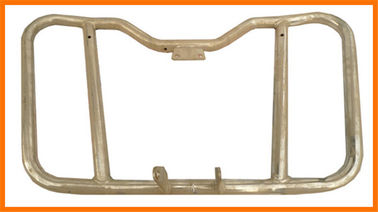

Our machine can make a series of bending tube, furniture tube, sports equipments tube, air material tube, automobile tube and all other bending tube etc.
1.PLC logic control system and three-phase electricity control box, the speed of mainframe is adjusted by transducer.
2.CNC computer digital control system and SMS synchronized follow bending system.
With automatic counting system, finished products display on panel.
3.Servo system to finish feeding, rotating and bending.
4.Bending Arm built with hydraulic transmission system;
5.Ideal and perfect material surface treatment, electroplate, black coating, quenching, carburize electrostatic spraying to meeting respective usage and function.
6.Rotary Axis complete with precision worm gear and worm drive system, which controlled by separated electrical servo motor to meeting each function, feeding, rotating and bending;
7.Switch and button from Schneider of France;
8.Intermediate relay from OMRON; servo motor and controller from Mitsubishi of Japan.
9.With automatic alarm system and automatic counting system.
