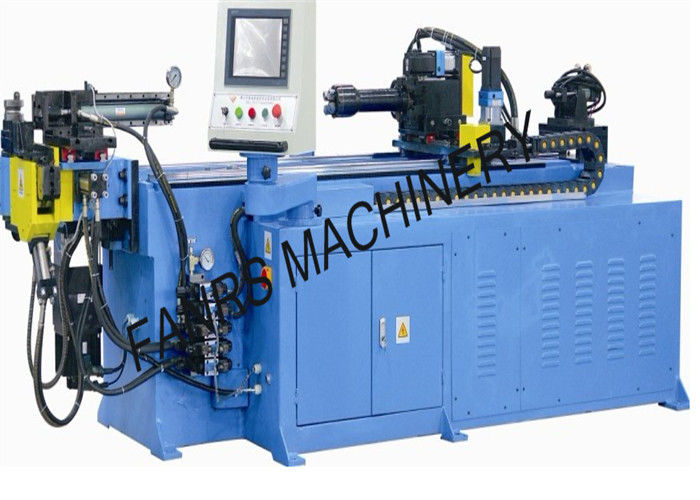

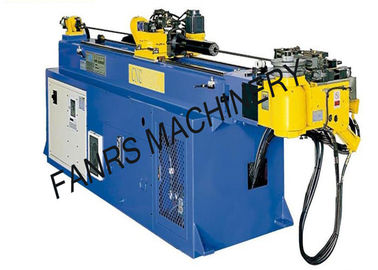

Mitsubishi Servo Motor Pipe Bending Machine for Furniture With Auto Holes Punch System
Machine Short Introduction:

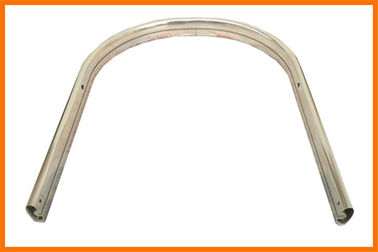

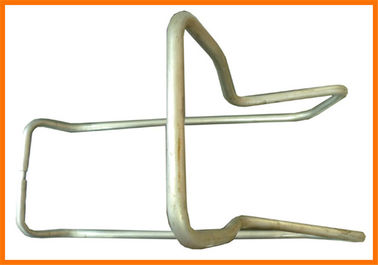

It is for bending tube, furniture tube, sports equipments tube, air material tube, automobile tube and all other bending tube etc.
a. Ideal and perfect material surface treatment, electroplate, black coating, quenching, carburize electrostatic spraying to meeting respective usage and function.
b. Application and with imported PLC logic control system and three-phase electricity control box, the speed of mainframe is adjusted by transducer.
d. With the most advance CNC computer digital control system and SMS synchronized follow bending system.
e. Feeding axis complete with imported high speed linear motion components;
f. Rotary Axis complete with precision worm gear and worm drive system, which controlled by separated electrical servo motor to meeting each function, feeding, rotating and bending;
g. Bending Arm built with hydraulic transmission system;
h. Switch and button from Schneider of France; intermediate relay from OMRON;
i. Servo motor and controller from Mitsubishi of Japan.
j. With automatic alarm system and automatic counting system.
Technical Data:
|
MODEL
|
CNC 50 TSR
|
|
Max.Bending Dia×Thickness(mm)
|
φ50×3
|
|
Max.Bending Radius(mm)
|
50-260
|
|
Bending Angle
|
0-190
|
|
Max. Feeding Length(mm)
|
2500
|
|
Feeding Axis
|
Speed
(mm/sec)
|
0--1000
|
|
Accuracy(mm)
|
±0.1
|
|
Rotate Axis
|
Speed(°/s)
|
0--150
|
|
Accuracy(°)
|
±0.1
|
|
Bending Axis
|
Speed(°/s)
|
0--60
|
|
Accuracy(°)
|
±0.1
|
|
Voltage
|
380V/50Hz
|
|
Power
|
4Kw
|
|
Machine Size(L*W*H) (mm)
|
4250*1200*1350
|
|
Weight(kg)
|
2000
|
|
Air Pressure
|
0.5--0.7MPa
|
Main Parts and Brand:
|
Item
|
Brand
|
|
Touch Screen
|
color touch-screen 10.4” of TAIWAN
|
|
PLC
|
Mitsubishi, Japan
|
|
Feeding Motor and Drivers
|
Mitsubishi, Japan
|
|
Rotate Axis Motor and Drivers
|
Mitsubishi, Japan
|
|
Button
|
Tend, Taiwan
|
|
Oil Pump
|
Yuken,Japan
|
|
Hydraulic Valve
|
Biostone, American
|
|
Oil Pump Motor
|
Wuxi Lake, China
|
|
Switch
|
Mingwei,Taiwan
|
|
Intermediate Relay
|
Omron, Japan
|
|
Contactor
|
Schneider, German/ SHIHLIN,Taiwan
|
|
Proximity Sensor
|
Kaifang,Taiwan/Yingming,Taiwan/Shihlin,Taiwan
|
|
Cylinder (Vascular Clamp/Carrier)
|
AIRTAC,Taiwan
|
|
Encoder
|
NEMICON,Japan
|
