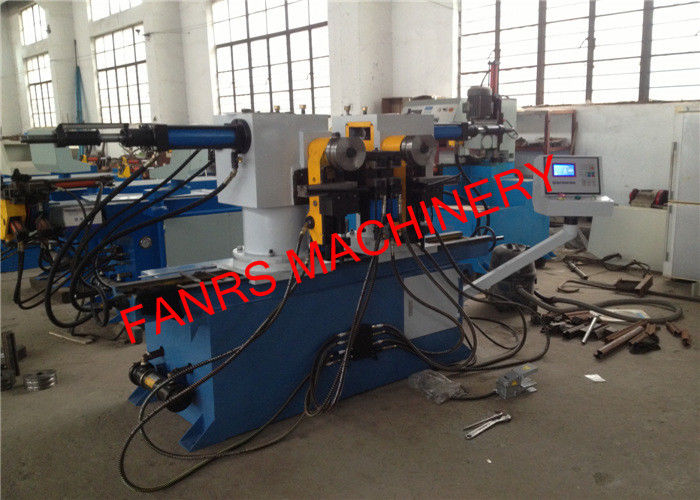

Two Bending Positon Automatic Pipe Bending Machine Without Wrinkles
Main Machine Features:
Our FS38 Two Bending Positon Automatic Pipe Bending Machine is used to produce a series of bending tube, furniture tube, sports equipments tube, air material tube, automobile tube and all other bending tube etc.
A. Machine frame body adopts tower structure, welded by square steel pipe and steel plate, high strength and steady.
B. Perfect material surface treatment, electroplate, black coating, quenching, carburize electrostatic spraying to meeting respective usage and function.
C. Our FS38 Two Bending Positon Automatic Pipe Bending Machine is with automatic alarm system and automatic counting system.

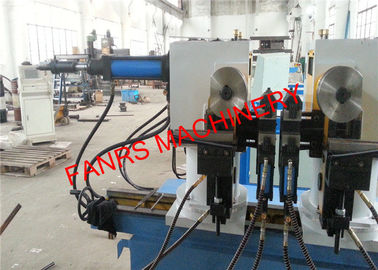

D. Bending molds material is high quality steel, hardness high and long life use, the hardness not below HRC50;mould include bending mould, clamp mould ,guided mould etc.
Clamp die designed with parallelogram, diagonal clamping, fix tight; guided die adopt three (four) disc type chuck structure, clamp high.

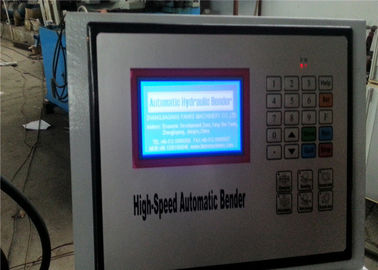

E. With imported PLC logic control system and three-phase electricity control box, the speed of mainframe is adjusted by transducer.
Technical Data:
|
MODEL
|
FS 38
|
|
Max.Bending Dia×Thickness(mm)
|
φ38×3
|
|
Max.Bending Radius(mm)
|
50-260
|
|
Bending Angle
|
0-190
|
|
Max. Feeding Length(mm)
|
2500
|
|
Feeding Axis
|
Speed
(mm/sec)
|
0--1000
|
|
Accuracy(mm)
|
±0.1
|
|
Rotate Axis
|
Speed(°/s)
|
0--150
|
|
Accuracy(°)
|
±0.1
|
|
Bending Axis
|
Speed(°/s)
|
0--60
|
|
Accuracy(°)
|
±0.1
|
|
Voltage
|
380V/50Hz
|
|
Power
|
4Kw
|
|
Machine Size(L*W*H) (mm)
|
4250*1200*1350
|
|
Weight(kg)
|
2000
|
|
Air Pressure
|
0.5--0.7MPa
|
FAQ:
1. Q: Are you a manufacturer or trading company?
A: Yes, we are a manufacturer.
2. Q: What certificate do you have?
A: We have ISO ,SGS and CE certificate.
3. Q: How does your factory do regarding quality control?
A: We have a special QC department in charge of products’ quality.
4. Q: How long is the warranty period?
A: All of our products have one year warranty.
5. Q: How much production capacity of your company one year?
A: This depends on your needs.
6. Q: What’s the main market of your company?
A: We have customers all over the world.
7. Q: Where is your factory located?
A: Our factory is located in Zhangjiagang City, Jiangsu Province, China,
about 2 hours to Shanghai by car.
8. Q: Can we visit your machine operating in your factory?
A: We have own workshop, and we are enthusiastically looking forward to
your visit guidance and business negotiations!
9. Q: How can we visit there?
A: We offer transportation service when you arrive in Shanghai or Jiangsu
Province, China.
