Steel Spiral Tube Former Machine With Automatic Saw Blade Cutting System

Steel Spiral Tube Former Machine With Automatic Saw Blade Cutting System

  • Steel Spiral Tube Former Machine With Automatic Saw Blade Cutting System
  • Steel Spiral Tube Former Machine With Automatic Saw Blade Cutting System
  • Steel Spiral Tube Former Machine With Automatic Saw Blade Cutting System
  • Steel Spiral Tube Former Machine With Automatic Saw Blade Cutting System
Steel Spiral Tube Former Machine With Automatic Saw Blade Cutting System
Product Details:
Place of Origin: Jiangsu China
Brand Name: FANRS MACHINERY
Certification: CE ISO SGS
Model Number: F1500B
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: 15000 to 76500
Packaging Details: Wooden Crates
Delivery Time: 20-30 Working Days
Payment Terms: T/T Western Union
Supply Ability: 15SET/Month
Contact Now
Detailed Product Description
Diameter: 80mm To 1500mm 3 Kinds Of Material: Galvanized Steel, Stainless Steel, Aluminum
PLC: PLC (Mitsubishi) Power: 5.5 Kw
Machine Dimension (LxWxH): 3200mm*1900mm*2600mm Delivery Port: Shanghai Port
PaymentTerm: TT Transportation: Ship By Sea
Cutting: Saw Blade Cutting
High Light:

spiral tube former machine

,

spiral duct machine

Steel Spiral Tube Former Machine With Automatic Saw Blade Cutting System





Machine Consist of Spiral Tube Forming Machine With Automatic Saw Blade Cutting System:

Machine inclusive in Decoiler system, main machine and frame system.



Main Technical Specification of Spiral Tube Forming Machine With Automatic Saw Blade Cutting System:

Model

F1500B

Finished Product Diameter

80 - 1500mm

Max.Unwinding Diameter

1200mm

Finished Product Length

120-8000m

Max.Unwinding Roller Loading

1000kg





Material Thickness

0.4 -1.0mm (Galvanized steel)

                                       0.4mm-0.6mm (Stainless steel)

                                       0.4-1.0mm (Aluminum)

Max.Material Width

140mm

Cutting way

Saw Cutting

Lock Way

Outer (inner also available)

Max.Speed

50m/min

Control System

PLC (Mitsubishi)

Voltage

380V/50Hz (three phase)

Main Motor

5.5 kw

Cutting Motor

4 kw

Weight

2250kg

Machine dimension (LxWxH)

3200mm*1900mm*2600mm



Usage and Feature of Spiral Tube Forming Machine With Automatic Saw Blade Cutting System:

The idea machine is suitable for making spiral tube, pipe, duct widely used in all kinds of industrial.

A. Fully auto material feeding, forming (seaming), lubrication and tube cutting;

B. With length safety system, auto stop when pass setting length;

C. With ideal flying slitter, no noise and hot sparks, pipe end smooth and neat;

D. Adopt photoelectric tracking system;

E. Completed with Mitsubishi PLC Control and Frequency Converter from Japan, speed could be adjusted;

F.With emulsified liquid instead of oil lubrication system, pipe & duct not impossible to wash so that saves

 time and labor;

D. Different mould to meeting respective request, just change mould to make various diameter;

H. Complete with meter cutting length control, meter could be controlled andCalculated when reach set meter, could slit automatically;

I. Complete with all safety features, with emergency stop button;

J. Completed with safety cover to keep operator, when cover open, machine stop automatically;



FAQ:
1.  Q: Are you a manufacturer or trading company?
A:  Yes, we are a manufacturer.

2.  Q: What certificate do you have?
A:  We have ISO ,SGS and CE certificate.

3.  Q: How does your factory do regarding quality control?
A:  We have a special QC department in charge of products’ quality.

4.  Q: How long is the warranty period?
A:  All of our products have one year warranty.

5.  Q: How much production capacity of your company one year?
A:  This depends on your needs.

6. Q: What’s the main market of your company?
A:  We have customers all over the world.

7.  Q: Where is your factory located?
A: Our factory is located in Zhangjiagang City, Jiangsu Province, China,
about 2 hours to Shanghai by car.

8.  Q: Can we visit your machine operating in your factory?
A:  We have own workshop, and we are enthusiastically looking forward to
your visit guidance and
 business negotiations!

9.  Q: How can we visit there?
A:  We offer transportation service when you arrive in Shanghai or Jiangsu
Province, China.

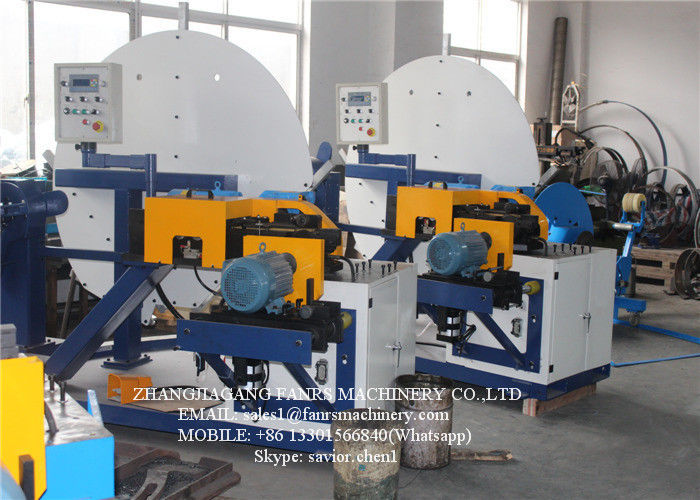

Steel Spiral Tube Former Machine With Automatic Saw Blade Cutting System 0

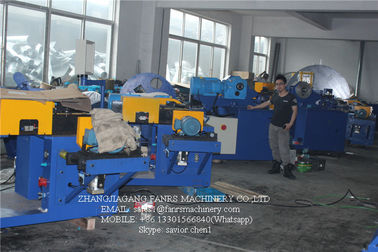

Steel Spiral Tube Former Machine With Automatic Saw Blade Cutting System 1

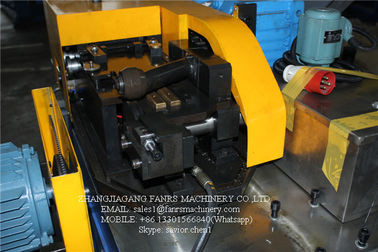

Steel Spiral Tube Former Machine With Automatic Saw Blade Cutting System 2

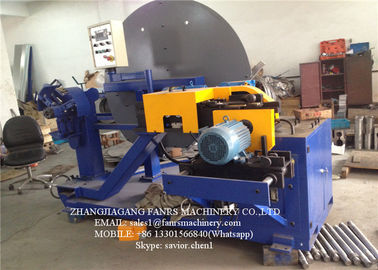

Steel Spiral Tube Former Machine With Automatic Saw Blade Cutting System 3
