Place of Origin: | China |
Brand Name: | YEYI |
Model Number: | YEYI-315x2.25x1.9x80Z |
Minimum Order Quantity: | 10 PCS |
---|---|
Price: | Negotiable |
Packaging Details: | Plastic pipe+ plastic bag+ paper box+ carton |
Payment Terms: | T/T |
Steel Plate: | Imported Steel Core With Good Balance And Flatness | Tips: | High Quality Carbide Tips Or Imported Tips |
---|---|---|---|
Equipments: | Auto Welding And Auto Grinding Machines | Quality: | Extra Long Cutting Life In Good Sharpness |
Highlight: | metal cutting circular saw blades |

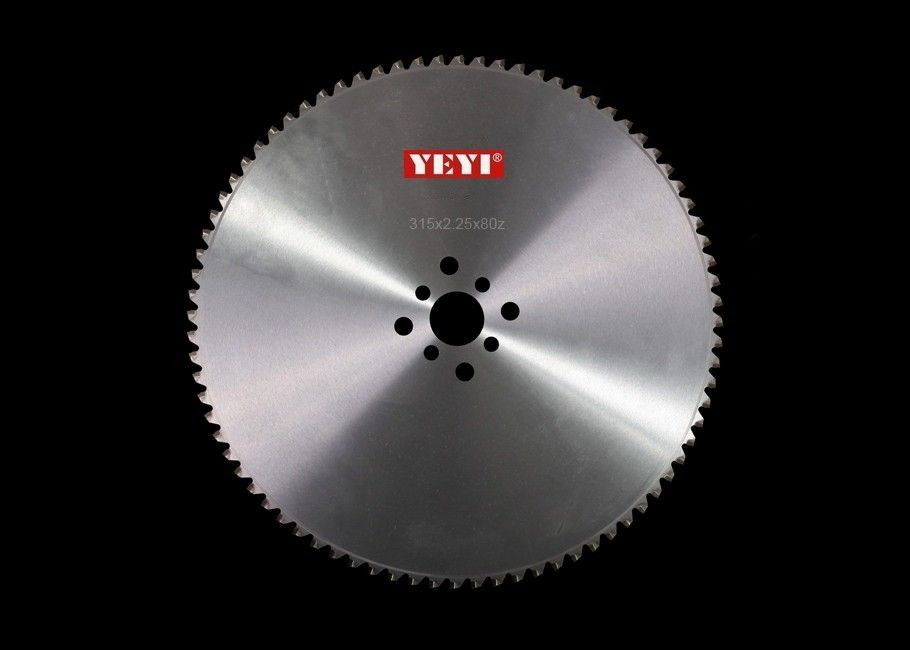

315mm Steel Bar Metal Cutting Saw Blades / Circular Saw Blade For CNC Cutting Machine
Specifications:
315x2.25x1.9x80Z
Product details:
Diameter |
Kerf |
Plate |
Teeth number |
Teeth type |
Hook Angle |
Recommend RPM |
Machine |
Cutting material |
315mm |
2.25mm |
1.9mm |
80 |
Cermet tip |
250 |
NISHIJIAMA,TSUNE, DELTA,ANDERSON, I.T.E.C,AMADA,MEGA, SOCO,FONGHO, and other suitable metal cutting machine. |
Steel pipe or bar |
Descriptions:
A cold saw is a sawing machine that uses a circular saw blade to cut metal. The name "cold saw" comes from the cutting process they employ. These sawing machines transfer the heat generated by cutting to the chips created by the saw blade. Therefore, the blade and material being cut remain cold, unlike an abrasive saw, which abrades the metal and creates a great deal of heat in the metal and cutting blade.
The new YEYI cermet tipped metal cutting cold saw blade leads the great job for the metal cutting work. Saw blade body use SKS5 or SKS51 steel which is imported from Japan. And with YEYI unique tension technology, the saw blade has a stable and quiet response when cutting.
Unique shape and angle of cermet tip are quite different form the HSS saw blade. Metal cutting could be much easier while using YEYI metal cutting cold saw blade.
The tip using is Cermet tip which is imported from Japan. What is cermet tip?
The cermet is a composite material composed of ceramic (cer) and metallic (met) materials. The cermet is ideally designed to have the optimal properties of both ceramic, such as high temperature resistance and hardness, and those of a metal, such as the ability to undergo plastic deformation. The metal is used as a binder for an oxide, boride, or carbide. Generally, the metallic elements used are nickel, molybdenum, and cobalt. Depending on the physical structure of the material, cermets can also be metal matrix composites, but cermets are usually less than 20% metal by volume.
Cold saw using the cermet tip in order to keep the stability of metal cutting and keep the saw blade cool all the time. So it can increase the cuttinglife.
We use imported brazing machine for brazing the tip and use the Japanese grinding machine for grinding the saw blade teeth.
Application:
Suitable cutting machine: NISHIJIMA, TSUNE, AMADA, ANDERSON, I.T.E.C, FONGHO, SOCO,EVERSIING, MEGA, DELTA Webo and other metal cutting machines.
Cutting materials: steel bar or pipe.
Advantage:
Cutting material recommend:
Diameter | Teeth | Recommend diameter of material |
315mm | 80 | 30~65MM |
Machines recommend:
Diameter | Machine manufacturer | Machine model |
315mm | Bewo | DB-70 |
*The list haven't show the all machines. All the metal cutting cold saw machines can use our saw blade.
Benefit:
Different from band saw and metal saw (hss). The cold saw blade will give you lots of benefit.
One cold saw mahine can replaces three band saws or metal sawmachines.
1. Less space
2. Less labor
3. Less environmental pollution
4. Less captial outlay
5. lower cost per cut
6. Saving the cutting time.
Contact us today to obtain the quality product from YEYI!
Contact Person: Mr. Ma
Tel: 1365378334
Fax: 86-21-3106937
