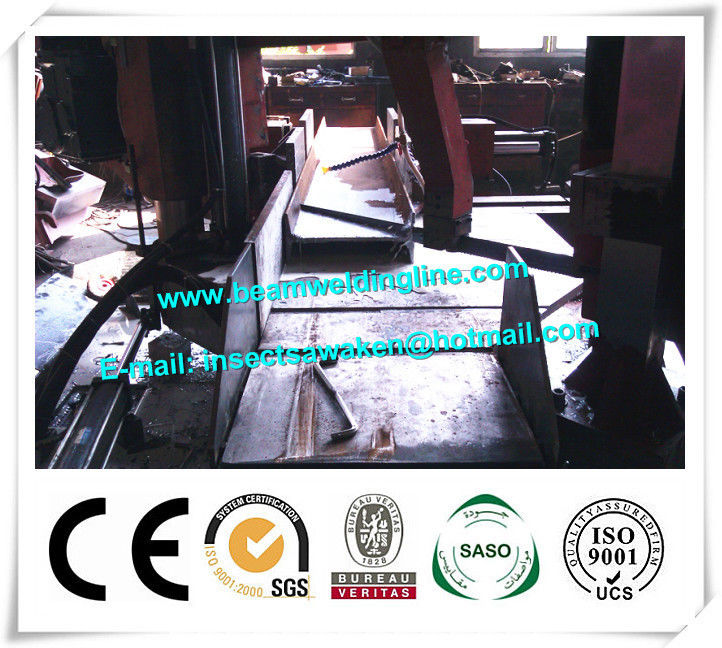

Metal Band Saw Machine

H Beam Angle Metal Band Saw Machine / Box Beam Production Line Automatic

1. Main Feature

a. Metal cutting including stainless steel, alloy, tube, square metals, H beam, Channel and others
b. Hydraulic control the vice clamp
c. PLC control the operation to be high precision
d. Passed CE, ISO9001, SGS
e. Can rotate 0-45 degree
f. Auto feeding and cutting, hold clamping device

2. Main specification

a. Max. cutting capacity
● 90°: 500*700 mm
● 45°: 500*500mm
● 30°: 500*550mm

b. Saw blade
● Speed: 18-80 frequency converter step less speed
●Size: 1.3*41*5750mm
● Tension: hydraulic
●Cleaning: wire brush and flood coolant

c. Motor output
● Saw blade: 4Kw
● Hydraulic: 1.5Kw
● Coolant

d. Feeding
● Length: 400
● Mode: manual

e. Machine weight: 3500kg

f. Vice control: hydraulic

g. Machine size: 3160*1750*2180

f. Machine accessories
● Machine tool box
● Feeder table
● Wire brush
● Operation instruction
● One piece of saw blade
