Shanghai Feng Yuan Saw Blades Products Co. ltd
High quality, Best service,Reasonable price.
 |
| Place of Origin: | China |
| Brand Name: | Hengyang |
| Certification: | ISO9901-2000 |
| Model Number: | DW20WNC |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Accoeding to customers' requests |
| Delivery Time: | 60 days |
| Payment Terms: | 30% advanced payment by TT, 70% before shipment |
| Supply Ability: | 20 per month |
| High Light: | pipe bending equipment,tube bending machinery |
||
|---|---|---|---|

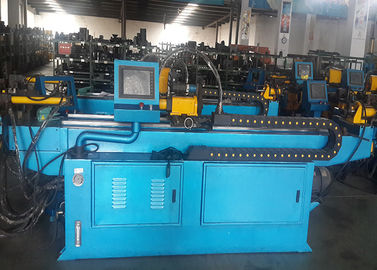

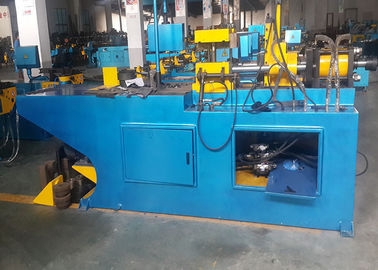

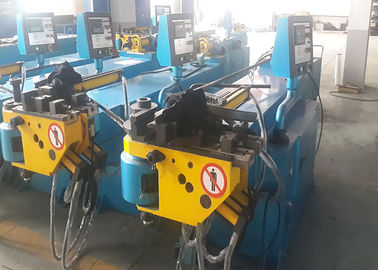

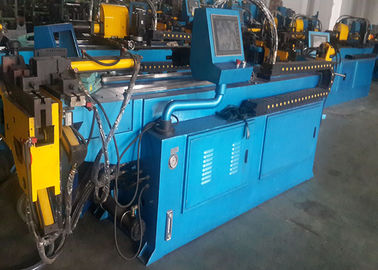

Horizontal Manual Pipe Bending Machine CE 12MPa ,SS Hydraulic Pipe Bender
Quick Details
Condition: New Place of origin: Jiangsu China
Model Number: DW20WNC Machine Type: Pipe and Tube Bending Machine
Raw Material: Pipe Power: Hydraulic
Certification: CE&ISO Technical: Cold and Heating Bending
Cooling System: water cooling Extra Services: End Forming
Technical parameters:
|
Model |
DW20WNC |
|
The maximum bending capacity (mm) |
Φ 38×2 |
|
Bending radius (mm) |
R25-200 |
|
The maximum bending angle (deg) |
195º |
|
The maximum effective distance mandrel (mm) |
1650 |
|
Bending accuracy (+/-Deg ) |
0.1 |
|
Bending speed (/sec) |
65º |
|
Motor Power (kw) |
4 |
|
Hydraulic Pressure (MPa) |
12 |
|
Machine size of about (mm) |
2400×700×920 |
|
Weight Approx ( kg) |
800 |
|
Clamping stroke (mm) |
55 |
|
Oil Pump |
P214RP01DT |
|
Control Power (V) |
AC110 |
|
Fuel tank capacity (L) |
80 |
|
Hydraulic Oil |
32# Hydraulic oils (winter)46# Hydraulic oils (summer) |
Features:
1. Text display, PLC control, machine operation is very stable.
2. Choose a variety of functions with manual, automatic, semi-circle, full circulation.3. Five kinds of angle setting (0-185 degrees arbitrarily chosen) may also select multiple consecutive single choice.
4. Mobile pedal switch, with automatic start, emergency stop, emergency stop continued three functions, safe.
5. A cooling circulation system, more stable running of the machine
6. Mold replacement is simple and convenient, to facilitate flexible production.
7. Head, elbow arm compact design provides maximum bending space.
Works description:
The machine consists of main transmission mechanism, mandrel body, top feed mechanism, the main part of the clip feeding mechanism, electrical systems and hydraulic systems. In operation, the rotation of the motor driven pump, pressure oil is supplied, the microcomputer (PLC) to issue instructions to control the solenoid valve to open, close, so that the cylinders in a certain order and regularity actions to achieve the purpose of the bend.
Overview:
DW20WNC single-head hydraulic pipe bender microcomputer control, hydraulic drive, Chinese subtitles, interactive operation, to achieve the cold state of pipes, profiles of bending. Text display can be set to a variety of angles, Mobile pedal switch with start, stop, stop three functions continue to make flexible, convenient, and reliable is an economical, practical pipe, profile processing equipment.
Contact Person: Mr. Ma
Tel: 1365378334
Fax: 86-21-3106937
