Place of Origin: | China |
Brand Name: | YEYI |
Model Number: | YEYI-STB |
Minimum Order Quantity: | 200 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Carton |
Payment Terms: | T/T |
Steel Plate: | Quality Steel Core With Good Flatness | Formulation: | High Quality Fomulated Segment |
---|---|---|---|
Machines: | Advanced Hot Pressed Sintering Production Line | Performance: | Extra Long Cutting Life With Good Sharpness |
Highlight: | diamond blade grinder |

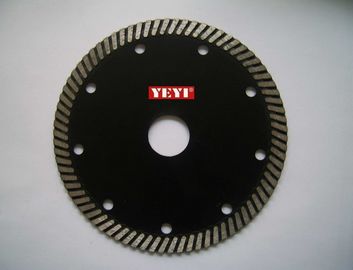

105mm Turbo Diamond Saw Blades , Sintered Hot Pressed, Narrow Teeth 4" For Dry Or Wet Cutting
Application:
The diamond saw blades are produced by Hot pressed sintered craftsman which provide the diamond blades in similar performance as laser weld diamond blades, but keep the price lower than laser weld blades. The narrow turbo teeth design are suitable for wide applications such as for cutting kinds of Hard, Medium Hard, Soft Stone, like Granite, Marble, Sandstone, and ceramic, concrete, asphalt, brick, etc. on the manual cutting machines.
Specifications:
Diameter(D) |
Arbor (H) |
Core |
Segments Size(mm) |
Art. |
||
Inch |
mm |
mm |
mm |
Width(T) |
Height(W) |
|
4” |
105 |
16/20/22.23 |
1.2 |
2.2 |
7.5 |
STB105 |
4-3/8” |
110 |
16/20/22.23 |
1.4 |
2.2 |
7.5 |
STB110 |
4-1/2” |
115 |
20/22.23 |
1.4 |
2.4 |
7.5 |
STB115 |
5” |
125 |
20/22.23 |
1.4 |
2.4 |
7.5 |
STB125 |
6” |
150 |
20/22.23 |
1.4 |
2.4 |
7.5 |
STB150 |
7” |
180 |
16/22.23/25.4/30 |
1.6 |
2.6 |
8.0 |
STB180 |
8” |
200 |
22.23/25.4/30 |
1.8 |
2.8 |
8.0 |
STB200 |
9” |
230 |
22.23/25.4/30/50 |
1.8 |
3.1 |
8.0 |
STB230 |
The above specifications are only for reference, other or special specifications could be supplied upon customers requests.
Advantages:
Please offer us below information while making the inquiry:
Diameter
Inner hole
Cutting materials (granite, marble, sandstone, limestone, slate, Etc.)
Type and Shape
Order quantity
Motor Power/rotation speed
Expected delivery time
Special requirement
Contact us today to obtain the quality product from YEYI!
