Industrial CNC Pipe Bending Machine Forming Square Rectangle Tube



Quick Detail:



CNC tube bending machine

Full automatic 3D bending

Suitable for different material, carbon steel, stainless steel, aluminum, copper and so on

Using imported hydraulic system, electrics, servo motors, PLC and so on

Working fast and precisely





Description:

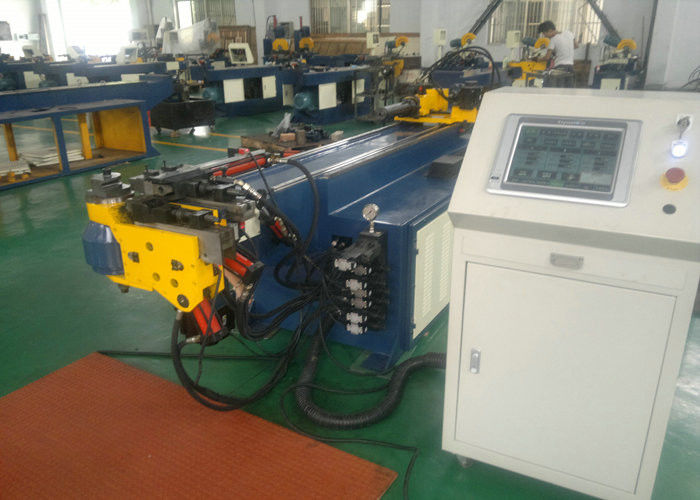

SB50CNC-TSR-3A is the automatic 3D tube bender

The body of SB50CNC-TSR-3A is made through welding, the mechanical part through assembly; using imported hydraulic system and electronic control system.

The features of SB50CNC-TSR-3A are listed:

1. Fully automatic and CNC tube bending machine;

2. Feeding: servo motor equipped with the ball screw;

Rotation: servo motor drive with reducer.

(servo motors are all from Mitsubishi);

3. Bending: Servo motor bending with reducer;

4. Equipped with 3 programmable axis;

5. Imported hydraulic system, electric system and PLC unit;

6. Automatic lubrication system for moving areas;

7. Self-diagnostic system, detecting the error immediately;

8. Multiple groups pipe-bending information storage;

9. Touch screen and human/machine interface control provide user friendly operations;

10. Electric cabinet cooling fan and the hydraulic cooling system ensure the equipment long-time work stably under the high temperature.





Technical parameters



Parameters	SB50CNC-TSR-3A
Max bending capability	φ50×2 mm
Bending radius	35~200 mm
Bending angle	0~195°
Max clip pipe length	2200 mm
Bending speed	70°/sec
Bending accuracy	±0.15°
Feeding speed	200~800 mm/sec
Feeding accuracy	±0.2 mm
Rotating speed	270°/sec
Rotating accuracy	±0.15°
Rotating motor power	750W
Feeding motor power	1500W
Main motor power	5.5Kw
System hydraulic pressure	12MPa
Size	4400×1200×1300
Weight	1860kgs





Applications:



The machine SB50CNC-TSR-3A is widely used in the office furniture tube bending, indoor furniture tube bending, automotive tube bending, air conditioner tube bending, wire bending, car seats frame bending and some other industries.





Competitive Advantage:



The machine SB50CNC-TSR-3A has reasonable body design, which makes the bending space larger.



Stable hydraulic system ensures the machine working fast and free from hydraulic faults.



Important electric system makes more universality and accuracy.



Every part of the machine SB50CNC-TSR-3A is detected strictly before used.
