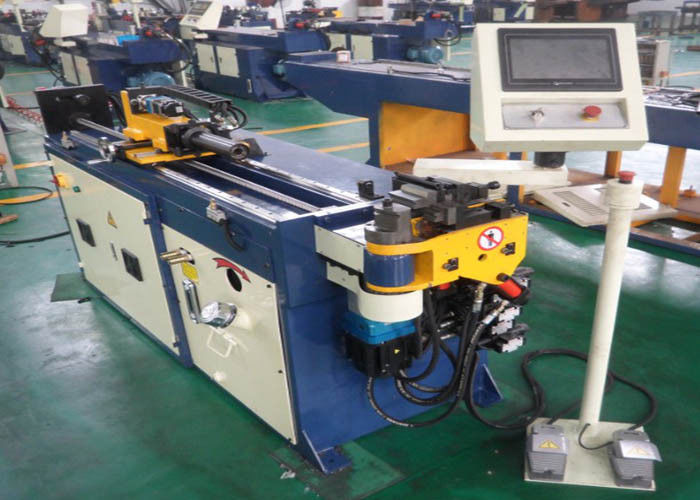

Stainless Steel CNC Metal Pipe Bending Machine , Hydraulic Electric Mandrel Tube Bender

Stainless Steel CNC Metal Pipe Bending Machine , Hydraulic Electric Mandrel Tube Bender

  • Stainless Steel CNC Metal Pipe Bending Machine , Hydraulic Electric Mandrel Tube Bender
Stainless Steel CNC Metal Pipe Bending Machine , Hydraulic Electric Mandrel Tube Bender
Product Details:
Place of Origin: Jiangsu Province, China
Brand Name: Lantian Machine
Certification: ISO9001, CE
Model Number: SB38CNC-TSR-3A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Iron case or wooden case suitable for shipment
Delivery Time: 20 workdays
Payment Terms: 30% advance and 70% before shipment
Supply Ability: 58 set/sets per year
Contact Now
Detailed Product Description
Machine Type: Bending Machine Material Processed: Carbon Steel|stainless Steel|aluminum|copper
Name: CNC Pipe Bending Machine|stainless Steel Pipe Bending Machine Power: Hydraulic|servo Motor|PLC|electric
Raw Material: Pipe|Tube Max Clip Pipe Length: 2000 Mm
High Light:

pipe bending equipment

,

tube bending machinery





Stainless Steel CNC Pipe Bending Machine , Hydraulic Electric Mandrel Tube Bender



Quick Detail:



CNC tube bending machine

Full automatic 3D bending

Suitable for different material, carbon steel, stainless steel, aluminum, copper and so on

Using imported hydraulic system, electrics, servo motors, PLC and so on

Working fast and precisely





Technical parameters



Parameters

SB38CNC-TSR-3A



Max bending capability

Φ38×2 mm



Bending radius

25~150 mm



Bending angle

0~195°



Max clip pipe length

2000 mm



Bending speed

90°/sec



Bending accuracy

±0.15°



Feeding speed

200~1000 mm/sec



Feeding accuracy

±0.2 mm



Rotating speed

300°/sec



Rotating accuracy

±0.15°



Rotating motor power

400W



Feeding motor power

1000W



Main motor power

4.0Kw



System hydraulic pressure

12Mpa



Size

3600×1100×1300mm



Weight

1580kgs







Description:



SB38CNC-TSR-3A is the automatic 3D tube bender

The body of SB38CNC-TSR-3A is made through welding, the mechanical part through assembly; using imported hydraulic system and electronic control system.

The features of SB28CNC-TSR-3A are listed:

1. Fully automatic and CNC tube bending machine;

2. Bending: Servo motor bending with reducer; 3. Feeding: servo motor equipped with the ball screw;

Rotation: servomotor drive with reducer.

(servo motors are all from Mitsubishi);

4. Equipped with 3 programmable axis;

5. Imported hydraulic system, electric system and PLC unit;

6. Automatic lubrication system for moving areas;

7. Electric cabinet cooling fan and the hydraulic cooling system ensure the equipment long-time work stably under the high temperature;

8. Multiple groups pipe-bending information storage;

9. Touch screen and human/machine interface control provide user friendly operations;

10. Self-diagnostic system, detecting the error immediately.





Applications:



The machine SB38CNC-TSR-3A is widely used in the chemical industry tube bending, power plants tube bending, automotive tube bending, air conditioner tube bending, wire bending, car seats frame bending and some other industries.





Competitive Advantages:



1.The machine SB38CNC-TSR-3A has reasonable body design, which makes the bending space larger.



2.Stable hydraulic system ensures the machine working fast and free from hydraulic faults.



3.Important electric system makes more universality and accuracy.



4.Every part of the machine SB38CNC-TSR-3A is detected strictly before used.





FAQ:



1. Q: Are you a factory or trading company?

A: Yes, we are a factory.

2. Q: What certificate do you have?

A: We have both ISO and CE certificate.

3. Q: How does your factory do regarding quality control?

A: We have a special QC department in charge of products’ quality.

4. Q: How long is the warranty period?

A: All of our products have one year warranty.

5. Q: How much production capacity of your company one year?

A: This depends on your needs.

6. Q: Whats the main market of your company?

A: We have customers all over the world.

7. Q: Where is your factory located?

A: Our factory is located in Zhangjiagang City, Jiangsu Province, China, about 2 hours to Shanghai by car.

8. Q: Can we visit your machine operation in your factory?

A: We have own workshop, and we are enthusiastically looking forward to your visit guidance and business negotiations!

9. Q: How can we visit there?

A: We offer transportation service when you arrive in Shanghai or Jiangsu Province, China.
