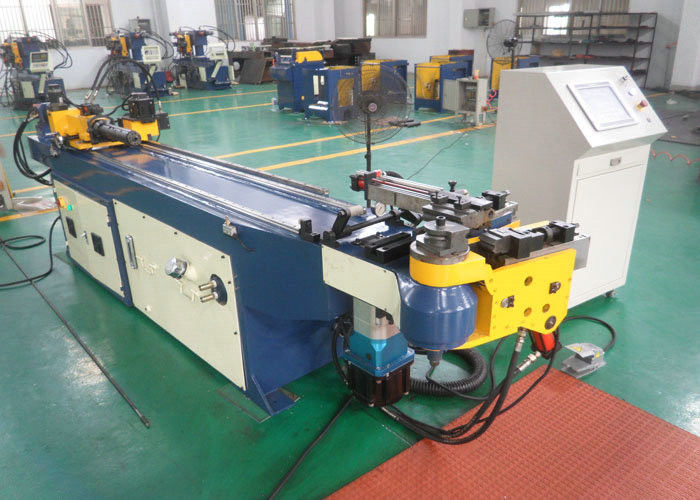

Furniture Stainless Steel / Aluminum Tube CNC Pipe Bending Machine



Furniture Stainless Steel / Aluminum Tube CNC Pipe Bending Machine



Quick Detail:



CNC tube bending machine

Suitable for different material, carbon steel, stainless steel, alloy, aluminum, copper and so on

Using imported hydraulic system, electrics, servo motors, PLC and so on

Full automatic 3D bending, Working fast and accurately





Technical parameters





Parameters	SB38CNC-TSR
Max bending capability	Φ38×2 mm
Bending radius	25~150 mm
Bending angle	0~195°
Max clip pipe length	2000 mm
Bending speed	90°/sec
Bending accuracy	±0.15°
Feeding speed	200~1000 mm/sec
Feeding accuracy	±0.2 mm
Rotating speed	300°/sec
Rotating accuracy	±0.15°
Rotating motor power	400W
Feeding motor power	1000W
Main motor power	4.0Kw
System hydraulic pressure	12Mpa
Size	3600×1100×1300mm
Weight	1580kgs





Description:



SB38CNC-TSR is the automatic 3D tube bender

The body of SB38CNC-TSR is made through welding, the mechanical part through assembly; using imported hydraulic system and electronic control system.

The features of SB38CNC-TSR are listed:

1. Fully automatic and CNC tube bending machine;

2. Bending: Servo motor bending with reducer;

3. Feeding: servo motor equipped with the ball screw;

Rotation: servomotor drive with reducer.

(servo motors are all from Mitsubishi);

4. Equipped with 2 programmable axis;

5. Imported hydraulic system, electric system and PLC unit;

6. Automatic lubrication system for moving areas;

7. Self-diagnostic system, detecting the error immediately;

8. Electric cabinet cooling fan and the hydraulic cooling system ensure the equipment long-time work stably under the high temperature;

9. Touch screen and human/machine interface control provide user friendly operations;

10. Multiple groups pipe-bending information storage.





Applications:



The machine SB38CNC-TSR is widely used in the air-conditioning tube bending, small furniture tube bending, automotive tube bending, wire bending, car seats frame bending, chair frame bending and some other industries.





Competitive Advantage:



1.The machine SB38CNC-TSR has reasonable body design, which makes the bending space larger.



2.Stable hydraulic system ensures the machine working fast and free from hydraulic faults.



3.Important electric system makes more universality and accuracy.



4.Every part of the machine SB38CNC-TSR is detected strictly before used.





FAQ:



1. Q: Are you a factory or trading company?

A: Yes, we are a factory.

2. Q: What certificate do you have?

A: We have both ISO and CE certificate.

3. Q: How does your factory do regarding quality control?

A: We have a special QC department in charge of products’ quality.

4. Q: How long is the warranty period?

A: All of our products have one year warranty.

5. Q: How much production capacity of your company one year?

A: This depends on your needs.

6. Q: What’s the main market of your company?

A: We have customers all over the world.

7. Q: Where is your factory located?

A: Our factory is located in Zhangjiagang City, Jiangsu Province, China, about 2 hours to Shanghai by car.

8. Q: Can we visit your machine operation in your factory?

A: We have own workshop, and we are enthusiastically looking forward to your visit guidance and business negotiations!

9. Q: How can we visit there?

A: We offer transportation service when you arrive in Shanghai or Jiangsu Province, China.
