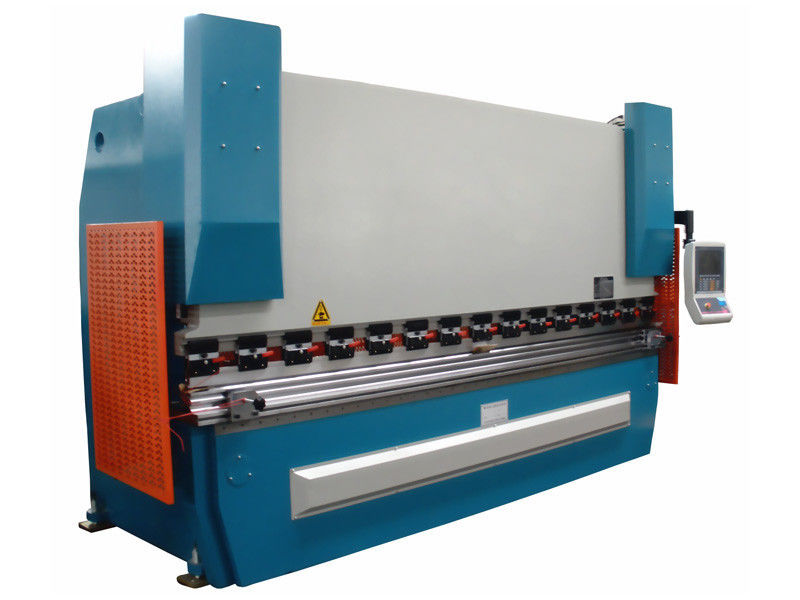

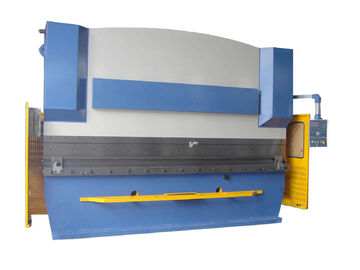

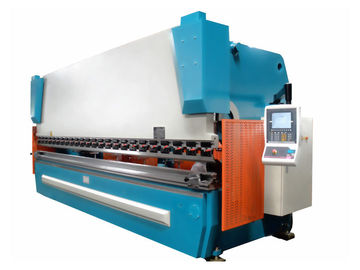

Automatic CNC hydraulic press brake bending machine for Pipe and tube 1250KN

Automatic CNC hydraulic press brake bending machine for Pipe and tube 1250KN

    • Automatic CNC hydraulic press brake bending machine for Pipe and tube 1250KN
    • Automatic CNC hydraulic press brake bending machine for Pipe and tube 1250KN
    • Automatic CNC hydraulic press brake bending machine for Pipe and tube 1250KN
    • Automatic CNC hydraulic press brake bending machine for Pipe and tube 1250KN
  • Automatic CNC hydraulic press brake bending machine for Pipe and tube 1250KN

    Product Details:

    Place of Origin: China
    Brand Name: GSC
    Certification: CE
    Model Number: 150T

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: Simple packing and also according to client's requirement
    Delivery Time: 30days
    Payment Terms: L/C, T/T
    Supply Ability: 1
    Contact Now
    Detailed Product Description
    Condition: New Material: Common Use
    Extra Service: Machinning Nominal Pressure: 1250KN
    Throat Depths: 320mm Size: 4050X1400X2300
    Bending Machines: Small-scale 4000mm Iron Pipe Bending Machine Place Of Origin: China
    Machine Type: Pipe And Tube Bending Power: Hydraulic
    Certification: ISO9001:2000 Main Motor Power: 11kw
    Raw Material: Steel Bar Automation: Automatic
    Weight: 7Ton

    Automatic CNC hydraulic press brake bending machine for Pipe and tube 1250KN





    Performance



    1     All steel welded structure, vibrating treatment of ageing for removal of internal stress with high strength and good rigidity.



    2     Torsion shaft forced synchronization of mechanical limit stopper balance with high precision.



    3     Integrated hydraulic transmission system, large range of speed regulation to transmission of the sliding block, stable and reliable performance.



    4     Rear stopper and the sliding block have electrical adjustment for their stroke with manual fine tuning and digital indication.



    5     Adjustment mechanism of sliding block independent from oil cylinder assembly to enhance sealing effect upper mold is fitted with titling warp offset mechanism.



    6     Multi machine combined operation is possible.



    7     Safe guide is optional.



    Sell service:



    1, the suppliers offer operation manual and quality certification



    2, the suppliers  offer one set of wear Annex and one set of installation and maintenance tools.



    3, guarantee :one year as from the date of installation and acceptance.



    Payment :



    30% T/T as advance, 70% T/T before delivery.



    delivery time:

    30 days.



    The Parameter:



    NO Items Parameter Unit
    1 Specification WC67Y-125t/4000 1set
    2 Nominal Pressure 1250 kn
    3 Ram Stroke 120 mm
    4 Max open Height 380 mm
    5 Distance Between Uprights 3000 mm
    6 Throat Depths 320 mm
    7 Length of working table 4000 mm
    8 Main Motor Power 11 kw
                               L 4050 mm
    9 Size                  W 1400 mm
                               H 2300 mm
    10 Weight 7000 kg


    Automatic CNC hydraulic press brake bending machine for Pipe and tube 1250KN

    Automatic CNC hydraulic press brake bending machine for Pipe and tube 1250KN

    Automatic CNC hydraulic press brake bending machine for Pipe and tube 1250KN
