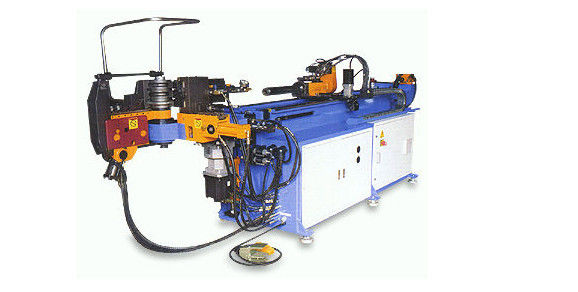

CNC Pipe Bending Machine With Punching Holes On Pipe

CNC Pipe Bending Machine With Punching Holes On Pipe

    • CNC Pipe Bending Machine With Punching Holes On Pipe
    • CNC Pipe Bending Machine With Punching Holes On Pipe
    • CNC Pipe Bending Machine With Punching Holes On Pipe
    • CNC Pipe Bending Machine With Punching Holes On Pipe
  • CNC Pipe Bending Machine With Punching Holes On Pipe

    Product Details:

    Place of Origin: Jiangsu,China
    Brand Name: FANRS MACHINERY
    Certification: CE,ISO,SGS
    Model Number: CNC 50TSR

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiation
    Packaging Details: Wooden Case
    Delivery Time: 30 Days
    Payment Terms: T/T(30%,70%)
    Supply Ability: 50 Sets/Year
    Contact Now
    Detailed Product Description
    Max.Bending Dia×Thickness(mm): φ50×3 Max.Bending Radius(mm): 50-260
    Bending Angle: 0-190 X: X
    Voltage: 380V/50Hz Machine Size(L*W*H) (mm): 4250*1200*1350
    Weight(kg): 2000


     CNC Pipe Bending Machine With Punching Holes On Pipe



    Technical Parameters:

    MODEL

    CNC 50 TSR

    Max.Bending Dia×Thickness(mm)

    φ50×3

    Max.Bending Radius(mm)

    50-260

    Bending Angle

    0-190

    Max. Feeding Length(mm)

    2500

    Feeding Axis

    Speed
    (mm/sec)

    0--1000

    Accuracy(mm)

    ±0.1

    Rotate Axis

    Speed(°/s)

    0--150

    Accuracy(°)

    ±0.1

    Bending Axis

    Speed(°/s)

    0--60

    Accuracy(°)

    ±0.1

                  Voltage

    380V/50Hz

    Power

    4Kw

    Machine Size(L*W*H) (mm)

    4250*1200*1350

    Weight(kg)

    2000

    Air Pressure

    0.5--0.7MPa




    Introduction:

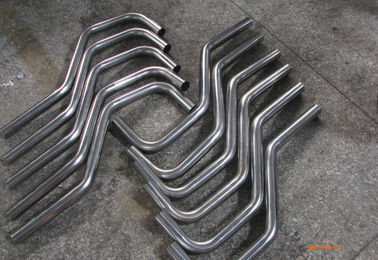

    It is used to produce a series of bending tube, furniture tube, sports equipments tube, air material tube, automobile tube and all other bending tube etc.


    1.PLC logic control system and three-phase electricity control box, the speed of mainframe is adjusted by transducer.

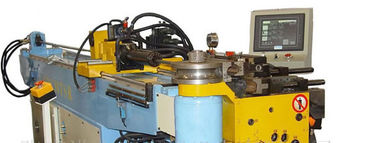

    2.Touch-screen 10.4” of TAIWAN, graph operating system, leading interface designs and several kinds of functions tentacles controllable, so as to easy to operate, automatic to memory and reserve, automatic to alarm and so on.



    3.CNC computer digital control system and SMS synchronized follow bending system.



    4.Complete with automatic counting system, finished products display on panel.



    5.Servo system to finish feeding, rotating and bending.



    6.Machine frame body adopts tower structure, welded by square steel pipe and steel plate, high strength and steady.



    7.Mould material use high quality steel, hardness high and long life use, the hardness not below HRC50;mould include bending mould, clamp mould ,guided mould etc.

    Clamp die designed with parallelogram, diagonal clamping, fix tight; guided die adopt three (four) disc type chuck structure, clamp high.



    8.It is with automatic alarm system and automatic counting system.



    9.Ideal and perfect material surface treatment, electroplate, black coating, quenching, carburize electrostatic spraying to meeting respective usage and function.



    CNC Pipe Bending Machine With Punching Holes On PipeCNC Pipe Bending Machine With Punching Holes On Pipe
