3D Mandrel Pipe Bender CNC Pipe Bending Machine For Bar / Wire Bending



3D Mandrel Pipe Bender CNC Pipe Bending Machine For Bar / Wire Bending



Quick Detail:



CNC tube bending machine

Full automatic 3D bending

Suitable for different material, carbon steel, stainless steel, aluminum, copper and so on

Using imported hydraulic system, electrics, servo motors, PLC and so on

Working fast and precisely





Description:

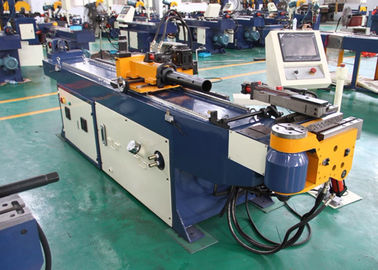

SB75CNC-TSR is the automatic 3D tube bender

The body of SB75CNC-TSR is made through welding, the mechanical part through assembly; using imported hydraulic system and electronic control system.

The features of SB75CNC-TSR are listed:

1. Fully automatic and CNC tube bending machine;

2. Equipped with 2 programmable axis;

3. Imported hydraulic system, electric system and PLC unit;

4. Automatic lubrication system for moving areas;

5. Self-diagnostic system, detecting the error immediately;

6. Feeding: servo motor equipped with the ball screw;

Rotation: servomotor drive with reducer.

(servo motors are all from Mitsubishi);

7. Bending: Servo motor bending with reducer;

8. Touch screen and human/machine interface control provide user friendly operations;

9. Multiple groups pipe-bending information storage;

10. Electric cabinet cooling fan and the hydraulic cooling system ensure the equipment long-time work stably under the high temperature.





Technical parameters



Parameters	SB75CNC-TSR
Max bending capability	φ75×3 mm
Bending radius	50~300 mm
Bending angle	0~195°
Max clip pipe length	3300 mm
Bending speed	25°/sec
Bending accuracy	±0.15°
Feeding speed	200~800 mm/sec
Feeding accuracy	±0.2 mm
Rotating speed	240°/sec
Rotating accuracy	±0.15°
Rotating motor power	1kw
Feeding motor power	1.5kw
Main motor power	7.5Kw
System hydraulic pressure	14MPa
Size	5500×1650×1350
Weight	3260kg





Applications:



The machine SB75CNC-TSR is widely used in the sports equipment tube bending, medical equipment tube bending, automotive tube bending, air conditioner tube bending, wire bending, car seats frame bending and some other industries.





Competitive Advantage:



1. The machine SB75CNC-TSR has reasonable body design, which makes the bending space larger.



2. Stable hydraulic system ensures the machine working fast and free from hydraulic faults.



3. Important electric system makes more universality and accuracy.



4. Every part of the machine SB75CNC-TSR is detected strictly before used.





FAQ:



1. Q: Are you a factory or trading company?

A: Yes, we are a factory.

2. Q: What certificate do you have?

A: We have both ISO and CE certificate.

3. Q: How does your factory do regarding quality control?

A: We have a special QC department in charge of products’ quality.

4. Q: How long is the warranty period?

A: All of our products have one year warranty.

5. Q: How much production capacity of your company one year?

A: This depends on your needs.

6. Q: What’s the main market of your company?

A: We have customers all over the world.

7. Q: Where is your factory located?

A: Our factory is located in Zhangjiagang City, Jiangsu Province, China, about 2 hours to Shanghai by car.

8. Q: Can we visit your machine operation in your factory?

A: We have own workshop, and we are enthusiastically looking forward to your visit guidance and business negotiations!

9. Q: How can we visit there?

A: We offer transportation service when you arrive in Shanghai or Jiangsu Province, China.
