Home ProductsCNC Carbide Bits

High Precision Solid Carbide Drills Inner Cooling Fixed Shank Drill Bit with Two Hole

High Precision Solid Carbide Drills Inner Cooling Fixed Shank Drill Bit with Two Hole

    • High Precision Solid Carbide Drills Inner Cooling Fixed Shank Drill Bit with Two Hole
    • High Precision Solid Carbide Drills Inner Cooling Fixed Shank Drill Bit with Two Hole
    • High Precision Solid Carbide Drills Inner Cooling Fixed Shank Drill Bit with Two Hole
    • High Precision Solid Carbide Drills Inner Cooling Fixed Shank Drill Bit with Two Hole
  • High Precision Solid Carbide Drills Inner Cooling Fixed Shank Drill Bit with Two Hole

    Product Details:

    Place of Origin: China
    Brand Name: INMIND
    Certification: SGS Factory Certificater
    Model Number: Inner Cooling type 3mm to 20mm

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs per specification wthin 12mm
    Price: Negotiable
    Packaging Details: 1 piece packing
    Delivery Time: For Samples: 3-5 days For Batch:10 to 15 days.
    Payment Terms: T/T 100% Advinced,Paypal,Western Union
    Supply Ability: 50000pcs/month
    Contact Now
    Detailed Product Description
    Features: High Precision Application: Stainless Steel
    Coating: Tialn Coated Helix Angle: 25, 35
    HRC: HRC50 Material: Solid Carbide, Carbide
    Processing Mode: CNC Product Name: Solid Carbide Drills



    High Precision Solid Carbide Drills Inner Cooling Fixed Shank Drill Bit with Two Hole



    Quick Detail:



    0.6-0.8um Mirco grain size solid carbide rod

    TIALN Coating (Black),TISIALN(Copper)

    Made by 5 AXIS CNC grinder

    Checked by Zoller Inspection Equipment

    Workpiece upto HRC50

    1 piece packing.

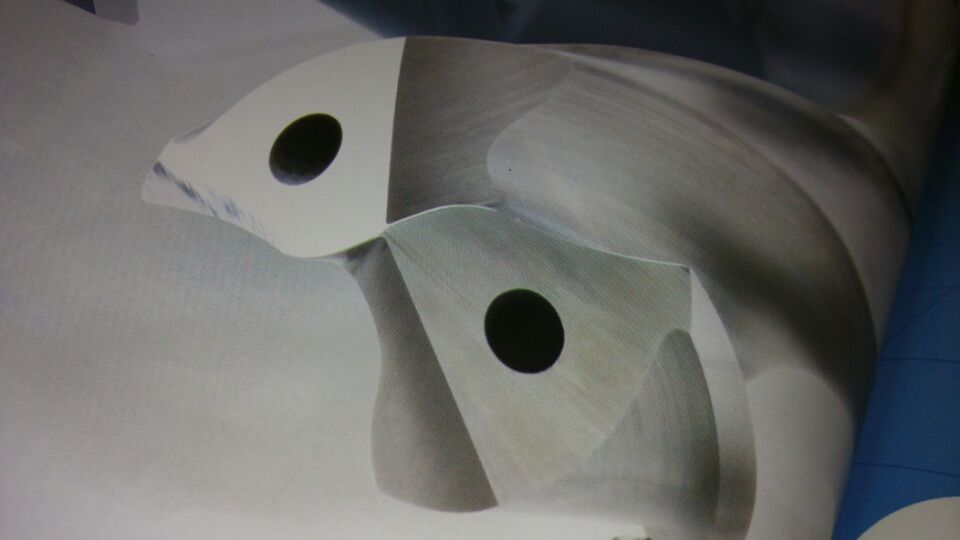

    Inner Cooling  Type

    Helix Angle:25°





    Description:



    Micro Grain Szie 0.6-0.8um, Wc carbide rod with high tenacity,with high quality TiAlN coating,getting long tool life,high Feed Drills,reduce time of changing cutters,improving efficency of machine,saving time of making products.Suggest to process iron and stainless steel upto HRC50,Middle-low speed.

    Carbide Rod:Wc:90%,Co:10%,TRS:3800N/mm2, Grain Size:0.6-0.8um





    Applications:



    Fit for Drilling quenching and tempered steel.stainless steel.nickel alloy and Titanium alloy,Cast iron,enhanced composited material





    Specifications:



    Cutting

    Flute Length

    Shank

    A.O.L

    Drilling Angle

    d

    l

    D

    L

    A

    3

    16

    6

    46

    135°-150°

    3.2

    18

    6

    49

    135°-150°

    3.5

    20

    6

    52

    135°-150°

    4

    22

    6

    55

    135°-150°

    4.2

    22

    6

    55

    135°-150°

    4.5

    24

    6

    58

    135°-150°

    5

    26

    6

    62

    135°-150°

    5.2

    26

    6

    62

    135°-150°

    5.5

    28

    6

    66

    135°-150°

    5.8

    28

    6

    66

    135°-150°

    6

    28

    6

    66

    135°-150°

    6.5

    31

    8

    70

    135°-150°

    6.8

    34

    8

    74

    135°-150°

    7

    34

    8

    74

    135°-150°

    7.5

    34

    8

    74

    135°-150°

    8

    37

    8

    79

    135°-150°

    8.5

    37

    10

    79

    135°-150°

    9

    40

    10

    84

    135°-150°

    9.5

    40

    10

    84

    135°-150°

    10

    43

    10

    89

    135°-150°

    10.2

    43

    12

    89

    135°-150°

    10.5

    43

    12

    89

    135°-150°

    11

    47

    12

    95

    135°-150°

    12

    51

    12

    102

    135°-150°

    12.5

    51

    14

    102

    135°-150°

    13

    51

    14

    102

    135°-150°

    13.5

    54

    14

    107

    135°-150°

    14

    54

    14

    107

    135°-150°

    14.5

    56

    16

    111

    135°-150°

    15

    56

    16

    111

    135°-150°

    15.5

    58

    16

    115

    135°-150°

    16

    58

    18

    115

    135°-150°

    17

    60

    18

    119

    135°-150°

    18

    62

    18

    123

    135°-150°

    19

    64

    20

    127

    135°-150°

    20

    66

    20

    131

    135°-150°





    Competitive Advantage:



    Good Quality,Competitive price.Help the agent to get the get more large market

    High Precision Solid Carbide Drills Inner Cooling Fixed Shank Drill Bit with Two Hole
