12KVA Gear Chamfering Machine With Siemens 802d 4 Axis CNC System, Carbide Alloy Cutters

12KVA Gear Chamfering Machine With Siemens 802d 4 Axis CNC System, Carbide Alloy Cutters

    • 12KVA Gear Chamfering Machine With Siemens 802d 4 Axis CNC System, Carbide Alloy Cutters
    • 12KVA Gear Chamfering Machine With Siemens 802d 4 Axis CNC System, Carbide Alloy Cutters
  • 12KVA Gear Chamfering Machine With Siemens 802d 4 Axis CNC System, Carbide Alloy Cutters

    Product Details:

    Place of Origin: CHINA
    Brand Name: JJR
    Certification: ISO9000
    Model Number: YKD9320E

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Packaging Details: in wooden cases
    Delivery Time: 1month
    Payment Terms: T-T , L/C
    Supply Ability: 50sets/month
    Contact Now
    Detailed Product Description
    Max. Diameter Of Work: φ200mm Max. Module Of Work: 5mm
    Hole Of Work Spindle: φ90H6 Hole Of Cutter Spindle: 7:24(Taper) ISO40
    Hole Of Cutter Spindle Adaptor: φ14H6 Chamfering Angle: Corners Faces: 80~130° 0 ~ 15°
    Adjusting Angle Of Cutter Spindle: Horizontal Vertical: 0~45° 15~45° Max. Traverse Of Cutter Spindle: 200mm

    12KVA Gear Chamfering Machine With Siemens 802d 4 Axis CNC System, Carbide Alloy Cutters

    Descriptions:

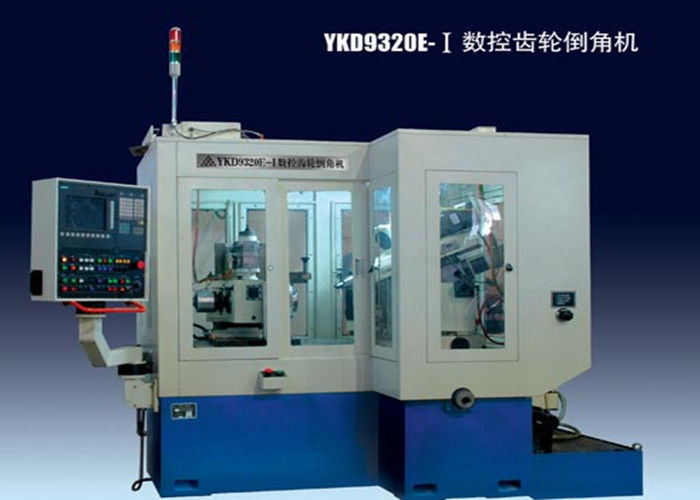

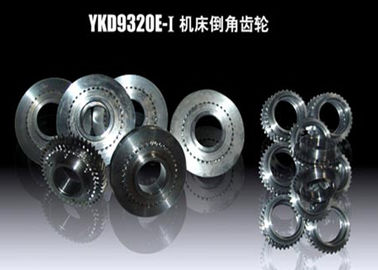

    This is a CNC machine designed primarily for chamfering the shift gears in the gear boxes used for automobiles. Disc-type gears and ring gears with sharp corners and round corners can be accommodated on this machine. Carbide alloy cutters are mechanically clamped on the machine. The machine is modular-designed and horizontally arranged, and equipped with a full-enclosure. The working principle of the machine is intermittent tooth to tooth chamfering. The machine equipped with a SIEMENS 802D 4-axis CNC system chamfers simultaneously the teeth on both sides symmetrical about the center of the gear being machined with two face milling cutters. The feed motion of the machine is performed by the cutters. After one tooth is finished, the cutter spindles relieve and the workpiece indexes for chamfering the next tooth. Characterized by high efficiency, optimized machining quality and easy operation, the machine can meet the needs for both small lot trial production of new products and mass production.


    Specifications:


    Max. diameter of work

    mm

    φ200

    Max. module of work

    mm

    5

    Hole of work spindle



    φ90H6

    Hole of cutter spindle



    7:24(Taper) ISO40

    Hole of cutter spindle adaptor



    φ14H6

    Chamfering angle: corners
    faces



    80~130°
    0 ~ 15°

    Adjusting angle of cutter spindle: horizontal
    vertical



    0~45°
    15~45°

    Max. traverse of cutter spindle

    mm

    200

    Vertical adjustment of workhead

    mm

    150

    Horizontal traverse of workhead

    mm

    200

    Speed of cutter spindle

    rpm

    Up to 5000

    Productivity

    teeth/m

    >60

    Total power of machine

    KVA

    12

    Overall dimensions (L×W×H)

    mm

    2100×1650×2140

    Net weight

    kg

    4500

    12KVA Gear Chamfering Machine With Siemens 802d 4 Axis CNC System, Carbide Alloy Cutters12KVA Gear Chamfering Machine With Siemens 802d 4 Axis CNC System, Carbide Alloy Cutters
