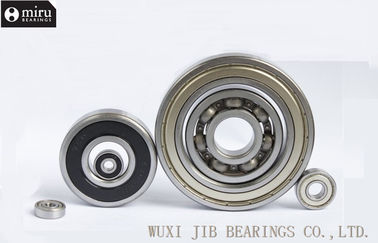

P5 Single Row Deep groove ball bearing 6017-2Z 6017-2RZ 6017-NR With Steel Cage For Pump

P5 Single Row Deep groove ball bearing 6017-2Z 6017-2RZ 6017-NR With Steel Cage For Pump

    • P5 Single Row Deep groove ball bearing 6017-2Z 6017-2RZ 6017-NR With Steel Cage For Pump
  • P5 Single Row Deep groove ball bearing 6017-2Z 6017-2RZ 6017-NR With Steel Cage For Pump

    Product Details:

    Place of Origin: CHINA
    Brand Name: miru
    Certification: ISO9001
    Model Number: 6017-2Z 6017-2RZ 6017-NR

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PCS
    Price: Negotiate
    Packaging Details: Industrial packaging / single box / according to your requirement
    Payment Terms: T/T
    Supply Ability: 5000 Piece/Pieces per Day
    Contact Now
    Detailed Product Description
    Structure: Deep Groove Type: Ball
    Brand: Miru, OEM And So On Seal Type: OPEN, ZZ, RS, 2RS, N,Z, ZN, ZNR,2ZNR
    Material: Chrome Steel(main) , Carbon Steel, Stainless Steel Clearance: CN, C2, C3
    Precision Rating: ABEC-1, ABEC-2 Number Row: Single Row
    High Light:

    double row deep groove ball bearing

    ,

    precision ball bearings

    Sealed P5  Deep groove ball bearing 6017-2Z 6017-2RZ 6017-NR With Steel Cage For Pump



    Product detail

    Versions

    With one or two side rubber seal RS, 2RS

    With one or two side metal shields Z and ZZ (2Z)

    With a snap ring groove in outer ring N

    With a snap ring groove in outer ring and external snap ring NR

    This types of bearings are the most representative and widely used bearing.It can accommodate axial loads in both directions, in addition to radial loads, even at high speeds.Theay are available for low noise and low vibration.Bearings with mental shields and rubber seals are pre-lubrecated by some grease.Bearing with snap ring and flange on the outer ring.Deep groove ball bearings with filling slots have the same dimensions with standard ones. Filling slot bearings have a higher radial load carrying capacity than bearings without filling slots.

    • Suitable for very high rotating speeds

    • Well suited for medium high radial and axial loads in one or both directions

    • Various seals and grease variants available for different operating conditions

    • Numerous clearance and tolerance classes available for different operating conditions

    • Series: 600, 6000, 6200, 6300, 6400, 1600; Thin-ring: 61800, 61900

    • Application examples: electrical motors, general machinery, industrial gearboxes, pumps, agricultural machinery, etc.





    Specification of high quality deep groove ball bearing 6017-2Z 6017-2RZ 6017-NR from china manufacturer

    Brand Name

    MIRU, according to your requirement

    Clearance

    C2 C0 C3 C4 C5

    Tolerance

    ABEC1(P0)  ABEC3(P6)  ABEC5(P5)  ABEC7(P4) ABEC9(P2)

    Vibration

    Z1V1    Z2V2    Z3V3   Z4V4

    Material

    carbon steel,chrome,stainless steel,plastic,ceramic

    Sample Date

    3-5 days

    Delivery Detail

     2-10 days after contract

    Shipping

    Express: DHL/EMS/By Sea/By Air

    Advantage

    1). Excellent and high quality control

    2). Prompt delivery

    3). Competitive price

    4). Small order accepted

    5). Customers' drawing or samples accepted

    6). OEM service

    Payment Term:

    A: 30% T/T In Advance, 70% T/T Against Copy Of B/L

    B: 100% L/C At Sight

    Packing:

    Industrial package or according to buyers requirement

    Main Market and Advantage Detection
    Market Revenue(Previous Year) Total Revenue (%)
    North America confidential 64.06
    Eastern Europe confidential 1.06
    Oceania confidential 1.07
    Eastern Asia confidential 24.3
    South Asia confidential 4.16
    Domestic Market confidential 5.36



    Machine Name Brand & Model No. Quantity Number of Year(s) Used Condition
    Digital control lathe BC2802-YB 40 4 Acceptable
    Digital control grinding machine X91150350 16 4 Acceptable
    Cleaning machine No information 2 1 Acceptable
    Drying oven BS400 4 1 Acceptable
    Oil coating machine TG2186 4 1 Acceptable
    Automatic bearing polyester covering line No information 4 1 Acceptable
    Automatic packing machine ATZ-202 4 1 Acceptable
    Bearing tester D824 15 1 Acceptable
    Ultrasonic tester VGT-1200 4 1 Acceptable
    Dial indicator 0-90mm 3 1 Acceptable
    Vernier caliper 0-150mm 15 1 Acceptable
    Micrometer 0-25mm 25 1 Acceptable



    16014
       N   Z   2Z   RS   2RS   d   D   B   Rsmin     KG
    6202 6202N   6202-Z   6202-2Z   6202-RS   6202-2RS 15 35 11 0.6 0.045
    6203 6203N   6203-Z   6203-2Z   6203-RS   6203-2RS 17 40 12 0.6 0.065
    6204  " 6204N   6204-Z   6204-2Z   6204-RS   6204-2RS   20 47 14 1 0.103
    6205 6205N   6205-Z   6205-2Z   6205-RS   6205-2RS   25 52 15 1 0.127
    6206 6206N   6206-Z   6206-2Z   6206-RS   6206-2RS   30 62 16 1 0.203
    6207 6207N   6207-Z   6207-2Z   6207-RS   6207-2RS   35 72 17 1.1 0.287
    6208 6208N   6208-Z   6208-2Z   6208-RS   6208-2RS   40 80 18 1.1 0.367
    6209 6209N   6209-Z   6209-2Z   6209-RS   6209-2RS   45 85 19 1.1 0.416
    6210 6210N   6210-Z   6210-2Z   6210-RS   6210-2RS   50 90 20 1.1 0.462
    6211 6211N   6211-Z   6211-2Z   6211-RS   6211-2RS   55 100 21 1.5 0.607
    6212 6212N   6212-Z   6212-2Z   6212-RS   6212-2RS   60 110 22 1.5 0.783
    6213 6213N   6213-Z   6213-2Z   6213-RS   6213-2RS   65 120 23 1.5 0.99
    6214 6214N   6214-Z   6214-2Z   6214-RS   6214-2RS   70 125 24 1.5 1.1
    6215 6215N   6215-Z   6215-2Z   6215-RS   6215-2RS   75 130 25 1.5 1.2
    6216 6216N   6216-Z   6216-2Z   6216-RS   6216-2RS   80 140 26 2 1.4
    6217 6217N   6217-Z   6217-2Z   6217-RS   6217-2RS   85 150 28 2 1.8
    6218 6218N   6218-Z   6218-2Z   6218-RS   6218-2RS   90 160 30 2 2.15
    6219 6219N   6219-Z   6219-2Z   6219-RS   6219-2RS   95 170 32 2 2.6
    6220 6220N   6220-Z   6220-2Z   6220-RS   6220-2RS   100 180 34 2.1 3.2
    6221 6221N   6221-Z   6221-2Z   6221-RS   6221-2RS   105 190 36 2.1 3.71
    6222 6222N   6222-Z   6222-2Z   6222-RS   6222-2RS   110 200 38 2.1 4.44
    6224 6224N   6224-Z   6224-2Z   6224-RS   6224-2RS   120 215 40 2.1 5.32
    6226 6226N   6226-Z   6226-2Z   6226-RS   6226-2RS   130 230 40 3 6.13
    6228 6228N   6228-Z   6228-2Z   6228-RS   6228-2RS   140 250 42 3 7.45
    6230 6230N   6230-Z   6230-2Z   6230-RS   6230-2RS   150 270 45 3 9.4




    Ball bearing  with deep groove(open-sided,N,ZZ,2RZ size)

    Inner Diameter :

    3-2390mm

    Outer Diameter :

    10-2690mm

    Balls:

    ZrO2, SisN4 and Sic

    Cage:

    Nylon ,steel ,brass

    Clearance:

    C0,C2,C3,C4,C5

    Precision Rating:

    P0, P6, P5

    Vabration:

    Z1, Z2, Z3

    Grease:

    Oil,grease,dry, per your request,

    Application:

    chemical, semi-conductor, valve & pump, food, electronic

    Package:

    single box or per your rquest

    Certification:

    ISO9001, ISO14001

    Delivery Date:

     7-15 days upon receipt of 30% deposit





    Basic Tests:

     1.Assembly
     2.Windage test
     3.Cleaning
     4.Rotary test
     5.Greasing and gland
     6.Noise inspection
     7.Appearance inspection
     8.Rust prevention
