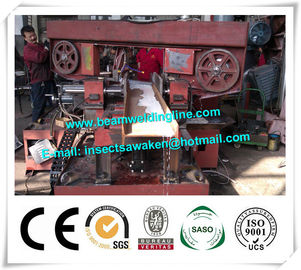

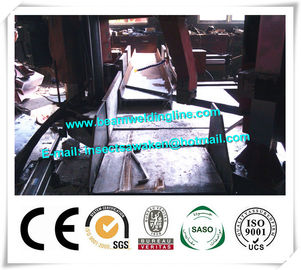

H Beam Angle Metal Band Saw Machine / Box Beam Production Line Automatic

H Beam Angle Metal Band Saw Machine / Box Beam Production Line Automatic

  • H Beam Angle Metal Band Saw Machine / Box Beam Production Line Automatic
  • H Beam Angle Metal Band Saw Machine / Box Beam Production Line Automatic
  • H Beam Angle Metal Band Saw Machine / Box Beam Production Line Automatic
  • H Beam Angle Metal Band Saw Machine / Box Beam Production Line Automatic
  • H Beam Angle Metal Band Saw Machine / Box Beam Production Line Automatic
H Beam Angle Metal Band Saw Machine / Box Beam Production Line Automatic
Product Details:
Place of Origin: China
Brand Name: Friendship Machinery
Certification: CE, ISO
Model Number: LF Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Standard package
Delivery Time: 30 working days after down payment
Contact Now
Detailed Product Description
High Light:

Metal Band Saw Machine

,

Welded H Beam Line



H Beam Angle Metal Band Saw Machine / Box Beam Production Line Automatic





1. Main Feature


a. Metal cutting including stainless steel, alloy, tube, square metals, H beam, Channel and others
b. Hydraulic control the vice clamp
c. PLC control the operation to be high precision
d. Passed CE, ISO9001, SGS
e. Can rotate 0-45 degree
f. Auto feeding and cutting, hold clamping device





2. Main specification


a. Max. cutting capacity
● 90°: 500*700 mm
● 45°: 500*500mm
● 30°: 500*550mm


b. Saw blade
● Speed: 18-80 frequency converter step less speed
●Size: 1.3*41*5750mm
● Tension: hydraulic
●Cleaning: wire brush and flood coolant


c. Motor output
● Saw blade: 4Kw
● Hydraulic: 1.5Kw
● Coolant


d. Feeding
● Length: 400
● Mode: manual


e. Machine weight: 3500kg


f. Vice control: hydraulic


g. Machine size: 3160*1750*2180


f. Machine accessories
● Machine tool box
● Feeder table
● Wire brush
● Operation instruction
● One piece of saw blade



H Beam Angle Metal Band Saw Machine / Box Beam Production Line Automatic 0
