Place of Origin: | China |
Brand Name: | GHKAIL |
Model Number: | Akyd-CCB |
Blade Material: | Diamond |
---|---|
Finishing: | Other |
Size: | 180mm ~900mm |
Color & Pattern: | Customization available |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | Negotiable |
Delivery Time: | 5-15 days |
Payment Terms: | L/C,T/T,Paypal |
Supply Ability: | 100pcs |
High Light: | pearl diamond blades,diamond cutting blades |
---|
Manufacturing:
Segments are using our patented AkyD technology: Diamond Ordinal Array Method, better quality than Arix product, but cheaper!
Features:
1. More safety during operation: The solidity of Diamond saw blades could be engaged in high temperature during operation
2. More Sharpness: diamond saw blades could survive from any destructive testing, the linear cutting speed reachs 7+ meter/min easily.
3. Constancy: Diamond saw blades could provide very good performance and remain its stability.
4. Long Life-Span: Diamond saw blades have 30%+ longer life-span than common saw blades

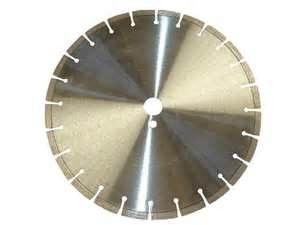

Application: Granite, Asphalt Marble, Reinforced Concrete, Concrete, Brick, Block, Stone and other Abrasive Materials.
Blade Diameter and slots | Segment Height | Application |
concrete Saw blade |
Hand-held saw | Dry |
180mm(7") With 14 slots | 12mm | Dry Cut |
230mm (9") With 16 slots | 12mm | Dry Cut |
300mm (12") With 21 slots | 12mm | Dry Cut |
350mm(14") With 24 slots | 12mm | Dry Cut |
400mm(16") With 28 slots | 12mm | Dry Cut |
concrete Saw blade |
Road saw | Wet |
300mm (12") With 21 slots | 12mm | Wet Cut |
350mm(14") With 24 slots | 12mm | Wet Cut |
400mm(16") With 28 slots | 12mm | Wet Cut |
450mm(18") With 32 slots | 12mm | Wet Cut |
500mm(20") With 36 slots | 12mm | Wet Cut |
550mm(22") With 40 slots | 12mm | Wet Cut |
600mm(24") with 42 slots | 12mm | Wet Cut |
650mm(26") with 46 slots | 12mm | Wet Cut |
700mm(28") with 50 slots | 12mm | Wet Cut |
750mm(30") with 54 slots | 12mm | Wet Cut |
800mm(32") With 57 slots | 12mm | Wet Cut |
850mm(34") with 58 slots | 12mm | Wet Cut |
900mm(36") with 64 slots | 12mm | Wet Cut |
