Custom 2.2KW AC 380V PCB Depaneling Router with Wind Cooling Protect

Custom 2.2KW AC 380V PCB Depaneling Router with Wind Cooling Protect

    • Custom 2.2KW AC 380V PCB Depaneling Router with Wind Cooling Protect
    • Custom 2.2KW AC 380V PCB Depaneling Router with Wind Cooling Protect
    • Custom 2.2KW AC 380V PCB Depaneling Router with Wind Cooling Protect
    • Custom 2.2KW AC 380V PCB Depaneling Router with Wind Cooling Protect
  • Custom 2.2KW AC 380V PCB Depaneling Router with Wind Cooling Protect

    Product Details:

    Place of Origin: JiangSu
    Brand Name: YuSH
    Certification: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
    Model Number: YS-F01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: 1000
    Packaging Details: Plywooden case
    Delivery Time: 3 days
    Payment Terms: T/T ,Paypal ,West Union ,L/C ,D/P .
    Supply Ability: 300 sets/ month
    Contact Now
    Detailed Product Description

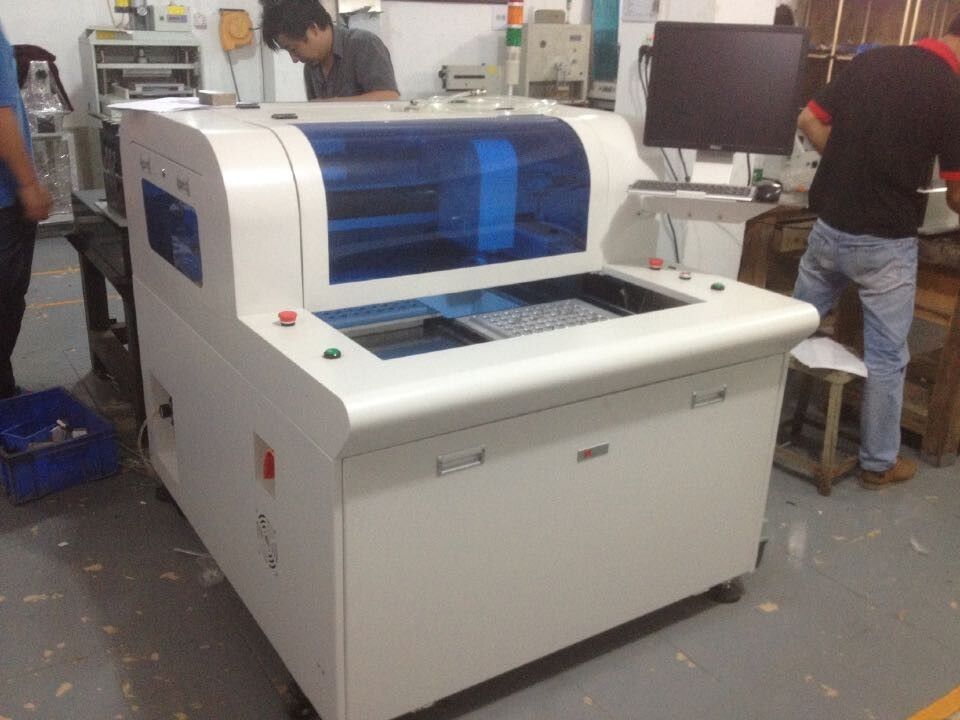

    Custom 2.2KW AC 380V PCB Depaneling Router with Wind Cooling Protect

    Machine Parts List

    I. Hardware
    SPINDLE Morning Star spindle and inverter
    CCD Sony 520 line industrial cameras
    LENS Computar EX2C
    Screw TBI Precision ground ball screw imports
    Guide HIWIN widening Imported linear guide rail
    MOTOR JiaBao LCF Series
    I/O CONTRONL CARD HFC PCI-9074
    DRIVER CONTRONL CARD HFC PCI-9074
    I/O CARD PCI-9074-64pcs/-38pcs
    Static cleanup STATIC-ST401A Series
    Computer (RMC-8401/6113LP4/300ATX/8651VNA/P4 2.8G 2CPU(S)/1G DDR/80G)
    Machine interface AOC LCD17",Logitech mouse
    2. software
    Control system Windows XP Professional (Service3,v.3244)
    Operation GUI Chinese Windows XP
    Program edit Inline
    Vision system CCD AOTU offset
    Control system F 1.0.2 version


    2. MLF-F01 Performance Parameters

    Overall
    Dimensions(W*D*H) 1220mm*1450mm*1420mm
    Weight 550KG
    Height offset 60~110mm
    Manipulator
    Motor type JiaBao series
    Positioning repeatability 0.001mm
    Axis working area(max) 680mm*360mm*50mm
    Work station
    PCB fixation standard,specialization
    PCB loading/unloading manual
    PCB size (max) 322mm*322mm
    PCB thick (max) 5mm
    Fixturing
    Rigidity fixturing standard
    Fixturing fixation machinery
    Spindle Motor
    Power 400W
    Spindle 50000rpm/min
    Protect self/wind cooling
    Change cutter Specialization
    Routing capability
    Cutting speed(max.) 100mm/s
    Driving speed(max.) 3000mm/s
    Precision of cutting 0.01mm
    Vacuum System
    Vacuum power 2.2KW AC 380V
    Vacuum plumb
    Utilities
    Power 2.2KW AC380V
    Air supply 2~5KG/cm2
    Programming
    Program edit Inline
    Function edit Line,arc,circula,U-curve
    Program storage HDD
    Vision system SONE colour CCD
    milling cutter offset AUTO
    Vacuum setup AUTO
    Operation Monitors
    Iindicator Iindicator Machine state
    tool check Automatic detection tool life, the use of time testing
    Motor protect Have overheating, overload, low voltage protection function
    motor over loading check Have Overload, the line is normal, low voltage protection function
    Tool usable time Automatic detection tool life,
    Data statistic Separate board model, separating count, diverse counting methods
    Error record Software automatically records all alarms memory of machines
    III. Accuracy
    Axis precision 0.001mm
    Cutting precision 0.1mm
    IV. Safety
    Working area protect With four sealed protection
    Door sensor Front and rear safety door micro-switch sensor (optional)
    Exigency stop button



    3. Function Description



    1. X10 zoom-in image makes programming easier&increase the accuracy of point setting.
    2. Two sliding table provides simultaneously in-and-out movement to reduce the tack time for better productivity.
    3. AUTO MARK offset system.CCD image could check&simulate the path or routing to reduce unnecessary mistake before cutting.
    4. routng bit automatically lift and shift to next programmed point then cutting to extend the life time of routing bit.
    5. safety door industry design.
    6. CCD image could check&simulate the path or routing to reduce unnecessary mistake before cutting.
