Standard Solid Robust Frame Cnc Pcb Router With Automatic Dust Collector

Standard Solid Robust Frame Cnc Pcb Router With Automatic Dust Collector

    • Standard Solid Robust Frame Cnc Pcb Router With Automatic Dust Collector
    • Standard Solid Robust Frame Cnc Pcb Router With Automatic Dust Collector
    • Standard Solid Robust Frame Cnc Pcb Router With Automatic Dust Collector
    • Standard Solid Robust Frame Cnc Pcb Router With Automatic Dust Collector
  • Standard Solid Robust Frame Cnc Pcb Router With Automatic Dust Collector

    Product Details:

    Place of Origin: Dongguagn china
    Brand Name: Chuangwei
    Certification: CE ISO9001
    Model Number: CW-F01-A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: each set be packed in plywood case
    Delivery Time: 1-3 days after deposit confirm
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 300 sets per month
    Contact Now
    Detailed Product Description
    Spindle Motor Speed: 50000r/M Load And Unload Way: Manual
    Resolution: ±0.01mm Warranty: 1 Year
    Working Area: 680mm*360mm*50mm Dimension(L*W*H): 1220mm*1450mm*1420mm

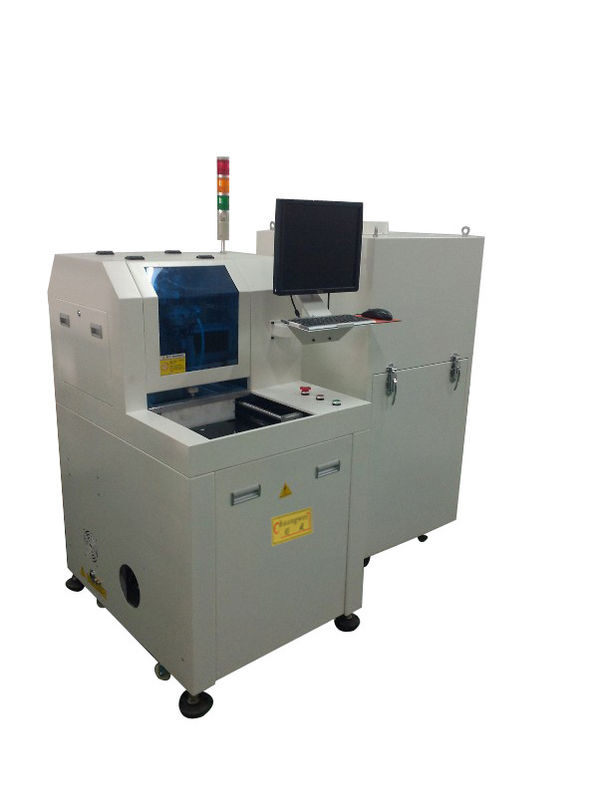

    Standard Solid Robust Frame Cnc Pcb Router With Automatic Dust Collector CW-F01-A







    CW-F01 is a machine cutting multi-panel PCB according to the pre-edited path by use of high-speed motion of milling cutter. Getting rid of the cutting flaws of manual cutting, C-CUT or Push cut, it improves product quality and reduces scrap rates.



    The machine adopts human-machine interface vie Windows XP, which is simple and convenient, able to achieve automatic cutting path correction, edit and modification of high-pixel CCD program, block program and single-step program.



    The PCB with two interactive plates loading and unloading materials will effectively reduce machine idle time, thus achieve an ideal productivity. With a high-pixel CCD amplification lens, auxiliary demonstration program and editing function, the machine can work more accurately and get sharper graphics. Equipped with automatical mark positioning correction system, the motion path is displayed in real time and traced in an analog way; all in all realize a clear vision.



    Due to the automatic position correction function, PCB can cut more accurately. Within the maximum 3mm, the machine can correct the deviated position automatically, therefore lowers the standard for operators to place the plate, in this way to improve work efficiency immensely.



    The copy function of the two plates, the block, arrays, multi-angle plate, the single tracing modification function and block editing function indeed simplify the process of programming and increase efficiency.



    Vacuum cleaner made of imported high-power fan and the 10V high voltage static eliminator makes less noise and can vacuum better. The monitor for tooling will extend the life span of the milling cutter, as the blade will rise and fall to the uncut position upon finished the previous cut and the risingand falling distance and times can be set based on the length of the blade.



    Features and functions



    1.  Smooth cutting finish only by router cutting .

    2.  There is little distortion on PCB during cutting because using high-frequency spindle motor . It is 1 / 10 of pressing , 1 / 100 of breaking by hand .

    3. One-touch program changeover .

    4.  Able to cut liner and arc with router machine , diminish the restriction on PCB design .

    5.  Read QR code or JIG BIT auto select cutting program , or check accordance between cutting program and JIG .

    6 , Powerful Dust Collection minimized dust adhesion on PCB .
    7 , Developed high performance router bit that expanded bit life and relief littering .

    8 , Cut down PCB cost because need not making V-groove on PCB

    9 , Cut down running cost because without mold



    Standard Solid Robust Frame Cnc Pcb Router With Automatic Dust Collector





    Technical parameters & Specification:



    Hardware:



    SPINDLE Morning Star spindle and inverter



    CCD

    Sony 520 line industrial cameras

    LENS

    Computar  EX2C

    Screw

    TBI Precision ground ball screw imports

    Guide

    HIWIN widening Imported linear guide rail

    MOTOR

    JiaBao LCF Series

    I/O CONTRONL CARD

    HFC  PCI-9074

    DRIVER CONTRONL CARD

    HFC  PCI-9074

    I/O CARD

    PCI-9074-64pcs/-38pcs

    Static cleanup

    STATIC-ST401A Series

    Computer

    RMC-8401/6113LP4/300ATX/8651VNA/P4 2.8G 2CPU(S)/1G DDR/80G

    Machine interface

    AOC LCD17",Logitech mouse



    Software:



    Control system

    Windows XP Professional  (Service3,v.3244)

    Operation GUI

    Chinese Windows XP

    Program edit

    Inline

    Vision system

    CCD AOTU offset

    Control system

    F 1.0.2 version



    Performance Parameters:







    Overall

    Dimensions(W*D*H)

    1220mm*1450mm*1420mm

    Weight

    550KG

    Height offset

    60~110mm



    Manipulator

    Motor type

     JiaBao series

    Positioning repeatability

    0.001mm

    Axis working area(max)

     680mm*360mm*50mm



    Work station

    Work station

     standard,specialization

    PCB loading/unloading

    manual

    PCB size (max)

    322mm*322mm

    PCB thick (max)

     5mm



    Fixturing

    Rigidity fixturing

    standard

    Fixturing fixation

    machinery



    Spindle Motor

    Power

     400W

    Spindle

    50000rpm/min

    Protect

    self/wind cooling

    Change cutter

     Specialization



    Routing capability

    Cutting speed(max.)

     100mm/s

    Driving speed(max.)

    3000mm/s

    Precision of cutting

    0.01mm



    Vacuum System

    Vacuum power

    2.2KW AC 380V



    Vacuum plumb



    Utilities

    Power

    2.2KW AC380V

    Air supply

    2~5KG/cm2





    Always best service for you:



    1.Engineers available to service machinery oversea.

    Engineers are available to be sent to freign countries to do machinery training and offer technical support.


    2.Mature technique & forerunner to process makes high quality machinery.


    As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine


    Our R&D team continuously upgrade the existing machines to meet the market development trend.


    3.Effective customer service. pcb router machine


    All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers.


    4.One year warranty for the machines except accessories. b router machine


    Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.


    Our mission:


    Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success


    Our Vision:


    PCB industry to become the world's leading solution providers PCB separator. pcb router machine






    Our sales network:



    Standard Solid Robust Frame Cnc Pcb Router With Automatic Dust Collector
