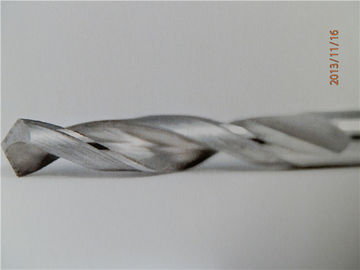

Roughing Solid Carbide Drills Bits

Roughing Solid Carbide Drills Bits

Roughing Solid Carbide Drills Bits

Product Details:

Place of Origin: China
Brand Name: INMIND
Certification: SGS Factory Certificater
Model Number: Inner Cooling type 3mm to 20mm

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs per specification wthin 12mm
Price: Negotiable
Packaging Details: 1 piece packing
Delivery Time: For Samples: 3-5 days For Batch:10 to 15 days.
Payment Terms: T/T 100% Advinced,Paypal,Western Union
Supply Ability: 50000pcs/month
Contact Now
Detailed Product Description
Features: High Precision Application: Roughing, Stainless Steel
Coating: Tialn Coated Helix Angle: 35
HRC: HRC50 Material: Solid Carbide, Carbide
Processing Mode: CNC Product Name: Solid Carbide Drills
Type: Standard



Roughing Tialn coated Solid Carbide Drills Bits for Hardened Steel





Quick Detail:



0.6-0.8um Mirco grain size solid carbide rod

TIALN Coating (Black),TISIALN(Copper)

Made by 5 AXIS CNC grinder

Checked by Zoller Inspection Equipment

Workpiece upto HRC50

1 piece packing.

DIN1897 Type





Description:

Micro Grain Szie 0.6-0.8um, Wc carbide rod with high tenacity,with high quality TiAlN coating,getting long tool life,high Feed Drills,reduce time of changing cutters,improving efficency of machine,saving time of making products.Suggest to process iron and steel upto HRC50,Middle-low speed.

Carbide Rod:Wc:90%,Co:10%,TRS:3800N/mm2, Grain Size:0.6-0.8um





Applications:



Fit for Drilling quenching and tempered steel.stainless steel.nickel alloy and Titanium alloy,Cast iron,enhanced composited material





Specifications:



D

Flute Length

A.O.L

Drilling Angle

Drilling Angle

3

16

46

120°

135°

3.2

18

49

120°

135°

3.5

20

52

120°

135°

4

22

55

120°

135°

4.2

22

55

120°

135°

4.5

24

58

120°

135°

5

26

62

120°

135°

5.2

26

62

120°

135°

5.5

28

66

120°

135°

5.8

28

66

120°

135°

6

28

66

120°

135°

6.5

31

70

120°

135°

6.8

34

74

120°

135°

7

34

74

120°

135°

7.5

34

74

120°

135°

8

37

79

120°

135°

8.5

37

79

120°

135°

9

40

84

120°

135°

9.5

40

84

120°

135°

10

43

89

120°

135°

10.2

43

89

120°

135°

10.5

43

89

120°

135°

11

47

95

120°

135°

12

51

102

120°

135°

12.5

51

102

120°

135°

13

51

102

120°

135°

13.5

54

107

120°

135°

14

54

107

120°

135°

14.5

56

111

120°

135°

15

56

111

120°

135°

15.5

58

115

120°

135°

16

58

115

120°

135°

17

60

119

120°

135°

18

62

123

120°

135°

19

64

127

120°

135°

20

66

131

120°

135°





Competitive Advantage:



Good Quality,Competitive price.Help the agent to get the get more large market
