Saw Blade Sharpening Machine for Metal Sawing Balde Sharpening

Saw Blade Sharpening Machine for Metal Sawing Balde Sharpening

  • Saw Blade Sharpening Machine for Metal Sawing Balde Sharpening
  • Saw Blade Sharpening Machine for Metal Sawing Balde Sharpening
  • Saw Blade Sharpening Machine for Metal Sawing Balde Sharpening
  • Saw Blade Sharpening Machine for Metal Sawing Balde Sharpening
Saw Blade Sharpening Machine for Metal Sawing Balde Sharpening
Product Details:
Place of Origin: Jiangsu,China
Brand Name: FANRS MACHINERY
Certification: CE ISO SGS
Model Number: GS450
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wooden Case
Contact Now
Detailed Product Description

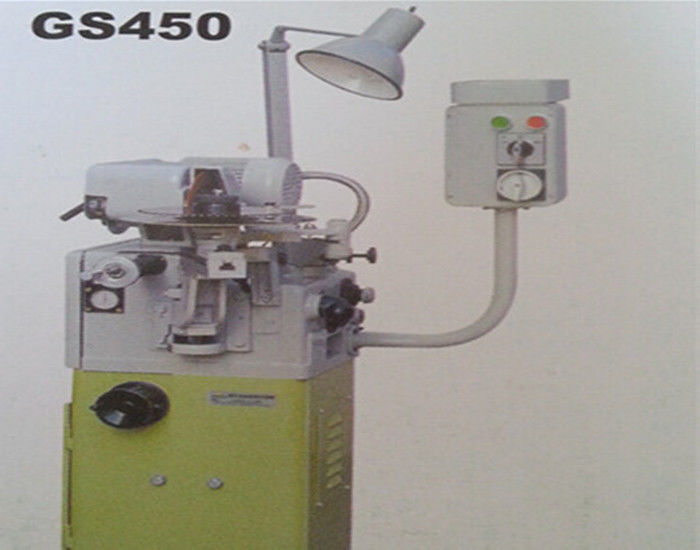

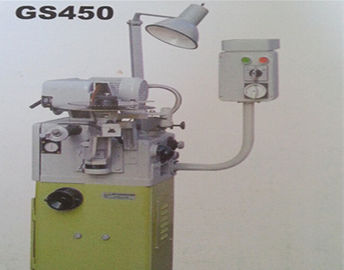

Model: GS 450 Circle Saw Blade Outer Diameter: 50-450mm
Tooth Pitch: 25mm(Max.) Toot Depth: 8mm(Max.)
Machine Dimension(LxWxH): 800*1410*800mm Machine Weight: 180kg
High Light:

hydraulic pipe bending machine

,

stainless steel pipe bender machine



Saw Blade Sharpening Machine for Metal Sawing Balde Sharpening







Features:



① This machine operates easily and can be adjusted easily about the toothed

cutting  angle,the tooth,the tooth depth with high precision and sharpen durable;

② Based on sharpening saw blade different angle,can be quickly-adjusted;

③ The nose can be adjusted up and down randomly,no need to change grinding wheel

and chamfer quickly;





Main Technical Data:



Model

GS 450

Circle Saw Blade Outer Diameter

50-450mm

Tooth Pitch

25mm(Max.)

Toot Depth

8mm(Max.)

Angle of Cutting

-5-30

Feeding Speed

45-180Tooth/min

Saw Blade Thickness

8mm(Max.)

Grinding Wheel Outer Diameter

75-150mm

Grinding Wheel Aperture

25mm

Grinding Wheel Rotational Speed

4200rpm

Grinding Wheel Motor

0.55KW   2P

Transmission Motor

0.37KW   2P/4P

Vacuum Cleaner Motor

0.37KW   2P(For Choice)

Machine Dimension(LxWxH)

800*1410*800mm

Machine Weight

180kg



Saw Blade Sharpening Machine for Metal Sawing Balde Sharpening 0





Saw Blade Sharpening Machine for Metal Sawing Balde Sharpening 1



FAQ:

1.  Q: Are you a manufacturer or trading company?

    A:  Yes, we are a manufacturer.



2.  Q: What certificate do you have?

    A:  We have ISO ,SGS and CE certificate.



3.  Q: How does your factory do regarding quality control?

    A:  We have a special QC department in charge of products’ quality.



4.  Q: How long is the warranty period?

    A:  All of our products have one year warranty.



5.  Q: How much production capacity of your company one year?

    A:  This depends on your needs.



6.  Q: What’s the main market of your company?

    A:  We have customers all over the world.



7.  Q: Where is your factory located?

    A:Our factory is located in Zhangjiagang City, Jiangsu Province, China, about

2 hours to Shanghai by car.



8.  Q: Can we visit your machine operating in your factory?

    A:We have own workshop, and we are enthusiastically looking forward to your visit

guidance and business negotiations!



9.  Q: How can we visit there?

    A:We offer transportation service when you arrive in Shanghai or Jiangsu Province,

China.
