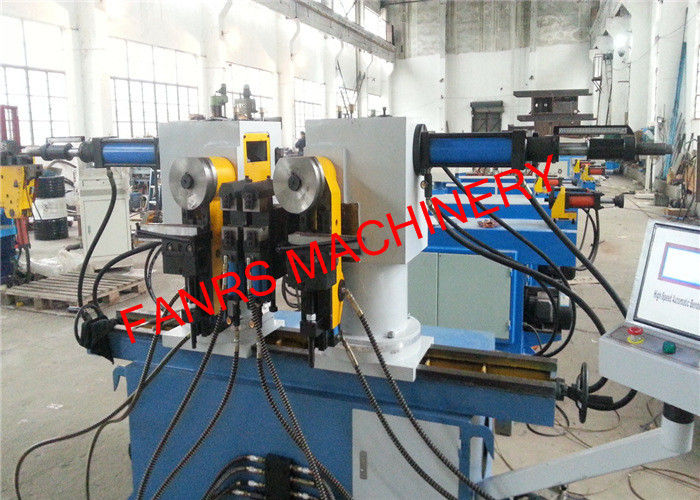

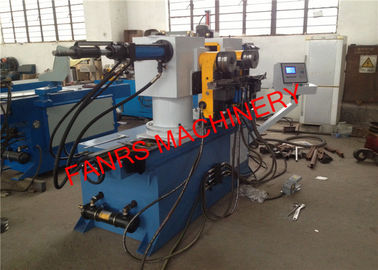

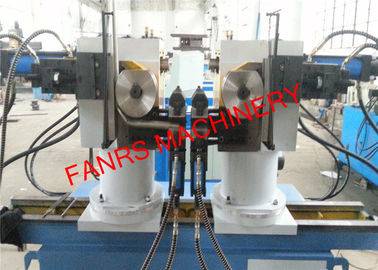

Two Heads CNC Pipe Bending Machine With Computer Control System
Technical Data:
|
MODEL |
FS 38 |
|
|
Max.Bending Dia×Thickness(mm) |
φ38×3 |
|
|
Max.Bending Radius(mm) |
50-260 |
|
|
Bending Angle |
0-190 |
|
|
Max. Feeding Length(mm) |
2500 |
|
|
Feeding Axis |
Speed (mm/sec) |
0--1000 |
|
Accuracy(mm) |
±0.1 |
|
|
Rotate Axis |
Speed(°/s) |
0--150 |
|
Accuracy(°) |
±0.1 |
|
|
Bending Axis |
Speed(°/s) |
0--60 |
|
Accuracy(°) |
±0.1 |
|
|
Voltage |
380V/50Hz |
|
|
Power |
4Kw |
|
|
Machine Size(L*W*H) (mm) |
4250*1200*1350 |
|
|
Weight(kg) |
2000 |
|
|
Air Pressure |
0.5--0.7MPa |
|
Introduction:
Our FS38 Two heads pipe bending machine is used to produce a series of bending tube, furniture tube, sports equipments tube, air material tube, automobile tube and all other bending tube etc.

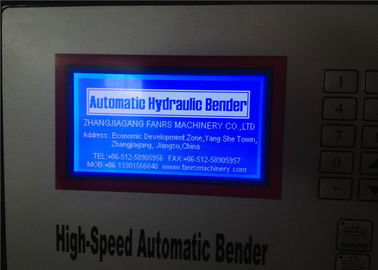

A. With imported PLC logic control system and three-phase electricity control box, the speed of mainframe is adjusted by transducer.
B. Perfect material surface treatment, electroplate, black coating, quenching, carburize electrostatic spraying to meeting respective usage and function.
C. Machine frame body adopts tower structure, welded by square steel pipe and steel plate, high strength and steady.
D. Our bending molds material is high quality steel, hardness high and long life use, the hardness not below HRC50;mould include bending mould, clamp mould ,guided mould etc.
Clamp die designed with parallelogram, diagonal clamping, fix tight; guided die adopt three (four) disc type chuck structure, clamp high.
E. Our FS38 is with automatic alarm system and automatic counting system.
