HD 8 Channel NVR System WIFI Router With Plug and Connect Automatically

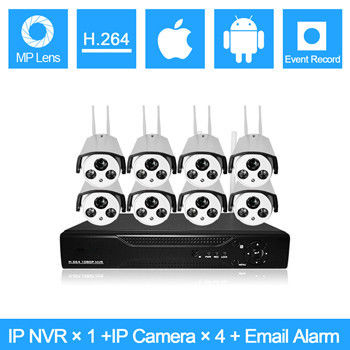

HD 8 Channel NVR System WIFI Router With Plug and Connect Automatically

    • HD 8 Channel NVR System WIFI  Router With Plug and Connect Automatically
    • HD 8 Channel NVR System WIFI  Router With Plug and Connect Automatically
  • HD 8 Channel NVR System WIFI  Router With Plug and Connect Automatically

    Product Details:

    Place of Origin: Made in China
    Brand Name: SINOCAM
    Certification: CE,FCC,RHOS
    Model Number: SN-NVK-8004W10

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: negotiable
    Packaging Details: carton
    Delivery Time: 3-5 working days
    Payment Terms: Paypal,Western union, TT
    Supply Ability: 10,0000/per month
    Contact Now
    Detailed Product Description
    Video Resolution: 1280*720 Resolution: 1.0MP/1.3MP
    Video Bit Rate: 0.1M-6Mbps, Customized Electronic Shutter: 1/25s-1/30,000s
    System: Win 7,8 ,XP Model: SN-IPC-8002BW

    HD 8 Channel NVR System WIFI  Router With Plug and Connect Automatically







    Key Features:



    •Support megapixel HD network video preview, storage and playback;

    • Click any area and zoom in or zoom out on the image by mouse;

    • Support digital zooming under preview and playback modes;

    • Support search, playback and backup by event;

    • Support 4ch playback simultaneously







    1. Preview channel can be switched to other channel randomly without changing

        the MAC which is convenient for the project construction;

    2. The dendritic menu can be moved. Man-machine communication is more direct

        and the settings of parameters are more easy and convenient;

    3. The mouse roller can realize 15X digital zooming which the enlarged image can

        be dragged and moved randomly under preview and playback modes;

    4. Immediate snapshot and immediate view; the picture will be stored in an

        independent area in the HDD;

    5. The recording playback is shown by time bar and different color represents

         different recording type. It is very fast and easy to find check the recording;

    6. Recording backup can be accurate to second. Any time period of backup is

        available;

    7. The recording files in the USB disk can play directly in the playback interface

         while the snapshot pictures can be viewed directly;

    8. With WIFI wireless connection functions;

    9. Standard resolution which can be adjusted according to the display device in

        order to get the best image quality;

    10. Adopt HDD sequence writing method and the data is written from 0 track which

        increase 2.5X lifetime of the HDD.









    Parameters







     Model Number

     SN-NVR-8007

     Operating System

     Embedded LINUX operating system

     Image Code Control

     Image code quality adjustable, variable bitstream and

     constant bitstream optional

     Dual Stream

     Each channel can set main stream and sub stream

     Video Standard

     1080P(1920×1080)30fps/960P/(1280×960)/720P(1280×720)30fps

     Monitoring Image Quality

     1080P(1920×1080) / 960P/(1280×960)/720P(1280×720)

     Image Motion Detection

     Each screen can set mutiple detection areas and set 6-level sensitivity

     (IPC Support)

    Recording Playback Quality

     4ch 720P playback

     Region Cover

     Every channel can set 4 cover regions(IPC Support)

     Recording Mode

     Support manual , auto, dynamic detection, alarm trigger record mode

     (Partly needs IPC Support)

     Backup Way

     Support U disk, USB mobile HDD. network storage and  backup

     Operation Way

     Mouse

     Local Login

     User name and password

     Recording Storage

     Local HDD, network

    External

     Ports

    Video Input

     ①4×(1280*960)

     ②4×(1280*720) IP camera

    Video Output

     1ch VGA+1ch HDMI

    Network Port

     1PCS RJ45,10M/100M

    USB Port

     2USB 2.0 ports

    Wireless Port

     With two wireless antennas(2pcs wifi)

     HDD

    HDD Port

     1 SATA HDD Port

    MAX Capacity

     Each port supports MAX 4TB HDD

    Mobile Surveillance

     Support( iPhone,  Android)

    Power Supply

     12V2.5A

     Power Consumption

     ≤25W(without HDD)

     Working Temperature

     -10℃~+55℃

     Working Humidity

     10%-90%

     Dimension

     Equipment:257mm×250mm×42mm

     Weight(without HDD)

     N.W.:1.5Kg;





    IP CAMERA:



    1,Product description



    Using the latest development of 1/3inch mega pixel progressive scan CMOS, with enhanced color

    filters and unique concentrator technology, under a variety of conditions even light environment,

    can also provide surprising megapixels high-definition, bright image. Applicable to the financial,

    telecommunications,government, schools, airports, factories, hotels, museums, traffic monitoring,

    real-time requirements Ultra HD quality places.



    2,Product features

    • 1/3” line scanning digital and advanced DSP technology
    • Picture Resolution960P color CMOS , 1.3 Mega Pixel, 1280X960
    • Optimized H.264 Main Profile compression algorithm, high compression ratio and high quality image;
    •  convenient to realize a transmission of HD images on a narrow band, thus it can save the storage
    • space; support triple bit streams
    • The most advanced network delivery server technology ,Easily achieve more user access ,
    • Multi-stage user password rights management
    • Built in Web Server, through the IE browser easy to realize the remote control Settings prison see
    • operation
    • Support facilities remote security upgrade function
    • Technology of self adaptability to network that it may adjust its video flame rate automatically
    •  according to the bandwidth of network
    • Functions of alarm in video missing, mobile detection or probe, etc. (available to set the regions
    • and sensitivity)
    • Support mobile detection / image shielding / image snapshot
    • Functions of auto recovery in abnormality and auto reconnection in network breakdown



    Model

    SN-IPC-8002BW

    Camera

    Pixel

    1.3 Mega Pixel, 1280*960

    Lens

     2MP 4mm lens or 3MP 3.6MM LENS,2PCS Gen III IR Array,

    30 meters IR distance

    Electronic shutter

    1/25s-1/30,000s

    Low Lux

    Color:0.1Lux@F1.6  B/W:0.08Lux@F1.2

    Video parameter

    Saturation, brightness, contrast ratio and color tone

     can be adjusted by customer end or IE explorer

    Audio-video

    coding parameters

    Compression

    H.264 Main Profile@Level 3.0 / MJPEG optional

    Video bit rate

    0.1M-6Mbps, customized

    Bit stream type

    video stream

    Audio compress

    N/A

    Audio bit rate

    N/A

    Triple bit streams

    Support


    Video resolution

    1280*720

    Video flame rate

    PAL: 1-25 frames/second, NTSC: 1-30 frames/second

    Function

    PTZ

    N/A

    Heartbeat mechanism

    Support

    IP auto pop-out

    IP auto pop-out at customer end

    Password protection

    Multi-level protection on password

    Intellectual alarm

    Mobile detection, video shielding, video loss,

    network breakdown, abnormality in storage

    Basic functions

    One-key reset, password protection, watermark technology

    Interface

    Audio input

    N/A

    Video output

    N/A

    Network port

    1 pcs, RJ45 10M/100Mbps self-adaptable Ethernet port

    Serial port

    N/A

    Wireless network

    WIFI

    Support WIFI With 2pcs Mast  ,Distance 100M (5.8G)

    Wireless encryption
    protocol

    Support

    Cell phone monitor

    N/A

    3G network

    N/A

    others

    POE

    N/A

    Power supply

    DC12V/1.0A

    Power consumption

    <6W

    Working temp

    -10℃ ~ +55 ℃

    Working humidity

    10 ~ 85%

    Dimension

    19.5*10*10.7

    Weight

    0.4Kg





    NVR CMS :



    HD 8 Channel NVR System WIFI  Router With Plug and Connect Automatically







    NVR P2P:



    HD 8 Channel NVR System WIFI  Router With Plug and Connect Automatically







    NVR Mobile phone APP:



    HD 8 Channel NVR System WIFI  Router With Plug and Connect Automatically
