| Place of Origin: | China |
| Brand Name: | E-Lins |
| Certification: | CE/ROHS/FCC/SGS |
| Model Number: | H685w-8 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton firstly, and then reinforced with boxes |
| Delivery Time: | Sample in 3 days (for usual version), Bulk order in 2-30 working days depends on material stock |
| Payment Terms: | T/T or western Union |
| Supply Ability: | 20,000pcs per month |
| Wireless Type: | Unlock UMTS Router | Supported Networks: | HSPA+,HSDPA, HSUPA, EDGE, GPRS, GSM |
|---|---|---|---|
| LAN/WAN RJ45: | 1 LAN RJ45, 1 WAN RJ45 | Port: | RJ45, Serial RS232 RS485 |
| Antenna: | External Replaceable | SIM Card Slot: | Yes |
| WLAN: | WiFi 802.11b/g/n | Type: | Industrial Class |
| Application: | Wireless M2M | Case Material: | Metal |
| High Light: | Industrial Wifi Router,mobile cellular router |
||
Serial RS232 RS485 Unlock UMTS Router , Ethernet to UMTS 3G Router

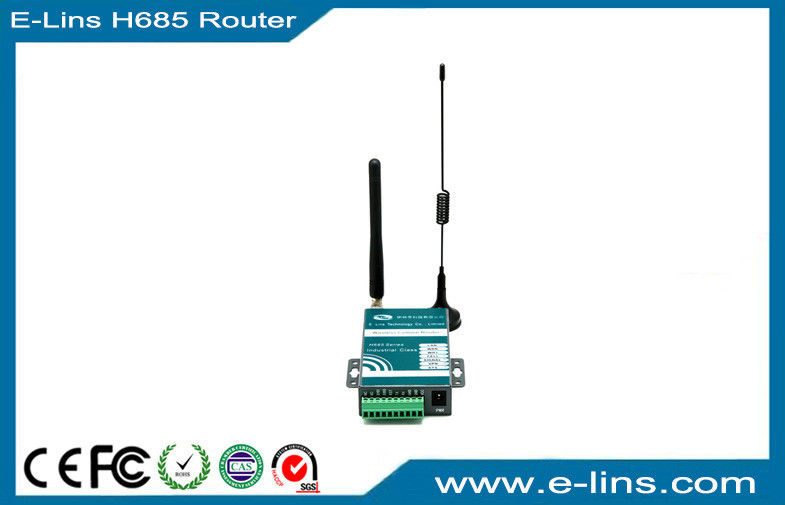

Description of HSPA+ Industrial 3G UMTS Router H685
H685p 3G Router is from H685 series family, which supports the latest IEEE802.11n as well as IEEE802.11b/g standards and provides wireless receiving and transmitting rate of up to 150 Mbps. External antenna connectors make it possible to attach desired antennas and to easily find the best signal location.
With smart size, H685p owns high speed wireless and Ethernet connections. It built-in high quality industrial LTE modem module, which can reach download rate of up to 100 or 150Mbps and upload rate up to 50Mbps.
H685 unlock UMTS router is ideal for people who would like to share their internet or private network, as it is not restricted by a cumbersome cable connection. With multi-WAN failover feature, the H685 router still supports internet distribution via a broadband cable, simply plug it in to the wan port, set the router to a correct mode and you‘re ready to browse.
Supported Cellular Network
3G UMTS WCDMA (HSUPA/HSDPA/HSPA/HSPA+);
2G GSM EDGE/GPRS;
Key features of H685 Industrial 3G UMTS Router
Specifications of Wireless Industrial 3G UMTS Router H685
|
Wireless Cellular Network and Bands |
|
|
Compatible Mobile Networks |
3G UMTS WCDMA (HSUPA/HSDPA/HSPA/HSPA+); 2G GSM EDGE/GPRS; |
|
Cellular Frequency |
UMTS/HSPA/HSUPA/HSPA/HSPA+ (WCDMA/FDD): 850/1900/2100 MHz, option for 850/900/1900/2100Mhz/1700Mhz/AWS;
Quad-band GSM/GPRS/EDGE 850/900/1800/1900Mhz; |
|
Bandwidth |
HSPA+(H): Downlink 21Mbps, Uplink 5.76Mbps; HSPA+(L): Downlink 14.4Mbps, Uplink 5.76Mbps; HSUPA: Downlink 7.2Mbps, Uplink 5.76Mbps; HSDPA: Downlink 7.2 Mbps, Uplink 384k bps; WCDMA/UMTS: Downlink/Uplink 384 kbps;
EDGE: Downlink 384 kbps, Uplink 118 kbps; GPRS: Downlink 108 kbps, Uplink 42.8 kbps;
Notes: the bandwidth is peak value. Real value depends on carrier network support. |
|
Network and Band Lock Feature (Option) |
Default is unlocked, can use this feature to lock |
|
Main Features and Performance |
|
|
USB Host |
No |
|
SMS/Voice |
SMS/Voice call to control router to be online, offline, reboot and status monitor; SMS is default feature, Voice is option |
|
GPS (Option) |
GPS feature |
|
DTU (Option) |
With DTU feature (Serial to Cellular Gateway feature, RS232 or RS485 port option). Details: Serial Baudrate: 300bps, 600bps, 1200bps, 2400bps, 4800bps, 9600bps, 19200bps, 38400bps, 57600bps, 115200bps; Serial Parity: none, even, odd; Serial Databits: 7, 8; Serial stopbits: 1, 2; Serial flow control: none, hardware, software; Mode: Server (up to 4 server centre, can OEM to be more), Client; Protocol: TCP, UDP ; Heart Beat : Yes; |
|
VPN |
PPTP, L2TP, IPSec, GRE, Tunnel (PPTP server, PPTP client, L2TP client, IPSec client, IPsec server) |
|
OpenWRT (Option) |
Optional |
|
VRRP (Option) |
Optional |
|
Route |
Static Route; Optional for Dynamic Route (BGP, BGPD, OSPF, Zebra, Rip); |
|
SNMP |
Support V1, V2. V3 |
|
VLAN |
Support multi-LAN IP address, support two IP address |
|
Wi-Fi |
Optional, 802.11b/g/n; 150Mbps default. 300Mbps optional. Can be used as AP and client; Frequency from 2.4GHz to 2.483GHz,Access Points, Routers and Gateway Server Applications, wireless up to 254 PC users |
|
Fail Over Redundancy (network Backup feature) |
Auto-dial feature, keep alive link; LCP, ICMP check; Built-in watch dog; Cellular (2G/3G/4G), RJ45 WAN (xDSL, DHCP, Fixed IP), WiFi client three line redundancy; Two H685 dual sim same network(Network1+ Network1); Two H685 dual sim two network (Network2+ Network 2); Two H685 dual sim dual mode network (WCDMA+CDMA2000, WCDMA+LTE, CDMA2000+LTE);
Cold Backup is default, Hot Backup is option; Hot Backup=WAN RJ45 and Cellular WAN are online at the same time. Data goes the main line, and switch to the other line. Hot Backup switch time is shorter than Cold Backup. |
|
POE |
POE for LAN/WAN RJ45 (use with POE adapter) |
|
Firmware update |
support firmware update locally or remotely (LAN, WiFi and OTA WAN) |
|
Syslog |
local and remote |
|
DDNS |
Yes |
|
DHCP Server |
Yes |
|
Others |
DNS proxy; Optimized EMC design; Real-time clock (NTP, support update with defined hours); WAN/LAN/Memory statistics; Local/remote profiles backup and retrieve; |
|
Management System |
Option |
|
Protocol |
|
|
Protocol support |
TCP, UDP, SMTP, POP, ICMP, FTP, PPP, PPPoE, DHCP, DDNS, DNS, WPS, DMZ, NAT, xDSL, NTP, QoS, etc. |
|
Security |
|
|
Firewall |
support 64/128 bits WEP, 802.1x, WPA, and WPA2 support WDS support WPA1/2 – PSK support WPA1/2 – 802.1x support EAP – TLS, TTLS, LEAP, PEAP TKIP, AES encryption support access with user name & password. support access control base WAN/LAN interface support access control base source IP address defense DOS attack, support SYN flooding, IP surfing, ping of Death, fragile, teardrop, land etc. support PAP & CHAP support IP filtering support content filtering support NAT/NAPT/Port forwarding/DMZ |
|
Advanced Firewall Features |
Stateful Packet Inspection (SPI) VPN Pass-through |
|
Media Access Control |
CSMA/CA with ACK |
|
Certifications |
REDIUS Client |
|
Interface |
|
|
LAN/WAN |
1X 10/100M LAN port (RJ45 interface) 1X 10/100M WAN port (RJ45 interface) (WAN RJ45 can convert into LAN RJ45 to get 2 LAN RJ45) WAN ports support Cell/Static IP/DHCP/PPPoE (on demand, keep alive, schedule, manual) |
|
Antenna |
2 antenna for Wi-Fi (detachable, SMA interface * 1, Internal *1) 3 antenna for Cellular and GPS (detachable, 50Ω SMA female interface), Cellular support diversity receiving (MIMO) option |
|
Led |
SYS*1 VPN*1 Cell Signal*1 Cell*1 WAN*1 LAN*1 WiFi*1 |
|
Button |
Reset |
|
Console |
1 console port |
|
Serial port |
RS232 or RS485 built-in terminal block interface |
|
IO Port (option) |
2 |
|
Management |
Easy to use and management; Web/Telnet/SSH/CLI, support remote management SMS; SNMP; RMS (Remote Management System) |
|
At command |
Supported |
|
UIM/SIM Card Slot |
Support 1.8V/3V UIM/SIM cards, one sim card slot |
|
DC Jack |
Two types of input jack for DC 2.5mm DC jack * 1 Terminal Block * 1 |
|
Power |
|
|
Power supply |
DC5V-50V , typical DC 9V1A or 12V1A, 12v CAR USE; DC5V~40V is the default, DC5V~50V is the option |
|
Current |
Idle: about 100mA@12VDC Communication: about 260mA@12VDC |
|
Software |
|
|
Device Management |
WEB interface (Internet Explorer v6 or Later; Mozilla Firefox v1.5 or Later, or other Java-enabled Browsers, Chome, Opera, Sarafi, etc.) |
|
Minimum System Requirements |
Windows, Linux, Mac OS, IOS, Symbian, Android, other OS support web browser; Network Interface Card |
|
Physical |
|
|
Operating Temperature |
Storage Temperature: -40 ~ 85°C Working Temperature: -30 ~ 75°C |
|
Humidity |
95% Maximum (Non-condensing) |
|
Dimensions |
PCBA: 96mm x 56mm x 14mm With case: 100mm x 60mm x 21mm |
|
Weight |
220g (not including the antenna) |
|
Color |
Metal Gray-Black, OEM is available |
|
Others |
|
|
Warranty |
1 Year default. Option extends to 5 years maximum. |
|
Package Contents |
H685 Series Wireless 3G UMTS Router Ethernet Cable Power Adapter Antenna Others depends on option features |
Applications
Typical Application Diagram
Frequently Asked Questions
Q. Is the E-Lins H685 3G Unlock UMTS Router a suitable solution to provide 3G Internet access for my office?
A. Whilst it can certainly provide a reliable 3G mobile broadband connection with wired and Wireless LAN connections, the H685 3G WCDMA Router will not have many of the office type functions such as allocating IP addresses based upon MAC address so we would recommend that you use a multi-functional 3G/4G Router like the H720 4G Router which combines many office type features including easy VPN configuration and load balancing with the M2M features such as ping reboot and SMS reboot to ensure a reliable 3G/4G mobile broadband internet connection with enhanced functionality and management.
Q. What antennas come with the E-Lins H685 3G Unlock UMTS Router?
A. The E-Lins H685 3G Unlock UMTS Router is supplied with both stick type and magnetic mount antennas for both the Cellular and WiFi connections - these 3G antennas are for indoor use only and the different types are included for your installation convenience. Many users will just use the stick type antennas except when installing the router in a cabinet or other enclosed unit where there may be signal interference in which case the magnetic mount antennas installed outside the enclosure may provide better signal reception.
Q. Can I use an external 3G antenna with my E-Lins H685 3G Unlock UMTS Router?
A. Yes - the E-Lins H685 3G unlock umts router has screw type SMA antenna connectors so can be used with an external antenna. The higher gain on these outdoor antennas is not to improve the download speeds, the extra gain is required to compensate for the additional signal loss down the length of the antenna cable.

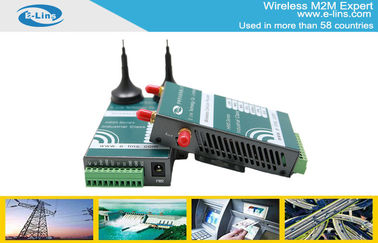

More Pictures of Wireless Industrial 3G UMTS Router H685
