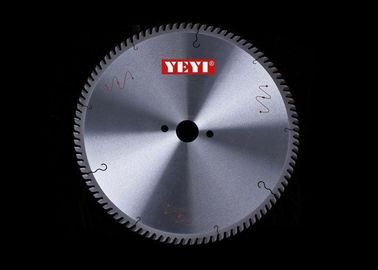

5/8 , 1" Bore TCT Circular Saw Blade For Cutting Chipboard / Fine Cut Circular Saw Blade

5/8 , 1" Bore TCT Circular Saw Blade For Cutting Chipboard / Fine Cut Circular Saw Blade

    • 5/8 , 1"  Bore TCT Circular Saw Blade For Cutting Chipboard / Fine Cut Circular Saw Blade
    • 5/8 , 1"  Bore TCT Circular Saw Blade For Cutting Chipboard / Fine Cut Circular Saw Blade
  • 5/8 , 1"  Bore TCT Circular Saw Blade For Cutting Chipboard / Fine Cut Circular Saw Blade

    Product Details:

    Place of Origin: China
    Brand Name: YEYI
    Model Number: YEYI-300x3.2x96T

    Payment & Shipping Terms:

    Minimum Order Quantity: 20 PCS
    Price: Negotiable
    Packaging Details: Plastic pipe+ plastic bag+ paper box+ carton
    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    Steel Plate: Imported Steel Core Or High Quality Materials With Good Balance Tips: High Quality Carbide Tips Or Imported TCT Tips
    Equipments: Auto Welding And Auto Grinding Machines Quality: Fast Cutting And Extra Long Cutting Life

    Custom SKS Japanese Steel and Ceratizit Tips Sharpening Metal Panel TCT Circular Saw Blade 300mm with quality carbide tips





    Application:

    • Ripping cut softwood, hardwood along the grain and occasional crosscut, also suitable for Cutting Plywood And Chipboard.
    • Bore: Available all size and kind upon request, such as 5/8", 1", 20mm, 22.23mm, 25mm, 30mm, 35mm, etc.
    • Teeth: Teeth number could be adjusted upon request.
    • Hook angle: could be adjusted upon request



    Specifications:



    300mm x 96T TCT Circular Saw Blade For Cutting Chipboard / Fine Cut Circular Saw Blade



    300x3.2x2.2x30x96T



    Other sizes are as below:



    CODE Diameter(mm) Kerf,B/b Teeth Number
    YY 200 200 2.8/1.8 16,20,24
    YY 230 230 2.8/1.8 16,20,24
    YY 235 235 2.8/1.8 16,20,24
    YY 250 250 3.0/2.0 16,18,24,28,30
    YY 270 270 3.0/2.0 16,18,24,28,30
    YY 300 300 3.2/2.2 20,24,28,30,32,36
    YY 315 315 3.2/2.2 20,24,28,30,32,36
    YY 330 330 3.2/2.2 24,28,30,32,36,40,42
    YY 350 350 3.2/2.2 24,28,30,32,36,40,42,48
    YY 400 400 3.5/2.5 28,30,32,34,36,40,48,60
    YY 450 450 3.5/2.5 32,34,36,42,54,66
    YY 500 500 3.5/2.5 32,36,40,44,48,60,64,72
    YY 550 550 3.8/2.8 32,40,44,48,50,60,80
    YY 600 600 4.0/3.0 36,40,44,48,54,56,72,90,96
    YY 650 650 4.0/3.0 40,48,52,56,72,90,96,108
    YY 700 700 4.2/3.2 44,48,56,60,84,90,108,116
    YY 750 750 4.6/3.6 48,54,56,60,84,90
    YY 800 800 5.0/4.0 50,54,60,72,84,96
    YY 850 850 5.0/4.0 50,54,60,72,84,102
    YY 900 900 6.0/4.5 50,54,60,90,96,108
    YY 950 950 6.0/4.5 60,80,90,96,114
    YY 1000 1000 7.0/5.5 80,90,100,120
    YY 1100 1100 7.0/5.5 90,100,110,130
    YY 1200 1200 7.0/5.5 100,120,140
    REMARK Other specification &sizes are available upon request





    Advantages:

    • Using SKS Japanese steel (imported), carbide tips from Ceratizit (imported) and grinded by ENOKIDA machine (imported from Japan) and Vollmer (imported from Germany)
    • Accuracy cutting capability helps you saving more materials and more time.
    • T.C.T saw blade can cut wood based panel and other panels.
    • Long-time operation could be OK if you use our T.C.T saw blade.
    • Slot filled with the resin materials can reduce the heat while cutting and make sure more stable performance.
