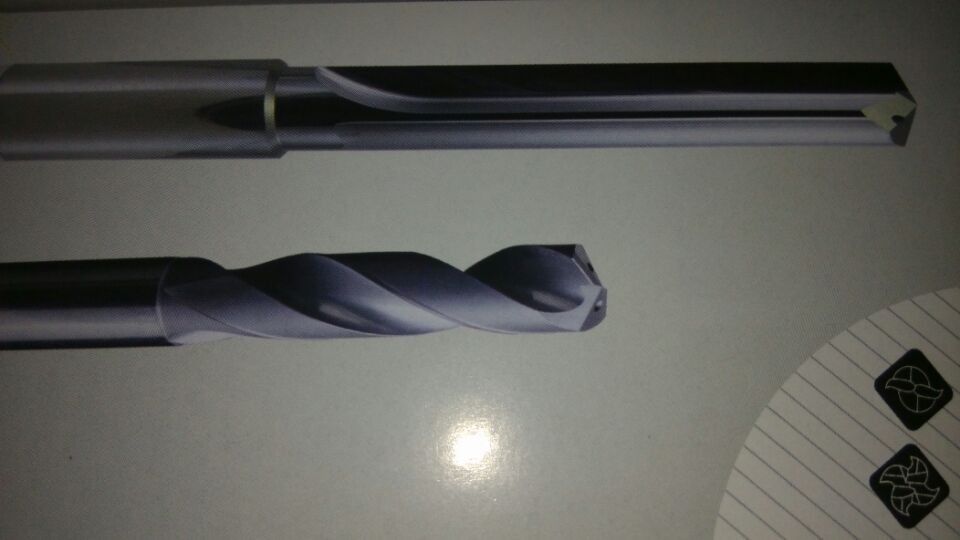

CNC Carbide Solid Carbide Drills High Performance drill bits for Stainless Steel

CNC Carbide Solid Carbide Drills High Performance drill bits for Stainless Steel

  • CNC Carbide Solid Carbide Drills High Performance drill bits for Stainless Steel
CNC Carbide Solid Carbide Drills High Performance drill bits for Stainless Steel
Product Details:
Place of Origin: China
Brand Name: INMIND
Certification: SGS Factory Certificater
Model Number: Inner Cooling type 3mm to 20mm
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs per specification wthin 12mm
Price: Negotiable
Packaging Details: 1 piece packing
Delivery Time: For Samples: 3-5 days For Batch:10 to 15 days.
Payment Terms: T/T 100% Advinced,Paypal,Western Union
Supply Ability: 50000pcs/month
Contact Now
Detailed Product Description
Application: Stainless Steel, Slotting, Milling Coating: Tialn Coated
HRC: HRC50 Material: Solid Carbide, Carbide
Processing Mode: CNC Product Name: Solid Carbide Drills
Type: Long Shank Helix Angle: 35, 25
High Light:

carbide drill bits

,

carbide tipped drill bits



CNC Carbide Solid Carbide Drills High Performance drill bits for Stainless Steel,Cast Iron,Inner Cooling





Quick Detail:



0.6-0.8um Mirco grain size solid carbide rod

TIALN Coating (Black),TISIALN(Copper)

Made by 5 AXIS CNC grinder

Checked by Zoller Inspection Equipment

Workpiece upto HRC50

1 piece packing.

Inner Cooling  Type

Helix Angle:25°





Description:



Micro Grain Szie 0.6-0.8um, Wc carbide rod with high tenacity,with high quality TiAlN coating,getting long tool life,high Feed Drills,reduce time of changing cutters,improving efficency of machine,saving time of making products.Suggest to process iron and stainless steel upto HRC50,Middle-low speed.

Carbide Rod:Wc:90%,Co:10%,TRS:3800N/mm2, Grain Size:0.6-0.8um





Applications:



Fit for Drilling quenching and tempered steel.stainless steel.nickel alloy and Titanium alloy,Cast iron,enhanced composited material





Specifications:



Cutting

Flute Length

Shank

A.O.L

Drilling Angle

d

l

D

L

A

3

16

6

46

135°-150°

3.2

18

6

49

135°-150°

3.5

20

6

52

135°-150°

4

22

6

55

135°-150°

4.2

22

6

55

135°-150°

4.5

24

6

58

135°-150°

5

26

6

62

135°-150°

5.2

26

6

62

135°-150°

5.5

28

6

66

135°-150°

5.8

28

6

66

135°-150°

6

28

6

66

135°-150°

6.5

31

8

70

135°-150°

6.8

34

8

74

135°-150°

7

34

8

74

135°-150°

7.5

34

8

74

135°-150°

8

37

8

79

135°-150°

8.5

37

10

79

135°-150°

9

40

10

84

135°-150°

9.5

40

10

84

135°-150°

10

43

10

89

135°-150°

10.2

43

12

89

135°-150°

10.5

43

12

89

135°-150°

11

47

12

95

135°-150°

12

51

12

102

135°-150°

12.5

51

14

102

135°-150°

13

51

14

102

135°-150°

13.5

54

14

107

135°-150°

14

54

14

107

135°-150°

14.5

56

16

111

135°-150°

15

56

16

111

135°-150°

15.5

58

16

115

135°-150°

16

58

18

115

135°-150°

17

60

18

119

135°-150°

18

62

18

123

135°-150°

19

64

20

127

135°-150°

20

66

20

131

135°-150°





Competitive Advantage:



Good Quality,Competitive price.Help the agent to get the get more large market

CNC Carbide Solid Carbide Drills High Performance drill bits for Stainless Steel 0
