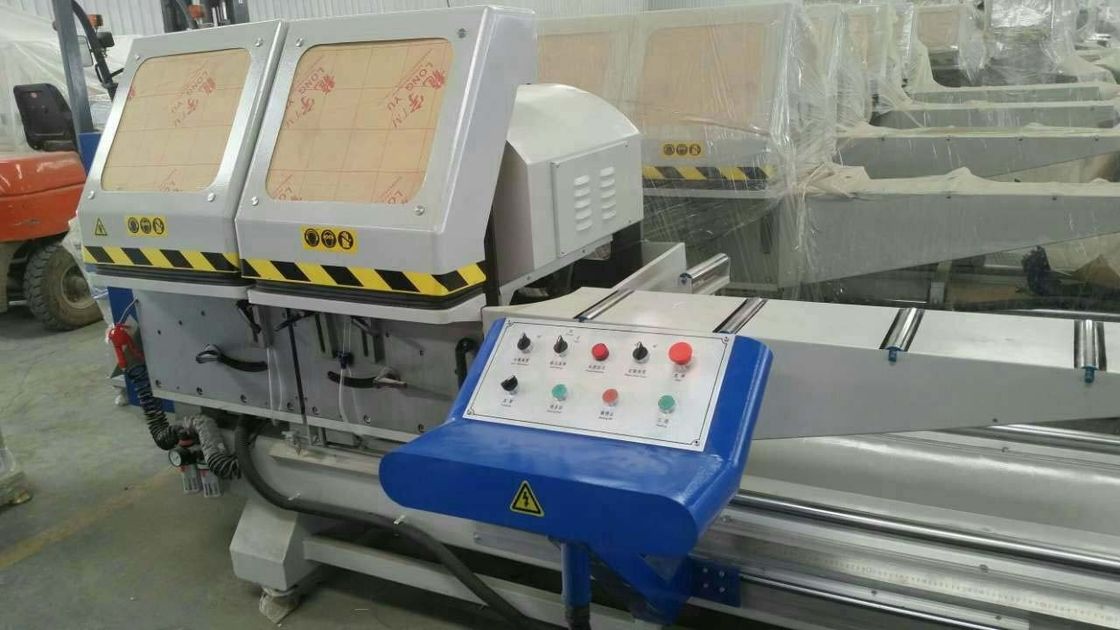

MJ4200A double head precision Aluminum cutting saw

MJ4200A double head precision Aluminum cutting saw

    • MJ4200A double head precision Aluminum cutting saw
  • MJ4200A double head precision Aluminum cutting saw

    Product Details:

    Place of Origin: China
    Brand Name: Easwon
    Certification: ISO, CE
    Model Number: MJ3700A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD5000 - USD9000
    Packaging Details: Plastic film
    Delivery Time: within 15 days
    Payment Terms: T/T or L/C
    Supply Ability: 500 set per month
    Contact Now
    Detailed Product Description

    MJ4200A Aluminum saw is used in aluminum door&window and curtain wall profile cutting.

    Power supply

    380V 50Hz

    Cutting motor power

    2 x 2.2Kw

    Motor rotary speed

    2800r/min

    Operation air pressure

    0.6-0.8Mpa

    Cutting length

    Max 4200mm  Min 370mm



    Cutting width

    Max135mm

    Cutting height

    90º: Max 300mm  45º:Max 200mm

    Cutting angle

    90º  45º

    Cutting speed steeples speed regulation

    0-3m/min

    Blade specification(mm)

    Φ300xΦ30

    Repeated locating length tolerance

    ±0.2mm

    Cutting profile surface plane

    ≤0.10mm

    Cutting angle tolerance

    ±5'

    Cutting profile surface roughness

    Ra12.5µm

    Contour dimension

    5500mm*1750mm*1950mm

    Weight

    1800kgs

    MJ4200A double head precision Aluminum cutting saw 0
