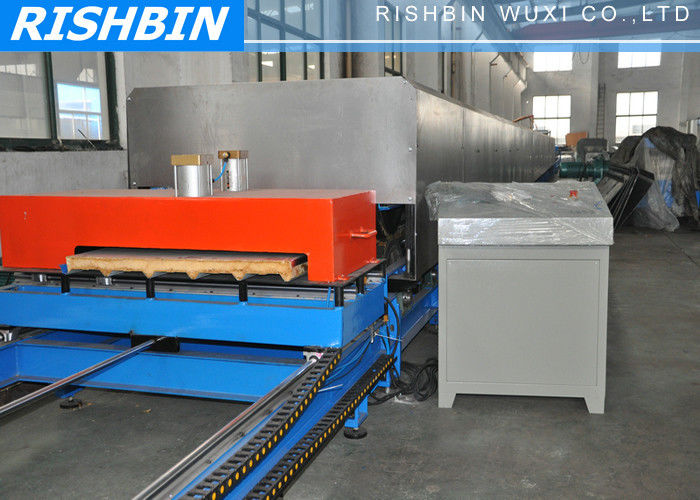

Prefab House PU Sandwich Panel Machine

Prefab House PU Sandwich Panel Machine

    • Prefab House PU Sandwich Panel Machine
    • Prefab House PU Sandwich Panel Machine
  • Prefab House PU Sandwich Panel Machine

    Product Details:

    Place of Origin: China
    Brand Name: RISHBIN
    Certification: CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Contact Us
    Packaging Details: Standard packing
    Delivery Time: 100 working days
    Payment Terms: T/T, L/C
    Supply Ability: 50 Sets Per Year
    Contact Now
    Detailed Product Description
    Thickness Of Steel Plate: 0.35-0.6mm PU Foam Density:: 38-42kg/m3
    Thickness Of Galvanizes Color Steel Coil: 0.4mm~0.75mm PU Foam Thickness: 25mm - 100mm
    Power Of Production: ≥ 22KW Controlling System: Full-frequency PLC
    High Light:

    continuous pu sandwich panel production line

    ,

    sandwich panel machinery

    Prefab House Color Steel PU Sandwich Panel Machine Fire resistant



    Quick Details

    Panel Material:
    Metal
    Type:
    PU cement sandwich panel,machine for PU cement sandwich panel, light P
    Color:
    red, white and blue are common, or costomization
    Usage:
    Construction Insulation
    Features:
    1.Fire resistant; 2.Heat Insulating; 3.Light Weight
    Commodity:
    Color Steel PU sandwich panel
    Category:
    Roof panel,wall panel,cold plate,etc
    Outer Layer Material::
    Color Steel/Aluminum/Non Woven Fabric
    Core material:
    PU/Polyurethane
    Thickness of colorful steel plates:
    0.3mm-0.7mm
    Thickness of PU core::
    20mm, 30mm, 40mm, 50mm, 60mm,75mm, 100mm, 150mm, 200mm, 250mm, 300mm
    PU foam density:
    38-42kg/m3




    Specifications

    Lenghth: customization
    Width:customization
    Thickness of steel plate: 0.35-0.6mm
    Thickness of Core Material: 20mm, 30mm, 40mm, 50mm, 60mm,75mm,
                                                100mm,150mm, 200mm, 250mm, 300mm
    Color: White grey, Sliver, Sea Blue, Red, etc


    Features:


    1. Fire resistant;
    2. Heat Insulating;
    3. Light Weight
    4. easy installation;
    5. Environment-protecting;
    6. nenergy-sving;
    7. more economic.


    Specification Detail


    Item  Description
    Two sets of un-coiler It is Automatic and hydraulic, can be used to uncoil steel coil which is maximal 1300mm's wide, no more than 8 ton's weighty and steel coiler's inner diameter is about 500mm.
    Three sets of roll forming machine 1. Function: Roll forming for the profiles of PU panel
    2. Use the welding H-beam, motor driver, sprocket chain driving
    3.Technical data: Material of roller NO.45forged steel, with digital controlled procession,plated with hard chrome on surface of forming rollers
    PU sandwich foaming line 1. Two sets of conveyor rack: up conveyor is about 24m, down conveyor is about 30m.They lead the steel sheet from the roll forming machine to preheating room and to foaming,to cutting.
    2. One preheating room: It is built by heat-insulation material, and it could heat up the steel sheet to 25-38 by heater.
    3. One set of PU two component Liquid mixing and injecting section for foaming : it adopt Chinese high pressure pump. It have the temperature control system and material-level monitoring system. The tank of the material is about 150L. Two tanks.
    4. Foaming and double rubber device include motor driver system to make panel.
    5. The width of belt board is 1250mm, the range of adjusting distance between upper and lower frame belt board: min 25mm, max 200mm. And the range of adjusting thickness of sandwich panel :30mm,50mm,100mm.(30-50 for celling , 50-100 for wall)
    Panel automatically cutting system 1. Cutting machine can move 2500mm longitudinally along product line;fly saw of the cutting machine can move transversely 1900mm, Cutting machine moves longitudinally and transversely along the slide way.
    2. Cutting machine adopts one-side blade band saw manner, cutting and revolving after cutting. The cutting saw can revolve, so cutting in two directions is realizable.
    3. There is panel tight-pressing system (pneumatic) in the cutting machine.
    4. There is location limiter to limit longitudinal and transverse motion of cutting machine.
    Electric control system 1. The control system adopt the touch screen , PLC , module control and transducer. The control system adopt Panasonic(JAPAN) product.
    2. There one control platforms and electric trunk by which operating and controlling the electric motors and all motions (including hydraulic and pneumatic) in the product line.
    3. Intercalated appropriate amount of portable switch on the product line, so manual operation get convenient.
    4. Alarm and emergency stop system should be installed in the product line in case accident happens.




    Product Description


    Polyurethane sandwich panel ( exterior PU sandwich panel  ) is composed of two layers of pre painted steel sheets with the hard forms of polyurethane as core, which features fireproof materials. It is suitable for the various roofs and walls referring to the large-size factory buildings, storages, exhibition halls, gymnasiums, freezing stores, purification workshops etc, which features temperature-keeping, heat insulation, weight-bearing, weatherproof with the rich color and good appearance.
