35kw Ceiling Polyurethane Sandwich Panel Production Line With Aluminum Foil Facing

35kw Ceiling Polyurethane Sandwich Panel Production Line With Aluminum Foil Facing

    • 35kw Ceiling Polyurethane Sandwich Panel Production Line With Aluminum Foil Facing
    • 35kw Ceiling Polyurethane Sandwich Panel Production Line With Aluminum Foil Facing
    • 35kw Ceiling Polyurethane Sandwich Panel Production Line With Aluminum Foil Facing
    • 35kw Ceiling Polyurethane Sandwich Panel Production Line With Aluminum Foil Facing
  • 35kw Ceiling Polyurethane Sandwich Panel Production Line With Aluminum Foil Facing

    Product Details:

    Place of Origin: CHINA
    Brand Name: ZOOY
    Certification: CE
    Model Number: ZO-PU600

    Payment & Shipping Terms:

    Minimum Order Quantity: 1Set
    Price: USD150000$-400000$
    Packaging Details: Standard packing
    Delivery Time: 100days after get 30% down payment
    Payment Terms: 40% T/T in advance, 60% T/T before shipment
    Supply Ability: 10Sets Per Year
    Contact Now
    Detailed Product Description
    Feature: PU Sandwich Panel Production Line Control System: Japan Panasonic PLC Control
    Forming Speed: 4-20m/min Material Thickness: 25-100mm
    Material: Galvanized Sheet. Glavanized Steel Warranty: 1 Year
    High Light:

    pu sandwich panel production line

    ,

    polyurethane sandwich panel production line





    Ceiling PU Sandwich Panels Production Line with Aluminum Foil Facing, 35kw Main Power





    Description



    1.This production line is a kind of specialized equipment for producing sandwich panel with the middle layer of anti-combustion polyurethane and with roof(OR wall/ceiling) forming panel as the top face layer, aluminum foil as the bottom face layer. The sandwich panel is 18 mm in thickness, max1000mm in width, length determined by the customer. The sandwich panel is mainly used as keeping warm for wall and roof . Different insulating panels with other soft facing layers could also be produced on the line.



    2.The operation principle of this line is as follows: raw materials of rigid-foam are delivered into the mixing head through the metering pump on the injection machine and then injected onto the bottom facing sheet going to conveyors along with the top superficial sheet. Between the upper and lower conveyors, the liquid materials are hardened into shape,after all for above actions are completed, by an automatic tracking cutting mechanism, cut into segments according to the preset length.







    Main Specifications


    Coil Material

    Thickness

    0.3-0.8mm

    Coil width

    Depend on customer’s requires

    Yield Strength

    250-550Mpa

    Material

    Color steel,  galvanized steel

    Decoiler / Uncoiler

    Coil Width

    Max. 1250mm

    I.D

    510-610mm

    O.D

    Max. 1300mm

    Capability

    Max. 8Tons

    Decoiler type

    Manual / Hydraulic/Automatic

    Feeding & guiding

    Pinch feeding

    1 Units ( 2 Rollers )

    guiding

    2 Rollers

    Cutting device

    Cutting motion

    Cutting adopts tracking cutting

     and saw (or fly saw) of the cutting machine can move transversely 1500mm, Cutting machine moves longitudinally and transversely along the slide way

    Cutting machine adopts one-side blade band saw manner, cutting and revolving after cutting. The cutting saw can revolve, so cutting in two directions is realizable

    Length Measuring

     BY encoder

    Cutting Tolerance

    +/-1.5mm(per 3m)

    PU sandwich panel

    thickness

    15-40

    Standard Sandwich Panel Size

    max1100mm x 4000mm(Width x Length)

    Linear Speed of production

    2-5 m/min

    Reciprocating times of injection head per minute

    <60

    Control system

    Production type: totally continuous production with PLC controlling

    Roll Forming Machine

    Forming Stations

    ABOUT 18-24steps



    Roller material

    45# steel, heat treatment

    Diameter of shaft

    75mm

    Shaft material

    High grade 45# steel

    Drive type

    By chains

    Forming speed

    0-15m/min

    Main power

    7.5kw




    Electrical control

    PLC

    PANASONIC Brand or Custom-made

    Inverter

    YASKAWA Brand or Custom-made

    Touch screen

    MCGS Brand or Custom-made

    Operation type

    Touch screen & Button

    Runout Table

    Table type

    Simple non-power type

    Function

    To support the finished panels

    TOTAL WEIGHT



    APRRO 20TONS




    The type pursues board (basis on customer's requires to design)

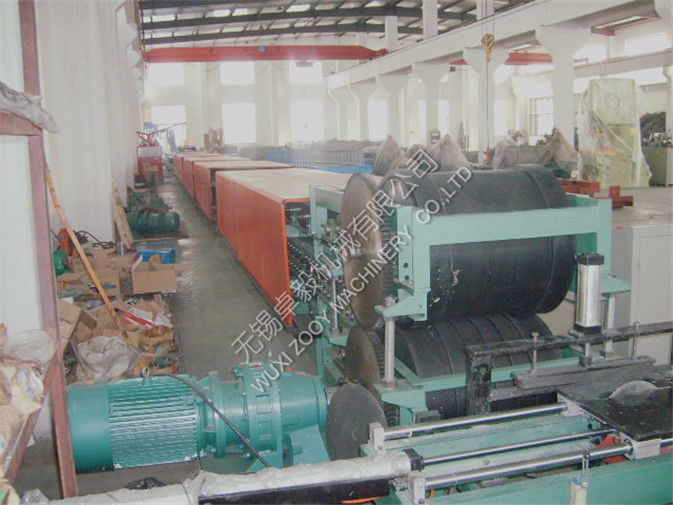

    35kw Ceiling Polyurethane Sandwich Panel Production Line With Aluminum Foil Facing 0



    35kw Ceiling Polyurethane Sandwich Panel Production Line With Aluminum Foil Facing 1





    We also produce other Roll forming machines as follow:



    • Purlin Roll Forming Machine
    • Upright post roll formers
    • Stud and track forming machines
    • T-bar forming machines
    • Guardrail roll forming machines
    • Cable tray roll forming machines
    • Roller shutter manufacturing lines
    • PU sandwich panel production line
    • Steel Silo Roll Forming Machine
    • Gutter machines and downspout machines
    • Metal roofing /decking/cladding roll forming machines
    • Roof tile roll forming machines
    • Door & window frame roll forming machines
    • Guide rail roll forming machines



    Other Parts of C Z Roll Forming Machine



    35kw Ceiling Polyurethane Sandwich Panel Production Line With Aluminum Foil Facing 2







    Payment Terms


    Procuments Aspect  Detailed Rules
    Payment Terms

    The payment shall be made by L/C or T/T(30% down payment and the balance for 70%
    shall be paid before container loading at the seller`s factory when the buyer confirms the quality is up
    to the contracted requirements

    Delivery Time

    30-65 working days.

    Warranty

    1 year warranty from date of shippment.

    Packing

    Suitable for sea transportation.Usually one High precision Grape stake roller formed facility loads
    in one container.Depends on the machine's size and weight
