11 Rows PU Foam Door Frame Roll Forming Machine With Flying Saw Tracking Cut

11 Rows PU Foam Door Frame Roll Forming Machine With Flying Saw Tracking Cut

11 Rows PU Foam Door Frame Roll Forming Machine With Flying Saw Tracking Cut

Product Details:

Place of Origin: China
Brand Name: RISHBIN
Certification: CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 60 working days
Payment Terms: T/T, L/C
Supply Ability: 20 Sets Per Year
Contact Now
Detailed Product Description
Rollers For Forming: 16 Rows Thickness Of The Plate: 0.5-1.2mm
Productivity: 12m/min Material Of The Cutting Blade: Cr12
Hydraulic Cutting Power: 3kw Main Motor Power:: 5.5kw



11 Rows PU Foam Door Frame Roll Forming Machine With Flying Saw Tracking Cut





Main parameter of door frame roll forming machine





1

Suitable to process

Color steel plate

2

Width of the plate

As customer need

3

Thickness of the plate

0.5-1.2mm

4

De-coiler

Manual one, can load 5 tons raw material

5

Rollers for forming

12-16 rows

6

Diameter of the roller

Φ52mm

7

Rolling material

Carbon Steel 45#

8

Main motor power

4kw

9

Productivity

8-12m/min

10

Cutting method

Hydraulic mould cutting

11

Material of the cutting blade

Cr12

12

Hydraulic cutting power

3kw

13

Processing precision

Within 1.00mm

14

Control system

Delta PLC control

15

Side panel of machine

14mm

16

Main structure of the machine

300 H steel

17

Weight

About 3.6T

18

Dimensions

6.5*1.0*1.5m

19

Voltage

380V 50Hz 3phases(changeable as needs)





Automatic inner tight decoiler



 a. coil inner diameter: 450mm-550mm



 b. maximum width of coiling: 600mm



 c. maximum weight of loading: 2500kg





Main forming machine



 a. number of forming steps: 11rows



 b. material of shaft   45# steel . Outer diameter:  60mm



 c. main motor power: 5.5kw



 d.  The speed of forming: 0-15m/min





Hydraulic cutter



 a. material of blade:Cr12 mould steel with quenched treatment 60-62



 b. cutting system :adopt advanced hydraulic drive, after forming automatic cut, no distort, no wasting ,            high safe factor.(tracking cutting)





The electrical control system



 a. The Brand of display: DELTA



 b. The main computer (PLC): DELTA DVP14





Hydraulic system



 a. Adopting advanced hydraulic system of Tai Wan



 b. Power: 3kw





The equipments coating , package



 a. the coating adopt international general shade-guide



 b. The package :simple waterproof package.

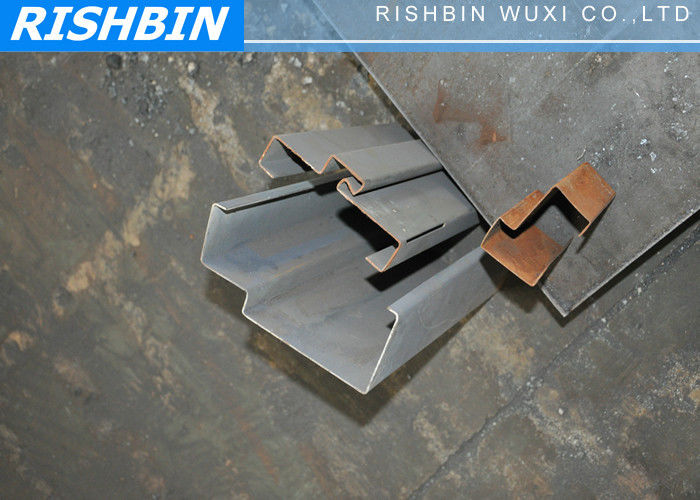

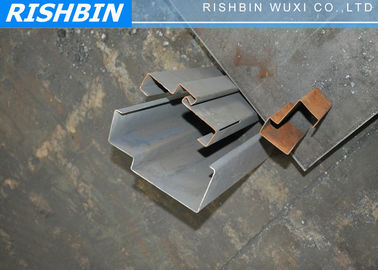

Applications



Door Frame Machine can rollform different kinds metal door or window frames, reinforced, fire stop doors,

etc. The punching also can be designed according to your needs. After roll formed by this roll forming

machine, the surface will be very smooth and beautiful without any scratch on surface. We can design the

machine according to your specification and profile drawing.
