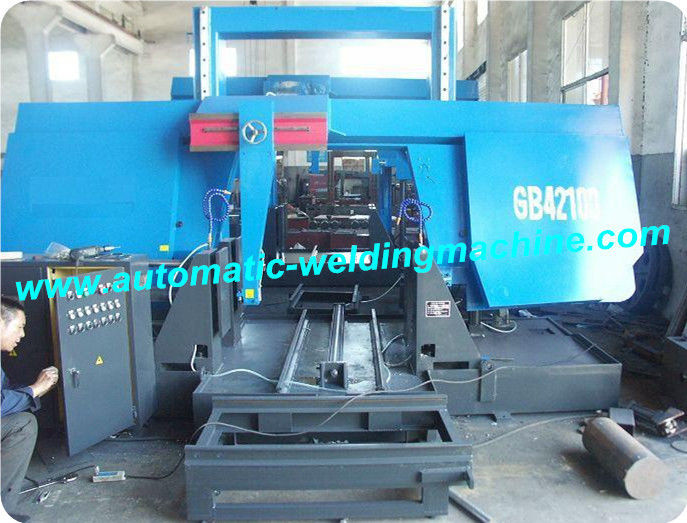

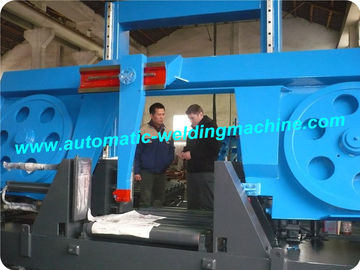

Gantry type automatic CNC control horizontal metal band sawing machine

Gantry type automatic CNC control horizontal metal band sawing machine

    • Gantry type automatic CNC control horizontal metal band sawing machine
    • Gantry type automatic CNC control horizontal metal band sawing machine
  • Gantry type automatic CNC control horizontal metal band sawing machine

    Product Details:

    Place of Origin: CHINA
    Brand Name: Friendship Machinery
    Certification: CE, ISO9001
    Model Number: DJX Series

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Wooden pallet and plastic paper
    Delivery Time: 30 Working days after down payment
    Payment Terms: TT or LC
    Supply Ability: 10 sets per production period
    Contact Now
    Detailed Product Description

    CNC Double Column Horizontal Metal Band Sawing Machine



    ● Maximum sawing range: rectangular tube 800*800 mm, circular tube Φ800mm

    ● Maximum feeding length: 1500mm per time

    ● Cutting liner speed: 5 levels, 20/ 40/ 50/ 70/ 80 (belt, step speed changing)

    ● Cutting speed adjust method: 18-60m/min (hydraulic, stepless speed regulation)

    ● Saw blade size: 1.6*67*8420mm

    ● Saw blade tension method: manual lead screw tension

    ● Work feeding clamp method: double vise hydraulic clamp (hydraulic vise)

    ● Working table height: 615mm

    ● Control precision: ≤0.2/100mm

    ● Common sawing precision: ±0.20mm

    ● Main motor: 7.0Kw

    ● Hydraulic motor: 1.5Kw

    ● Saw blade cooling method: pump automatic recycle (cutting fluid)

    ● Saw blade cleaning: wire brush

    ● Machine dimension: 4300*2850*3200mm

    ● Gross weight: 3500Kg



    Gantry type automatic CNC control horizontal metal band sawing machine Control screen
