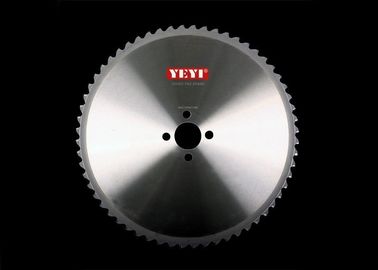

Custom Precision Metal Cutting Saw Blades , Radial Arm Saw Blades With Cermet tip

Custom Precision Metal Cutting Saw Blades , Radial Arm Saw Blades With Cermet tip

    • Custom Precision Metal Cutting Saw Blades ,  Radial Arm Saw Blades With  Cermet tip
    • Custom Precision Metal Cutting Saw Blades ,  Radial Arm Saw Blades With  Cermet tip
  • Custom Precision Metal Cutting Saw Blades ,  Radial Arm Saw Blades With  Cermet tip

    Product Details:

    Place of Origin: China
    Brand Name: YEYI
    Model Number: YEYI-420x2.7x2.25x60T

    Payment & Shipping Terms:

    Minimum Order Quantity: 20 PCS
    Price: Negotiable
    Packaging Details: Plastic pipe+ plastic bag+ paper box+ carton
    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    Steel Plate: Imported Steel Plate Or High Quality Materials With Good Balance Tips: HIgh Quality Carbide Tips Or Imported Ceratizit Tips
    Equipments: Auto Welding And Auto Grinding Machines Quality: Fast Cutting And Extra Long Cutting Life

    420mm cold Metal Cutting Saw Blades with Cermet tip , Special Coating With Long Cutting Life



    Specifications:

    Custom Precision Metal Cutting Saw Blades,  Cold Saw Blades With  Cermet tips 420mm



    420x2.7x2.25x60T



    Product details:

    • Edge (tip) material: Cermet. Cermet tip imported from Japan, we’re using Mitsubishi or Sanvik.
    • Steel body uses Japanese SKS steel: SKS51 or SKS5.
    • Flattening and Surface grinding ensure the plate that is distortion free and have uniform thickness.
    • Unique design for the angle of tip and unique shape of tip for metal cutting.
    • Unique Heat treatment for the plates, which make sure the plates in good flatness.
    • Special brazing technology makes sure the strength of the teeth so as to prevent carbide breakage.
    • High dimensional accuracy makes sure the operation more smoothly.
    • Unique tension treatment could keep the most stable performance while cutting.
    • Special coating for metal cutting is applied.
    • Suitable for most of metal cutting machines in the world such as Nishijia, Amada, Anderson, Tsune, Mega, Fongho,Soco,Everising, I.T.E.C. etc.
    • Manufacturing with Japanese technology and design in Japan. Remaining cool while cutting and longer the using life. It is Throw-away type and non-resharpenable.



    Diameter

    Kerf

    Plate

    Teeth number

    Teeth type

    Hook Angle

    Recommend RPM

    Machine

    Cutting

    material

    420mm

    2.7mm

    2.25mm

    60

    Cermet tip



    below 300

    NISHIJIAMA,TSUNE,

    DELTA,ANDERSON,

    I.T.E.C,AMADA,MEGA,

    SOCO,FONGHO,

    Webo,and other suitable metal cutting machine.

    Steel pipe or bar





    Descriptions:

    A cold saw is a sawing machine that uses a circular saw blade to cut metal. The name "cold saw" comes from the cutting process they employ. These sawing machines transfer the heat generated by cutting to the chips created by the saw blade. Therefore, the blade and material being cut remain cold, unlike an abrasive saw, which abrades the metal and creates a great deal of heat in the metal and cutting blade.



    The new YEYI cermet tipped metal cutting cold saw blade leads the great job for the metal cutting work. Saw blade body use SKS5 or SKS51 steel which is imported from Japan. And with YEYI unique tension technology, the saw blade has a stable and quiet response when cutting.



    Unique shape and angle of cermet tip are quite different form the HSS saw blade. Metal cutting could be much easier while using YEYI metal cutting cold saw blade.



    The tip using is Cermet tip which is imported from Japan. What is cermet tip?



    The cermet is a composite material composed of ceramic (cer) and metallic (met) materials. The cermet is ideally designed to have the optimal properties of both ceramic, such as high temperature resistance and hardness, and those of a metal, such as the ability to undergo plastic deformation. The metal is used as a binder for an oxide, boride, or carbide. Generally, the metallic elements used are nickel, molybdenum, and cobalt. Depending on the physical structure of the material, cermets can also be metal matrix composites, but cermets are usually less than 20% metal by volume.



    Cold saw using the cermet tip in order to keep the stability of metal cutting and keep the saw blade cool all the time. So it can increase the cuttinglife.



    We use imported brazing machine for brazing the tip and use the Japanese grinding machine for grinding the saw blade teeth.



    Application:

    Suitable cutting machine: NISHIJIMA, TSUNE, AMADA, ANDERSON, I.T.E.C, FONGHO, SOCO,EVERSIING, MEGA, DELTA Webo and other metal cutting machines.



    Cutting materials: steel bar or pipe.



    Advantage:

    • We use Japanese saw blade steel. Body’s quality is much better than other companies.
    • In order to keep the saw blade working stable, every saw blade has the tension treatment by hands.
    • Imported cermet tip (sandivk and Mitsubishi) keeps the excellent cutting performance.
    • All the welding machines and grinding machines are imported from Japan.
    • In order to get the best cutting results, our Japanese technical staff would modify the design after getting the customers’ feedback.


    Cutting material recommend:

    Diameter

    Teeth

    Recommend diameter of material

    420mm

    60

    45~110mm





    Machines recommend:



    Diameter Machine manufacturer Machine model
    420mm Kasto(Wagner) SPEEDC14
    420mm Behringer-Eisele HCS130



    *The list haven't show the all machines. All the metal cutting cold saw machines can use our saw blade.





    Benefit:

    Different from band saw and metal saw (hss). The cold saw blade will give you lots of benefit.

    One cold saw mahine can replaces three band saws or metal sawmachines.

    1. Less space

    2. Less labor

    3. Less environmental pollution

    4. Less captial outlay

    5. lower cost per cut

    6. Saving the cutting time.





    Custom Precision Metal Cutting Saw Blades ,  Radial Arm Saw Blades With  Cermet tip
